StarTech.com ST222HDBT AV extender

StarTech.com Dual HDMI over CAT6 Extender - 1080p


Brand
STARTECH
Product code
ST222HDBT
SKU
UZ3INQSO9QI5U
EAN/GTIN
0065030878470
  • Extend two separate HDMI sources to their own HDMI 1080p displays with one CAT6 cable
  • Support for bi-directional IR signals, for remote control from either end of your extension
  • Extend two 1080p source signals up to 90 m (295 ft.)
  • Includes mounting brackets
€538.31 (Inc. VAT)
Sold Out
(Delivery 2-4 working days)

Product Info

Extend two HDMI signals to distances up to 295 ft. (90m) over a single CAT5e or CAT6 cableThis HDMI® over CAT6 extender lets you extend two HDMI sources up to 90 m (295 ft.), to individual HDMI displays over a single CAT6 cable. Designed for a simple, tidy setup, the extender also supports bi-directional IR control for added flexibility.Dual source supportReduce the need for additional equipment and cables, by extending two HDMI connections with a single CAT6 cable. Running only one cable can save cost on installation or enable you to extend two HDMI signals using an existing cable run. You can also use this 1080p HDMI extender to run separate video signals to the same display, for mission critical digital signage applications where if one signal goes down, the other can easily be swapped in it's place.Bi-directional controlWith bi-directional IR control, you can control your devices from either end of the extension, such as a Blu-ray™ player and laptop on one end and two TV displays on the other. The extender includes an IR kit with discreet dongles that easily connect to both your transmitter and receiver, enabling you to remotely control any device you choose from either side of your extension.Simplified setupThe simplicity of one-cable setup avoids the hassle of running multiple cables, while also reducing potential failure points. The included mounting hardware offers professional mounting options ideal for public spaces such as offices or auditoriums.The TAA compliant ST222HDBT is backed by a 2-year StarTech.com warranty and free lifetime technical support.The StarTech.com Advantage

Features
Type AV transmitter & receiver
Maximum resolution 1920 x 1080 pixels
Cable types supported Cat5e, Cat6
Maximum transfer distance 90 m
Chipset VS2310TX, VS2310RX
Maximum refresh rate 60 Hz
Audio output channels 7.1 channels
LED indicators Link, Status
Supported video modes 720p, 1080p
Supported graphics resolutions 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Daisy chain No
Rubber feet Yes
Product colour Black
Certification CE, FCC, TAA
Ports & interfaces
Connectivity technology Wired
RJ-45 input ports 1
RJ-45 output ports 1
HDMI in 2
Number of HDMI outputs 2
Audio input 1 x Toslink
Audio output 1 x Toslink
Serial ports quantity 2
Serial interface type RS-232
3.5 mm (1/8-inch) in Yes
3.5 mm (1/8-inch) out Yes
Remote (IR) input 2
Remote (IR) output 2
DC-in jack Yes
Power
AC input voltage 100 - 240 V
Operating voltage 12 V
Output current 1.5 A
Power plug type Type M
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -10 - 60 °C
Operating relative humidity (H-H) 0 - 80%
Weight & dimensions
Weight 200 g
Receiver dimensions (WxDxH) 130 x 158 x 43 mm
Receiver weight 200 g
Transmitter dimensions (WxDxH) 130 x 158 x 43 mm
Transmitter weight 200 g
Packaging data
Package width 224 mm
Package depth 475 mm
Package height 67 mm
Package weight 1.43 kg

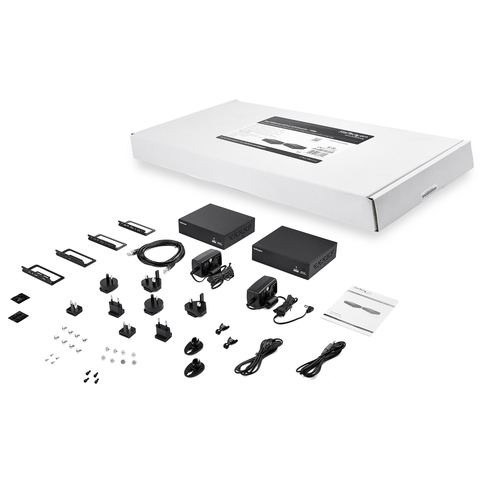

Packaging content
Cables included LAN (RJ-45)
Included power plug types ANZ, EU, JP, NA, UK
Manual Yes
IR blaster included Yes
IR receiver included Yes
Mounting brackets included Yes
Technical details
Sustainability certificates RoHS
Logistics data
Master (outer) case width 300 mm
Master (outer) case length 485 mm
Master (outer) case height 253 mm
Products per master (outer) case 4 pc(s)
