StarTech.com USB 3.0 Docking Station - Dual Monitor Laptop Docking Station with HDMI & DVI/VGA Video - 6-port USB 3.1 Gen 1 5Gbps Hub, GbE, Audio - Universal Type-A Dock - Windows & Mac
- Brand
- STARTECH
- Product code
- DK30ADD
- SKU
- GCYTTNMZ3I7N6
- EAN/GTIN
- 0065030871440

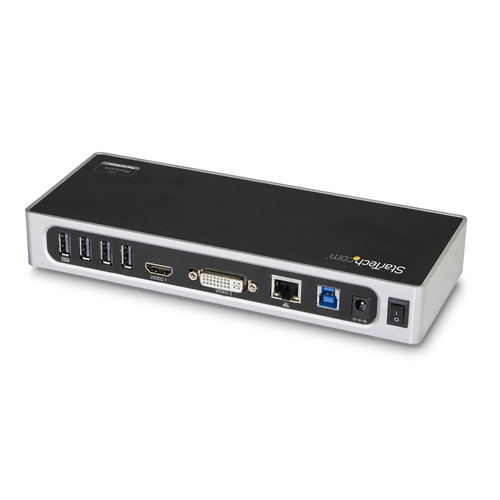

- FULL FEATURE DOCK: USB 3.0 Type-A dock features dual monitor options with HDMI & DVI video ports, six USB 3.1 Gen 1 5Gbps Type-A ports, gigabit ethernet, audio port & includes a 1m USB-A host cable
- MULTIPLE DUAL DISPLAY OUTPUTS: Flexible dual screen display options for mixed monitor connectivity incl. HDMI + DVI or HDMI + VGA (w/ the incl. DVI to VGA Adapter) to support new and existing set ups
- USB-A LAPTOP COMPATIBILITY: DisplayLink certified, this USB 3.0 docking station works with laptop brands like HP, Dell, Lenovo, MacBook, Surface Book / Pro 6, and Chromebooks
- WIDE OPERATING SYSTEM COMPATIBILITY: This universal laptop docking station fully supports major operating systems like Windows, macOSx, and ChromeOS
- PLENTY OF USB PORTS: This USB 3.0 port replicator has a 6-port downstream USB-A hub (5Gbps SuperSpeed) including two always-on BC 1.2 (1.5A) fast-charge ports that charge without a connected computer
Product Info
Laptop Docking Station | Mac & Windows | HDMI & DVI | DVI to VGA Adapter

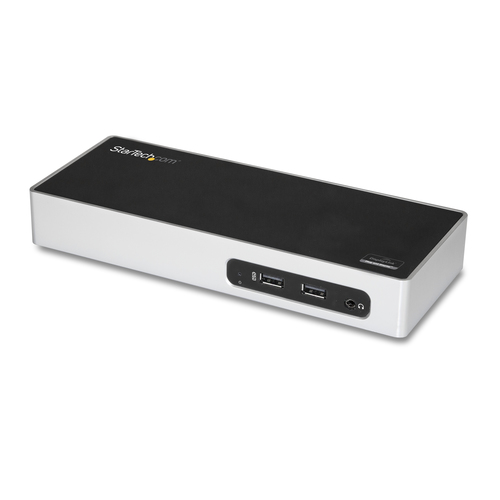

This USB 3.0 docking station for Mac and Windows laptops gives you display flexibility and the ports you need to maximize workstation performance. The cost-effective dual-monitor docking station provides many video output options including HDMI, DVI and VGA (with adapter), and gives you six USB ports for peripherals, including two fast-charge USB ports.

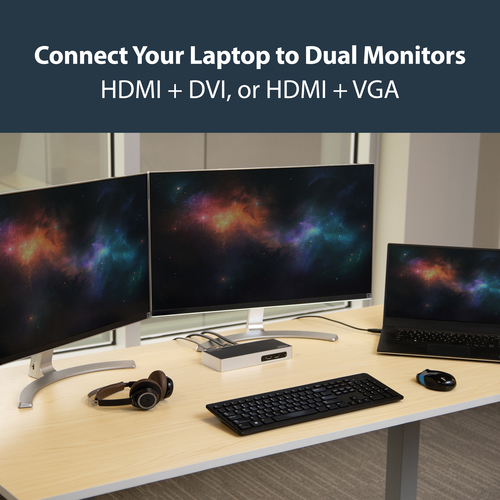

Enhance Productivity with Dual Video

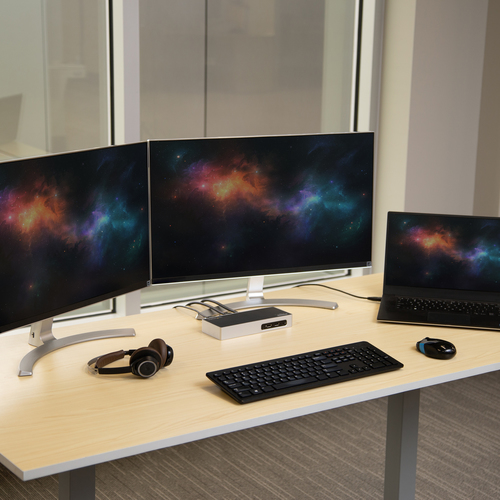

The USB 3.0 dock expands the display capabilities of your Mac or Windows laptop. Set up dual displays by connecting to one HDMI and one DVI monitor. Plus, the laptop docking station includes a DVI to VGA adapter, so you can connect to a legacy VGA monitor.
With the dual-monitor dock, you can connect:
1x HDMI display + 1x DVI display at 2048 x 1152 resolution @ 60Hz
1x HDMI display at 2048 x 1152 resolution + 1x VGA display at 1920 x 1200 resolution @ 60Hz

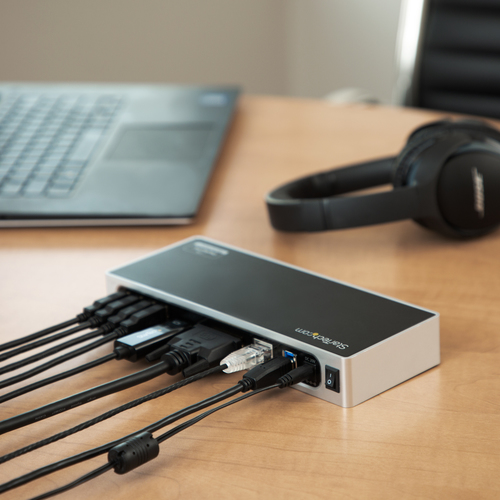

All the Connections You Need

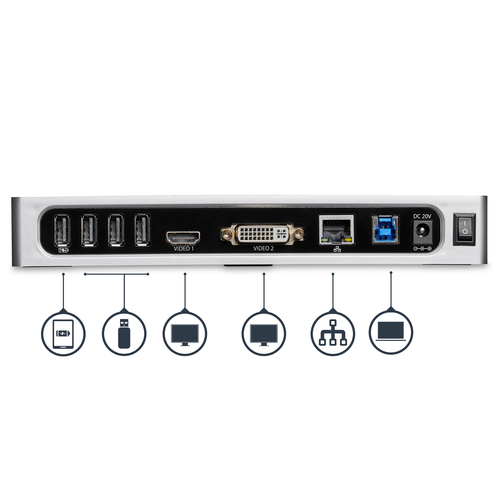

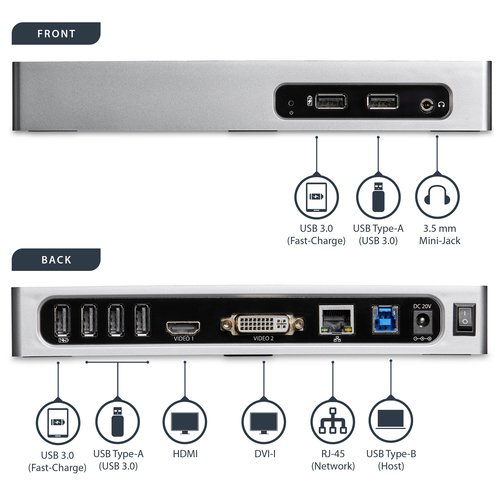

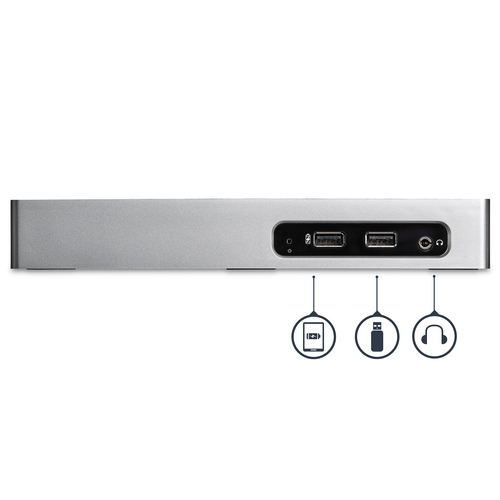

Transform your laptop into a fully capable workstation. This USB 3.0 dock provides six USB 3.0 (Type-A) ports so you can easily connect your keyboard, external drives and other peripherals, from the single USB 3.0 host connection. Two of the USB 3.0 ports are always-on fast-charge ports, adding charge-and-sync flexibility for up to two mobile devices. The docking station also provides a Gigabit Ethernet port plus a 3.5 mm audio headphone port.
DK30ADD is backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- FULL FEATURE DOCK: USB 3.0 Type-A dock features dual monitor options with HDMI & DVI video ports, six USB 3.1 Gen 1 5Gbps Type-A ports, gigabit ethernet, audio port & includes a 1m USB-A host cable
- MULTIPLE DUAL DISPLAY OUTPUTS: Flexible dual screen display options for mixed monitor connectivity incl. HDMI + DVI or HDMI + VGA (w/ the incl. DVI to VGA Adapter) to support new and existing set ups
- USB-A LAPTOP COMPATIBILITY: DisplayLink certified, this USB 3.0 docking station works with laptop brands like HP, Dell, Lenovo, MacBook, Surface Book / Pro 6, and Chromebooks
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-B |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| HDMI ports quantity | 1 |
| DVI-I ports quantity | 1 |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| DC-in jack | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wake-on-LAN ready | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Auto MDI/MDI-X | Yes |
| Full duplex | Yes |
| Performance | |
| Card reader integrated | No |
| Data transfer rate | 5 Gbit/s |
| Maximum digital resolution | 2048 x 1152 pixels |
| Number of displays supported | 2 |
| Product colour | Black, Silver |
| On/off switch | Yes |
| LED indicators | Power |
| UASP support | Yes |
| Housing material | Plastic |
| Brand compatibility | Any brand |
| Certification | CE, FCC, DisplayLink, REACH |
| Power | |
| Power source type | AC |
| AC input voltage | 100 - 240 V |
| Input current | 1 A |
| Output voltage | 20 V |
| Output current | 2 A |
| Power consumption (typical) | 40 W |
| Power plug type | Type N |
| Compatible power plug types | AU, EU, JP, UK, US |
| Software | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 13.0 Ventura |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |

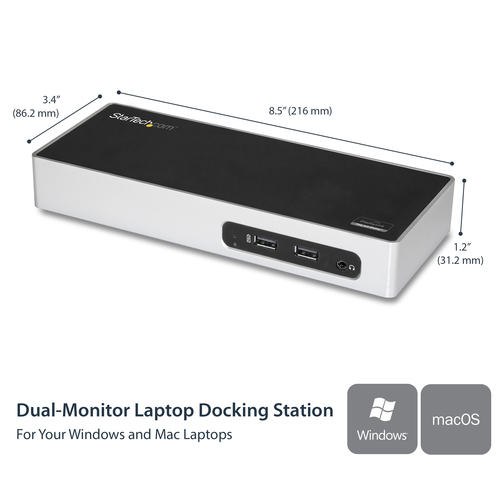

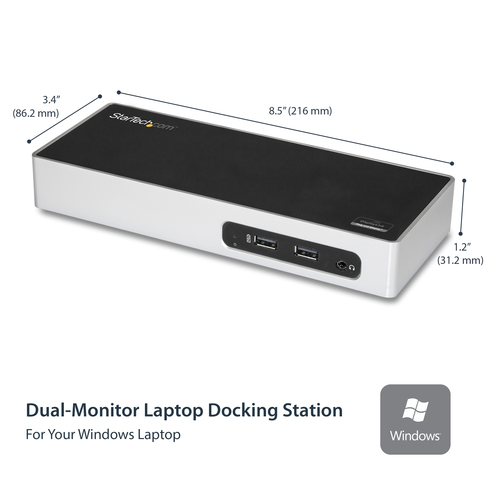

| Width | 86.2 mm |
| Depth | 216 mm |
| Height | 31 mm |
| Weight | 291 g |
| Packaging data | |
| Package width | 140 mm |
| Package depth | 307 mm |
| Package height | 60 mm |
| Package weight | 800 g |

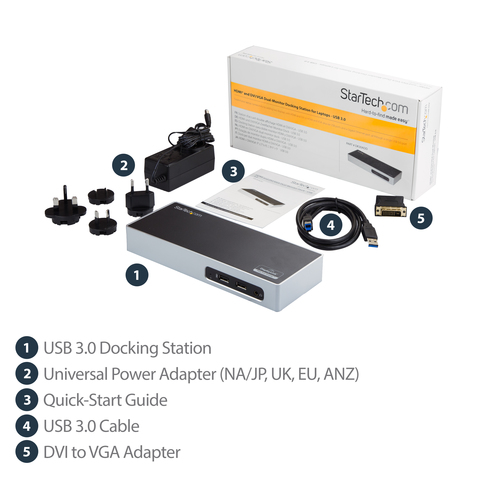

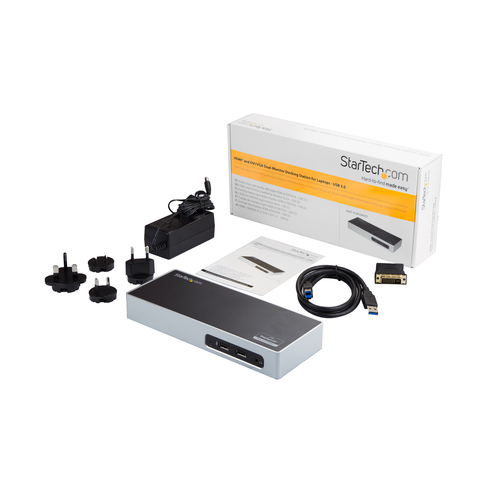

| Packaging content | |
| Cables included | USB |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Logistics data | |
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case width | 315 mm |
| Master (outer) case length | 325 mm |
| Master (outer) case height | 295 mm |
| Harmonized System (HS) code | 84733020 |
| Other features | |
| Cable length | 1 m |
| Chipset | DisplayLink - DL-3900, VIA/VLI - VL813 |
