StarTech.com Multi-Input to HDMI Automatic Switch and Converter - 4K
- Brand
- STARTECH
- Product code
- HDVGADP2HD
- SKU
- MDXDIR5A4QALX
- EAN/GTIN
- 0065030863476
- Video port type: HDMI/VGA/DisplayPort
- 3840 x 3160 pixels
- Black
Product Info
This multi-input converter switch lets you connect your DisplayPort (DP), HDMI® and VGA audio/video sources to one HDMI display or projector. The switch enables you to automatically or manually switch between your video sources and features built-in signal conversion, which eliminates the cost and hassle of using additional adapters for the sake of compatibility.
This versatile A/V switch supports video resolutions up to 1920x1200 (1080p) on your VGA source and up to 4K at 30 Hz on your DisplayPort and HDMI video sources. For a tidy, professional installation, the converter switch includes mounting hardware.
Save time with a single switch for DisplayPort, HDMI and VGA
The A/V switch features built-in HDMI conversion, so you can connect two HDMI sources as well as a VGA and a DisplayPort video source to the same HDMI display, without having to use additional adapters or scalers.
Effortless control with automatic or priority switching
The converter switch ensures hassle-free operation, with two different auto-switching modes: auto-detect switching, which detects and selects a newly connected device, or priority selection, which lets you choose which port should be activated by default for automatic switching. The converter switch is perfect for digital signage applications where an automatic switch can replace a failed source with a secondary input to avoid embarrassing video outages.
Focus on your presentation, not boardroom connections
This versatile A/V switch has been designed with the boardroom and classroom in mind, with HDMI, VGA and DisplayPort inputs to support a wide range of devices, and a built-in converter that makes it easy to connect to the room’s display without having to connect additional adapters. Plus, automatic switching encourages on-the-fly collaboration among students or co-workers, by making it so easy to share a projector or other display device between multiple sources.
Impressive DisplayPort and HDMI image quality with 4K support
The video switch maintains Ultra HD 4K picture quality while switching between content from HDMI and DisplayPort source devices, including Blu-ray™ players and DVD players, computer systems, video game consoles, digital cable and satellite boxes and A/V receivers.
4K video support ensures a higher level of image clarity and visibility, delivering four times the resolution of 1080p -- 8.29 million pixels versus 2.07 million pixels. It offers a more engaging visual experience for audiences in a wide range of venues, including conference centers, boardrooms, educational facilities, and commercial settings.
When connecting a VGA source, the switch supports high-definition resolutions up to 1920 x 1200. With its exceptional resolution and image quality, this switch is ideal for bringing your digital signage to life.
The HDVGADP2HD is backed by a 2-year StarTech.com warranty and free lifetime support.
| Ports & interfaces | |
|---|---|
| Video port type | HDMI/VGA/DisplayPort |
| HDMI in | 2 |
| Number of HDMI outputs | 1 |
| VGA (D-Sub) ports quantity | 1 |
| DisplayPorts quantity | 1 |
| DC-in jack | Yes |
| Features | |
| Product colour | Black |
| Maximum refresh rate | 60 Hz |
| Supported graphics resolutions | 1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1440, 2560 x 1600 (WQXGA), 3840 x 2160 |
| LED indicators | Status |
| Maximum resolution | 3840 x 3160 pixels |
| Audio output channels | 7.1 channels |
| Power | |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 12 V |
| AC adapter output current | 1.5 A |
| Power plug type | Type M |
| Certificates | |
| Certification | CE, FCC, TAA, REACH |
| Weight & dimensions | |
| Width | 105 mm |
| Depth | 161 mm |
| Height | 41 mm |
| Weight | 615 g |
| Packaging data | |
| Package width | 296 mm |
| Package depth | 211 mm |
| Package height | 65 mm |
| Package weight | 1.2 kg |

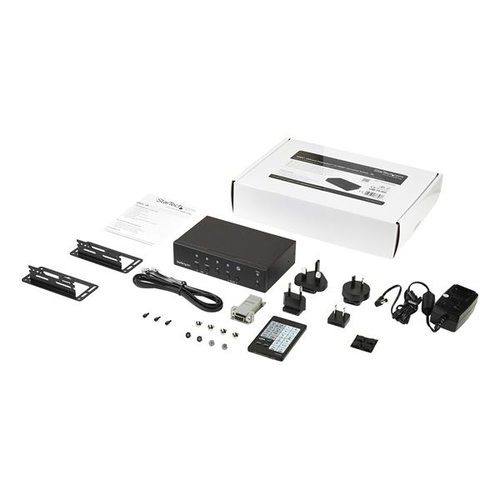

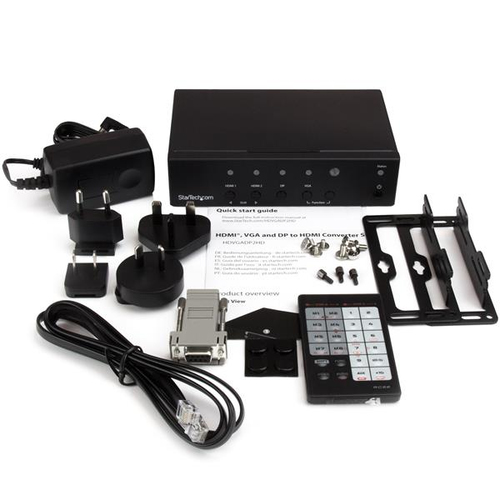

| Packaging content | |
| Quick start guide | Yes |
| Remote control included | Yes |
| Cables included | Phone (RJ-11) |
| AC adapter included | Yes |
| Mounting brackets included | Yes |
| Plug adapter type | NA, EU, UK, AU |
| Screws included | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Sustainability | |
| Sustainability certificates | RoHS |
| Technical details | |
| Audio support | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
