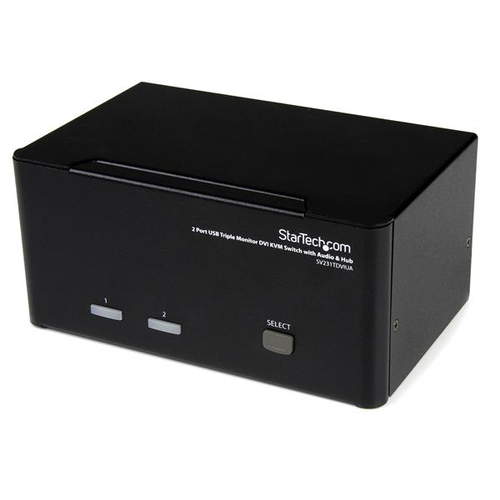

StarTech.com 2 Port Triple Monitor DVI USB KVM Switch with Audio & USB 2.0 Hub
- Brand
- STARTECH
- Product code
- SV231TDVIUA
- SKU
- LF9QD8BJZ5T6W
- EAN/GTIN
- 0065030847469
- Black
- Number of computers controlled: 2
- Keyboard port type: USB Mouse port type: USB Video port type: DVI-I
- 1920 x 1200 pixels
- Hot keys
- 18 W External power adapter
Product Info
The SV231TDVIUA 2-Port Triple Monitor DVI USB KVM Switch allows 2 PCs (each with 3 DVI video outputs) to share monitors, 1 microphone and set of speakers, 1 keyboard and 1 mouse, as well as an additional USB 2.0 peripheral such as an external hard drive, thumb drive, printer, or webcam.
The Triple DVI KVM switch enables you to switch back and forth between 2 multi DVI PCs at the touch of a button, while maintaining professional-level video quality on all monitors at resolutions up to 1920x1200. The triple monitor DVI switch also features an integrated USB hub port which allows USB 2.0 peripherals to be shared between attached systems, eliminating duplicate peripheral costs and offering the convenience of sharing stored data between PCs.
The SV231TDVIUA 2-Port Triple Head DVI KVM Switch is backed by a StarTech.com 3-year warranty and free lifetime technical support.
PLEASE NOTE: While the DVI connector on this KVM is DVI-I, the KVM only supports single-link DVI-D (digital only) video sources. It is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to console connections.
The StarTech.com Advantage
- By enabling control of two triple display computer systems using a single set of peripherals, the switch helps saves cost and work space
- With support for high definition resolutions (1920x1200) on each of the 3 connected monitors, the triple head KVM switch offers maximum screen real estate for optimized productivity
- Integrated USB 2.0 hub and mic/audio ports enable you to have full multimedia control of two computers, while sharing USB peripherals
| Ports & interfaces | |
|---|---|
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DVI-I |
| DVI-I ports quantity | 6 |
| Console ports | DVI-I, 3.5mm headphone, 3.5mm mic, USB A |
| Console USB ports quantity | 4 |
| USB 2.0 ports quantity | 2 |
| Audio connections | Yes |
| Headphone outputs | 2 |
| Number of microphone inputs | 2 |
| DC-in jack | Yes |
| Performance | |
| Maximum resolution | 1920 x 1200 pixels |
| Maximum digital resolution | 1920 x 1200 pixels |
| Scan interval | 3,8,15,30 s |
| HDCP | Yes |
| Plug and Play | Yes |
| Daisy chain | No |
| Number of users | 1 user(s) |
| Design | |
| Rack mounting | No |
| Product colour | Black |
| LED indicators | Activity |
| Hot keys | Yes |
| Mean time between failures (MTBF) | 62000 h |
| Certification | CE, FCC |
| Display | |
| Built-in display | No |
| On Screen Display (OSD) | No |
| Power | |
| AC input voltage | 110-240 V |
| Input current | 0.8 A |
| Output voltage | 12 V |
| Output current | 1.5 A |
| Power consumption (typical) | 18 W |
| External power adapter | Yes |
| Power plug type | Type M |
| Sustainability | |
| Sustainability certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 159 mm |
| Depth | 100 mm |
| Height | 74 mm |
| Weight | 900 g |
| Packaging data | |
| Package width | 185 mm |
| Package depth | 240 mm |
| Package height | 95 mm |
| Package weight | 1.41 kg |
| Packaging content | |
| Manual | Yes |
| AC adapter included | Yes |
| Rubber feet | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
| Other features | |
| Audio support | Yes |
| IP control | No |
