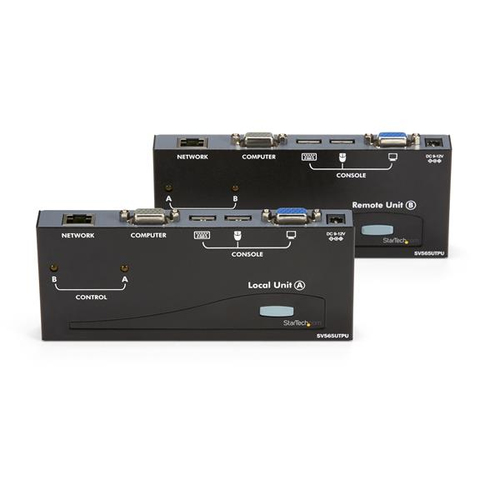

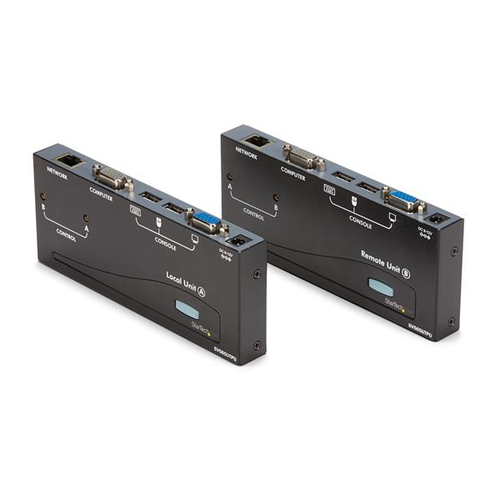

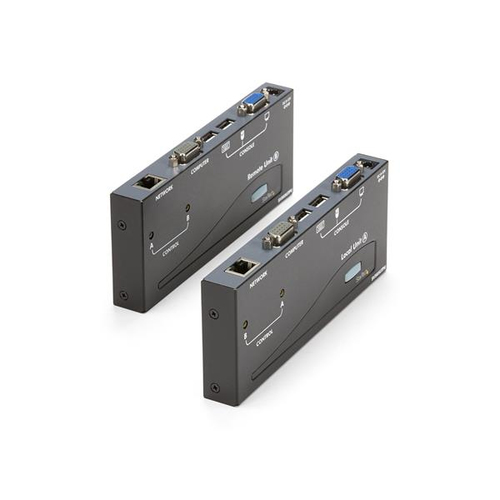

StarTech.com USB VGA KVM Console Extender over CAT5 UTP (500 ft)
- Brand
- STARTECH
- Product code
- SV565UTPUEU
- SKU
- YN2J8HLDMU96A
- EAN/GTIN
- 0065030834506
- Transmitter & receiver
- Wired Maximum transfer distance: 150 m
- Transmitter video port type: VGA
- Power consumption (transmitter) (max): 5.4 W Power consumption (receiver) (max): 5.4 W
- Black
Product Info
Operate a USB & VGA KVM or PC over 500ft as if it were right in front of you
The SV565UTPUEU USB VGA KVM Console Extender over CAT5 UTP (500 ft) lets you control a server, computer or multiple computers (connected through KVM Switch) over a standard Cat5 or Cat6 UTP network cable connection, at distances of up to 500 ft (150 m) away. PC connection cables are included with this product for a ready out of the box solution. You can use your existing keyboard, mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console by allowing you to switch between workstation view and KVM view at the remote location.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Low cost way to convert existing standard KVM units into remotely accessible hardware extending your hardware’s capabilities
- Maintain network security with long distance local access without being exposed over IP
- Broad support for newer USB keyboards, mice, and even most combo/wireless configurations
| Features | |
|---|---|
| Type | Transmitter & receiver |
| Connectivity technology | Wired |
| Maximum transfer distance | 150 m |
| Rack mounting | No |
| Product colour | Black |
| Plug and Play | Yes |
| USB 2.0 ports quantity | 4 |
| Certification | CE, FCC, RoSH |
| Transmitter | |
| Transmitter video port type | VGA |
| Transmitter local video port | Yes |
| Transmitter local video port type | VGA |
| Power | |
| Power plug type | Type M |
| AC input voltage | 100 - 240 V |
| Input current | 0.2 A |
| AC adapter output voltage | 9 V |
| AC adapter output current | 0.6 A |
| Power consumption (transmitter) (max) | 5.4 W |
| Power consumption (receiver) (max) | 5.4 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Transmitter width | 15.5 cm |
| Transmitter depth | 7.5 cm |
| Transmitter height | 2 cm |
| Transmitter weight | 299 g |
| Receiver width | 15.5 cm |
| Receiver depth | 7.5 cm |
| Receiver height | 2 cm |
| Receiver weight | 299 g |
| Packaging data | |
| Package width | 85 mm |
| Package depth | 294 mm |
| Package height | 243 mm |
| Package weight | 1.7 kg |
| Technical details | |
| Maximum resolution | 1280 x 1024 pixels |
| Power requirements | 230 AC |
| Weight | 299 g |

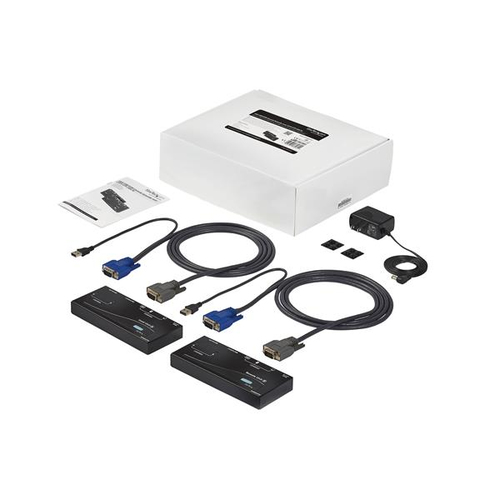

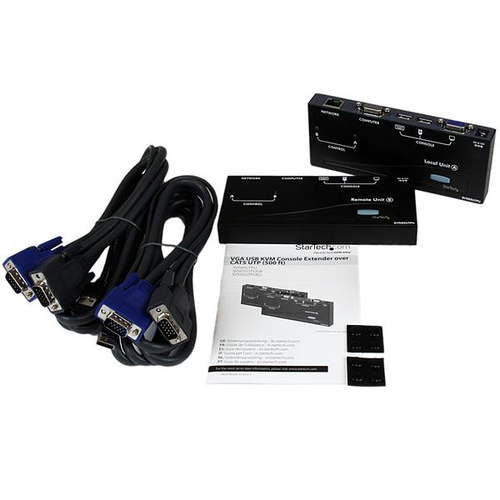

| Packaging content | |
| AC adapter included | Yes |
| Cables included | KVM |
| Manual | Yes |

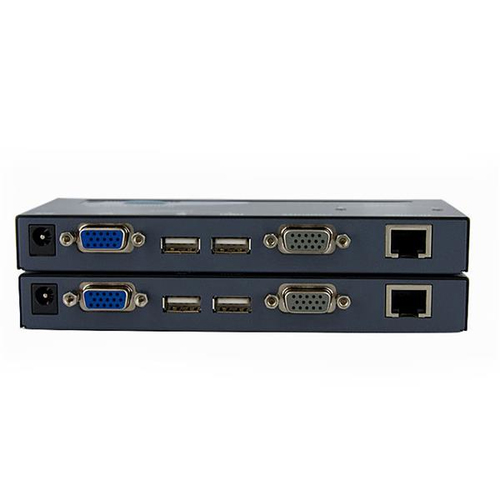

| Ports & interfaces | |
| USB port type | USB Type-A |
| RJ-45 ports quantity | 2 |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
