StarTech.com HB31C2A2CME interface hub
StarTech.com 4 Port USB C Hub 10Gbps - Metal Industrial USB-C Hub - 2x USB-C & 2x USB-A - ESD Surge Protection - USB-C or USB-A Host - Self-Powered Mountable USB 3.2 Gen 2 Type-C Hub
- Brand
- STARTECH
- Product code
- HB31C2A2CME
- SKU
- JVGKWFTO9WTB5
- EAN/GTIN
- 0065030889797
- INDUSTRIAL 4 PORT USB-C HUB: Expand the connectivity of a USB-C or USB-A computer by adding 2x USB Type-A & 2x USB Type-C ports; SuperSpeed USB 3.2 Gen 2 (10Gbps) hub; 3.3 ft (1m) USB-C & USB-A host cables included (w/ screw-lock)
- ESD SURGE PROTECTION: Featuring 15kV Air and 8kV Contact electrostatic discharge protection, this rugged metal-enclosed hub is suitable for harsh industrial/commercial environments

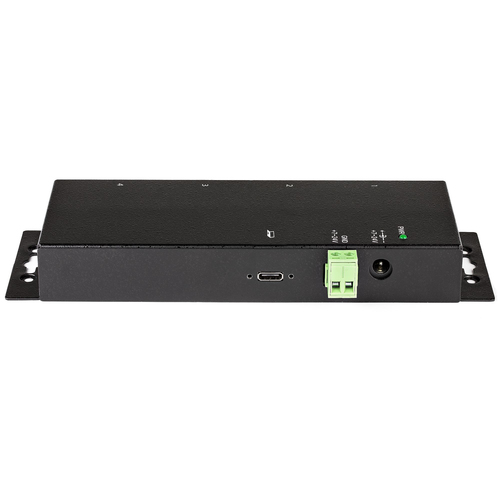

- POWER & CHARGE: Self powered USB C hub w/ 36W power adapter & terminal block connector (7-24V DC inputs); Charging w/BC 1.2 for 30W total on all ports / Provides 12W (2.4A) on all ports up to a total 30W draw

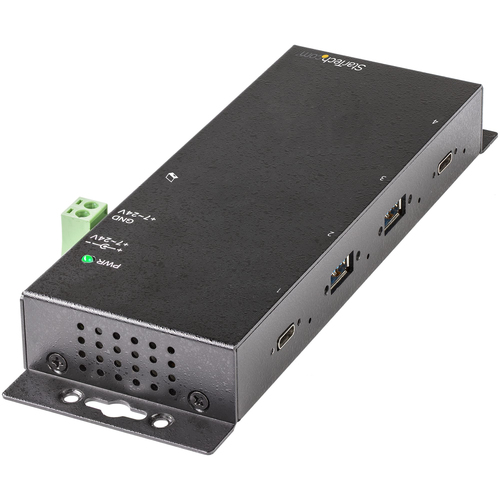

- INSTALLATION FLEXIBILITY: Mountable USB Type-C Hub with built-in ear mounting allows for wall/surface mounting; All USB-A & USB-C ports on hub feature screw-lock connectors to prevent accidental cable release
- COMPATIBILITY: USB expansion hub is OS independent, supports Windows, macOS, Linux, iPadOS, Chrome OS, Android; Thunderbolt 3 & USB 3.0/2.0/1.0 compatible; For use in manufacturing, automation, labs, schools, IT; MTT for max bandwidth with mixed-speed devices
€147.18
(Inc. VAT)
(Delivery 2-4 working days)
Product Info
StarTech.com 4 Port USB C Hub 10Gbps - Metal Industrial USB-C Hub - 2x USB-C & 2x USB-A - ESD Surge Protection - USB-C or USB-A Host - Self-Powered Mountable USB 3.2 Gen 2 Type-C Hub. Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, Hub interfaces: USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C. Data transfer rate: 10000 Mbit/s, Product colour: Black, Housing material: Metal. Power consumption (typical): 36 W, Input voltage: 100 - 240 V, Input current: 1 A. Width: 59.6 mm, Depth: 152 mm, Height: 23.5 mm. Package width: 290 mm, Package depth: 190 mm, Package height: 67 mm
Industrial USB Hub | Metal Housing | Built-in Mounting Hardware | Screw Locking PortsThis 4-Port industrial USB hub enables you to connect four SuperSpeed USB 3.2 Gen 2 (10 Gbps) peripherals to your USB-A or USB-C computer. The hub features two USB-A and two USB-C peripheral ports, each with a screw-lock connector, and a metal industrial housing ideal for harsh, industrial environments.Expands the Connectivity of Your Computer for Industrial ApplicationsWith this USB-C hub you can connect two USB-A devices, and two USB-C devices, to a single USB-C or USB-A port on your host device. The hub supports USB 3.2 Gen 2 (10 Gbps), and is backward compatible with USB 3.2 Gen 1 (5 Gbps) and USB 2.0 (480 Mbps).Note: USB 3.2 Gen 2 (10 Gbps) is also known as USB 3.2 Gen 2 (10 Gbps), USB 3.2 Gen 1 (5 Gbps) is also know as USB 3.2 Gen 1 (5 Gbps), and USB 3.2 Gen 1 (5 Gbps).Powers and Charges Your Connected DevicesThe USB hub is self powered using either the included 36W (12V/3A) AC to DC power adapter, or the built-in terminal block connector that supports a 7-24V DC input. The hub shares up to 30W of power between connected devices and each port supports BC 1.2 providing 12W (2.4A) of power on all ports up to a 30W draw.Ideal for Use in Industrial EnvironmentsThis USB hub has a rugged-metal enclosure with built-in mounting ears that enable you to mount it to any wall or surface. The hub features 15kV Air and 8kV Contact electrostatic discharge (ESD) protection. Each port on the Hub has a screw lock, avoiding the possibility of accidental cable disconnection, and a 3.3 ft. (1m) USB-C host cable, and a 3.3 ft. (1 m) USB-A host cable is included that features a locking screw.Wide Device CompatibilityThe USB hub is OS independent ensuring support on a wide range of platforms including Windows, macOS, Linux, iPadOS, Chrome OS and Android.HB31C2A2CME is backed by a StarTech.com 2-year warranty and free lifetime 24/5 multi-lingual North American based technical support. StarTech.com has been the IT professionals' choice for over 30 years.The StarTech.com Advantage
| Ports & interfaces | |
|---|---|
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| Hub interfaces | USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| Ports quantity | 4 |
| Terminal block port | Yes |
| DC-in jack | Yes |
| Features | |
| Data transfer rate | 10000 Mbit/s |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Power, USB |
| Network | |
| UASP support | Yes |
| Power | |
| Power consumption (typical) | 36 W |
| Input voltage | 100 - 240 V |
| Input current | 1 A |
| Output voltage | 12 V |
| Output current | 3 A |
| Power plug type | Type M |
| Weight & dimensions | |
| Width | 59.6 mm |
| Depth | 152 mm |
| Height | 23.5 mm |
| Weight | 280 g |
| Packaging data | |
| Package width | 290 mm |
| Package depth | 190 mm |
| Package height | 67 mm |
| Package weight | 1.3 kg |

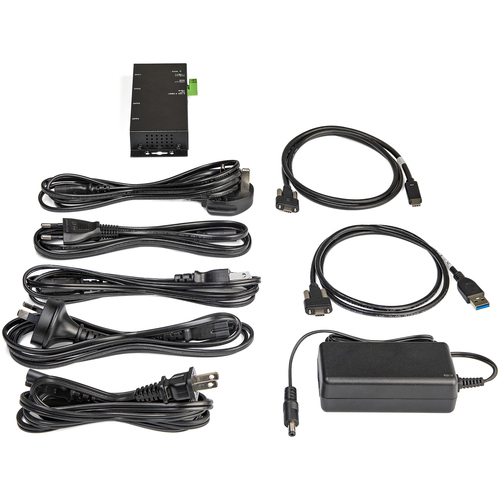

| Packaging content | |
| AC adapter included | Yes |
| Included power plug types | ANZ, EU, JP, NA, UK |
| Cables included | USB Type-A to USB Type-C |
| Manual | Yes |
| Terminal block included | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -20 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Sustainability | |
| Sustainability certificates | CE, RoHS |
| Logistics data | |
| Master (outer) case width | 515 mm |
| Master (outer) case length | 390 mm |
| Master (outer) case height | 313 mm |
| Products per master (outer) case | 14 pc(s) |
| Harmonized System (HS) code | 84719000 |
| Other features | |
| Chipset | VIA/VLI - VL822 |
