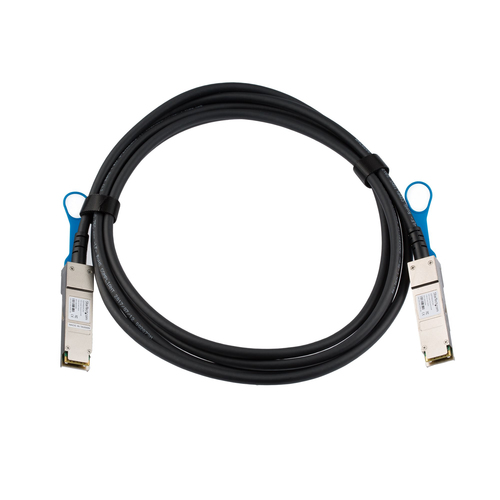

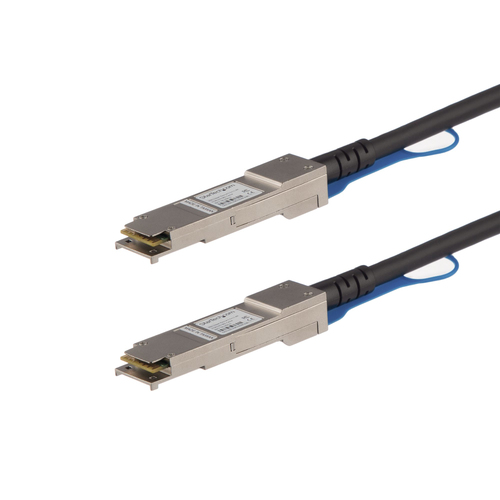

StarTech.com MSA Uncoded Compatible 3m 40G QSFP+ to QSFP+ Direct Attach Breakout Cable Twinax - 40 GbE QSFP+ Copper DAC 40 Gbps Low Power Passive Transceiver Module DAC
- Brand
- STARTECH
- Product code
- QSFP40GPC3M
- SKU
- O9LSVLMO7SWHT
- EAN/GTIN
- 0065030875318
- MSA UNCODED QSFP+ CABLE (DAC): 40G direct attach cable works with MSA compliant switches the accept uncoded transceivers and modules
- TECHNICAL SPECS: 3m (9.84ft) / 40 Gbps / Passive Twinax (Copper) / 2x QSFP+ Pluggable Connector / 100 Ohm Impedance / 30 AWG Wire Gauge / PVC Cable Jacket / Hot swappable / MSA Compliant
- DESIGNED FOR SERVER ROOMS: DAC is a cost-effective copper alternative to fiber cable inside & between racks. Factory termination means high performance & reliability with less maintenance.
- OUTSTANDING SUPPORT: Backed by StarTech.com for the life of the cable itself, not your equipment; our cables won't void your OEM support and with access to our Tech Advisors 5/24
- WORKS WITH MSA COMPLIANT SWITCHES: Low power 40 GbE DAC also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules and transceivers
- Hot-swappable
Product Info
Copper QSFP+ Cable | 40 Gbps | Passive DAC | Lifetime WarrantyThe QSFP40GPC3M is an MSA compliant direct-attach copper QSFP+ cable that’s designed, programmed and tested to work in 40G network deployments. It delivers dependable 40 GbE connectivity over copper cabling, which is a cost-effective alternative to fiber-optic cable setups.This passive Twinax cable supports 40 Gigabit Ethernet applications connected through QSFP+ (Mini-GBIC) ports. The cable is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.At 3 meters long and designed for high-speed performance, this copper QSFP+ cable is ideal for medium-distance applications such as across-rack network switch or server connections.StarTech.com SFP CablesAll StarTech.com SFP & SFP+ cables are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of direct-attach SFP Cables and SFP modules, providing the convenience and reliability you need to ensure dependable network performance.The StarTech.com Advantage
| Features | |
|---|---|
| Cable length | 3 m |
| Connector 1 | QSFP+ |
| Connector 2 | QSFP+ |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Product colour | Black |
| Data transfer rate | 40000 Mbit/s |
| Jacket material | Polyvinyl chloride (PVC) |
| Plug and Play | Yes |
| Certification | CE, FCC, REACH |
| Technical details | |
| Sustainability certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Weight & dimensions | |
| Weight | 252 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 250 mm |
| Package depth | 325 mm |
| Package height | 25 mm |
| Package weight | 268 g |
| Logistics data | |
| Master (outer) case width | 255 mm |
| Harmonized System (HS) code | 84733080 |
| Master (outer) case length | 344 mm |
| Master (outer) case height | 295 mm |
| Products per master (outer) case | 20 pc(s) |
