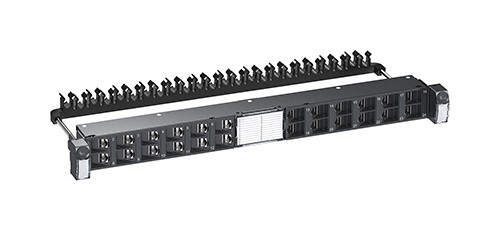

APC VDIG328241BX0 patch panel 1U
- Brand
- APC
- Product code
- VDIG328241BX0
- SKU
- RQ3A8DAYQ5EX4
- Superior usability
- Quick and easy installation
- Innovation in design and offer
- Compatibility with Schneider Electric products
- PoE+
- Guaranty of performance, security and reliability
- Performance with compliancy to the most advanced international standards
- Comprehensive offer
Product Info
Actassi 19-C equipped flat panel allows high-density copper port installation. Cat6A STP S-One connectors (not mounted) are positioned in angle to guide the patch-cords to vertical sides of the enclosure. The installation of copper ports is maximized as there is no need to consume rack units to mount horizontal guiding panels. The panel is also equipped with one Quick Fix function on both sides to allow simple, quick fixing position and sliding feature.
Clear front marking and color identifications
Transparent and openable label holders give a clear visibility of port numbers. Each shutter can also be color-coded for quick identification in both open and closed positions.
Connector in angle:
Connectors are positioned in angle to guide the patch-cords to the vertical sides of the enclosure. The installation of copper ports is maximised as there is no need to consume rack units to mount horizontal guiding panels
Quick Fix function
Quick fix function on both sides to allow a simple, quick fixing position and sliding feature
Rear cable manager:
The cable manager can rotate and be removed to ease the accessibility. Hooks for cable ties for extra safety.
Vertical side rings
Vertical side rings and connectors at an angle gives a true high density installation. The overhead patching frame saves space in enclosure below.
| Network | |
|---|---|
| Ports quantity | 24 |
| Cable types supported | Cat6a |
| Cable shielding | U/FTP (STP) |
| Design | |
| Product colour | Grey |
| Material | Metal, Plastic |
| Mounting | Rack mounting |
| Rack capacity | 1U |
| Certification | IEC 60297 NF C 20-150 ISO/IEC 11801:2011 Ed.2.2 |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 55 °C |
| Weight & dimensions | |
| Width | 195 mm |
| Height | 65 mm |
| Depth | 500 mm |
| Weight | 1.92 kg |
| Logistics data | |
| Harmonized System (HS) code | 85371098 |
