StarTech.com 4 Port Dual DVI USB KVM Switch with Audio & USB 2.0 Hub
- Brand
- STARTECH
- Product code
- SV431DD2DUA
- SKU
- QFH9QBEFXAME2
- EAN/GTIN
- 0065030835695
- Black
- Number of computers controlled: 4
- Keyboard port type: USB Mouse port type: USB Video port type: DVI-I
- 2048 x 1536 pixels
- Housing material: Steel
Product Info

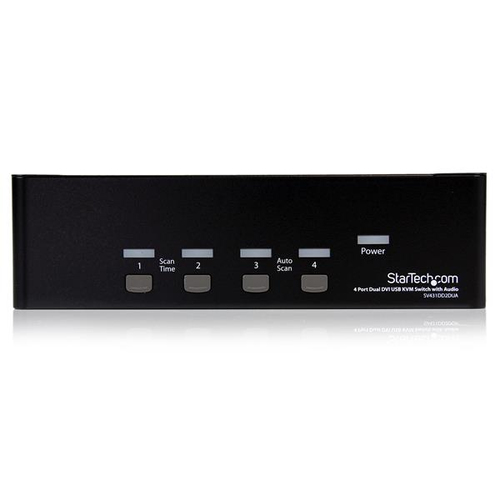

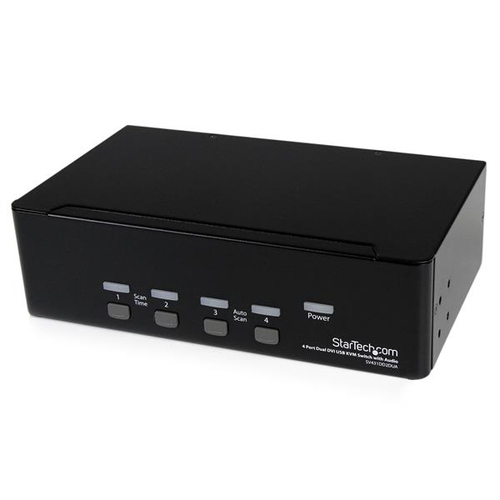

Share a keyboard, mouse and dual DVI displays/monitors between 4 multimedia computers
The SV431DD2DUA 4-port Dual DVI USB KVM Switch allows up to four PCs, each with dual DVI video outputs, to share two monitors, one microphone and set of speakers, one keyboard and one mouse as well as two other USB peripherals.
An ideal solution for graphic designers, CAD/CAM designers or educational and financial institutions, the dual view KVM Switch allows you to instantly switch back and forth between dual DVI display PCs at the touch of a button, while maintaining professional level video quality on both monitors. The dual DVI switch also features an integrated USB hub port that allows USB 2.0 peripherals such as thumb drives, external hard drives or web cams to be shared between attached systems - eliminating duplicate peripheral costs.
Please Note: While both DVI-I (analog mode) and DVI-D (digital only) are supported by the KVM, both source PCs should output the same signal type for proper switching. It is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to Console connections. Please contact technical support if you require assistance identifying your source.
Backed by a StarTech.com 3 year warranty and free lifetime technical support.
The StarTech.com Advantage
- Integrated USB 2.0 hub and Mic/Audio ports allow the user to have full multimedia control of two computers and share USB peripherals eliminating the expense of duplicate devices
- Take full advantage of Dual head video cards by switching up to four machines across two high resolution DVI monitors
- Absolutely no software or drivers required providing a completely OS independent KVM solution
| Ports & interfaces | |
|---|---|
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DVI-I |

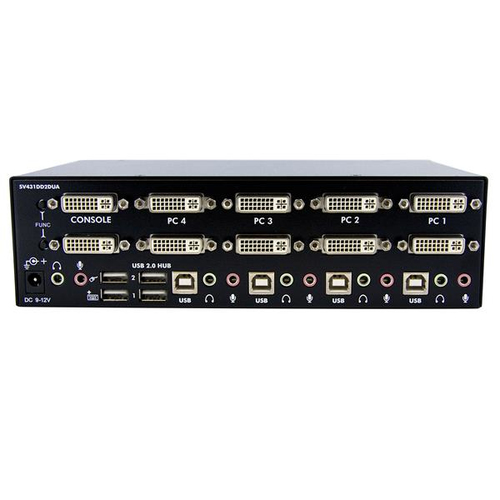

| Console ports | 3.5mm headphone, 3.5mm mic, DVI-I, USB A |
| USB 2.0 ports quantity | 4 |
| USB connector type | USB Type-A |
| Audio connections | Yes |
| Number of microphone inputs | 1 |
| DC-in jack | Yes |
| Network | |
| Ethernet LAN | No |
| Performance | |
| Maximum resolution | 2048 x 1536 pixels |
| Maximum digital resolution | 1920 x 1200 pixels |
| Maximum analog resolution | 2048 x 1536 pixels |
| Daisy chain | No |
| Number of users | 1 user(s) |
| Design | |
| Product colour | Black |
| Housing material | Steel |
| LED indicators | Power |
| Certification | CE, FCC, UL |
| Power | |
| AC input voltage | 100-240 V |
| Input current | 0.8 A |
| Output voltage | 12 V |
| Output current | 1.5 A |
| Compatible power plug types | AU, EU, UK, US |
| Sustainability | |
| Sustainability certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
| Width | 220 mm |
| Depth | 130 mm |
| Height | 60 mm |
| Weight | 1.25 kg |
| Packaging data | |
| Package width | 295 mm |
| Package depth | 245 mm |
| Package height | 86 mm |
| Package weight | 1.88 kg |

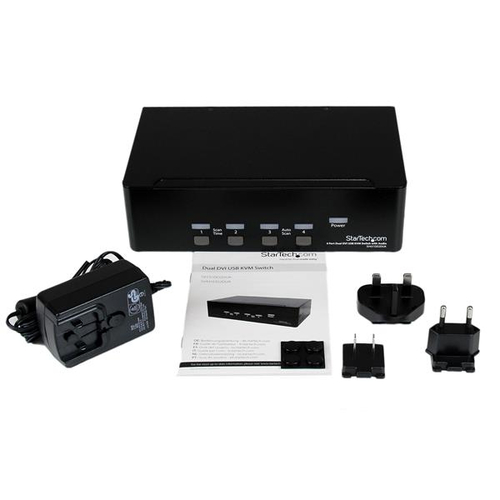

| Packaging content | |
| Manual | Yes |
| AC adapter included | Yes |
| Rubber feet | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
| Other features | |
| IP control | No |
