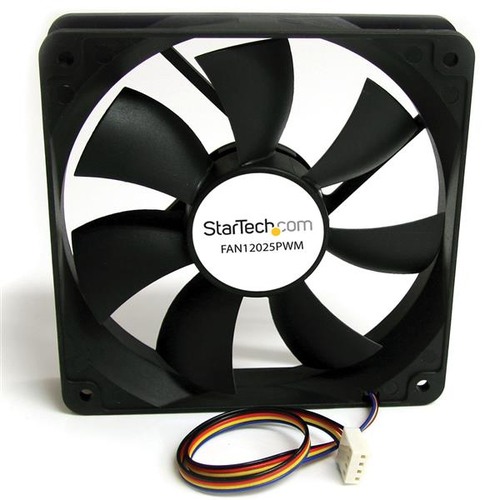

StarTech.com 120x25mm Computer Case Fan with PWM – Pulse Width Modulation Connector
- Brand
- STARTECH
- Product code
- FAN12025PWM
- SKU
- QOOONUN21TGYZ
- EAN/GTIN
- 0065030845335
- Computer case Fan 12 cm
- 39 dB
- Black
Product Info
Add a Variable Speed, PWM-controlled Cooling Fan to your Computer Case
The FAN12025PWM 120mm PWM Case Fan adds an efficient air cooling solution to computer cases or other enclosures to help ensure optimal performance from internal components.
With Pulse Width Modulation (PWM) technology, the fan speed can be dynamically controlled by the motherboard, so the fan runs at a speed that suits the operating conditions - lowering power consumption and fan noise when the system is idle, and delivering maximum cooling under full load conditions.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- PWM control enables the fan to be controlled by the motherboard according to current system requirements, ensuring optimal system performance
- Ever Lubricate bearing design increases reliability and lifespan over fans with a traditional sleeve bearing design
- Backed by a StarTech.com 2-year warranty and free lifetime technical support
| Performance | |
|---|---|
| Suitable location | Computer case |
| Type | Fan |
| Fan diameter | 12 cm |
| Noise level (high speed) | 39 dB |
| Mean time between failures (MTBF) | 40000 h |
| Operating temperature (T-T) | -10 - 70 °C |
| Design | |
| Product colour | Black |
| Material | Plastic |
| Power | |
| Voltage | 12 V |
| Rated current | 0.32 A |
| Weight & dimensions | |
| Weight | 128 g |
| Package width | 145 mm |
| Package depth | 201 mm |
| Package height | 32 mm |
| Package weight | 188 g |
| Other features | |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 65% |
| Fan performance | 78.41 cfm |
| Dimensions (WxDxH) | 120 x 120 x 25 mm |
| Connector(s) | 1 - Molex Fan (4 pin; PWM) |
| Rotational speed | 220 RPM |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
