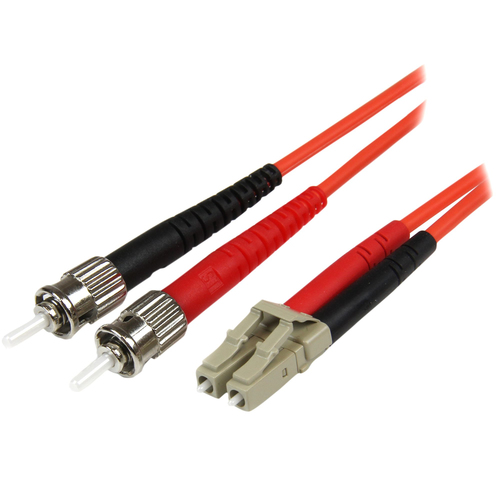

StarTech.com 1m Fiber Optic Cable - Multimode Duplex 50/125 - LSZH Fiber Jumper Cord - LC/ST
- Brand
- STARTECH
- Product code
- 50FIBLCST1
- SKU
- B359Z196XQY0N
- EAN/GTIN
- 0065030849739

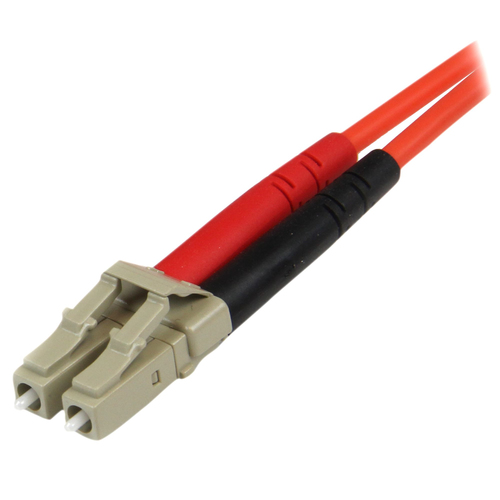

- 1x LC MM male connector

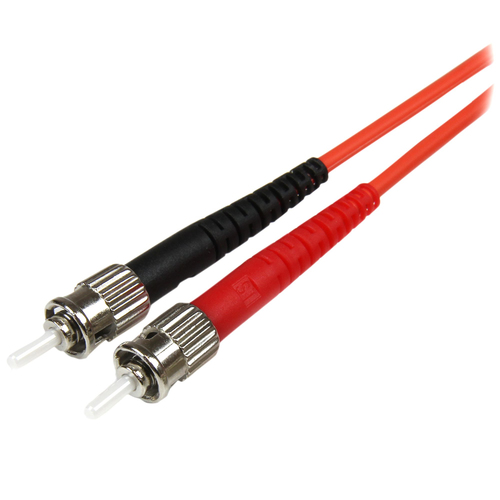

- 1x ST MM male connector
- OM2 (50/125) 500MHz multimode fiber
- LSZH (Low-Smoke, Zero-Halogen) cable jacket
- Attenuation loss meets or exceeds industry standards
- Molded connectors
Product Info
Connect fiber network devices for high-speed transfers with LSZH rated cableThe 50FIBLCST1 1m LSZH LC to ST Fiber Cable features 50/125 micron fiber for high-speed, high bandwidth data transmissions over Gigabit Ethernet and Fiber Channel networks, with support for duplex multimode applications.This LC-ST patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire. Making it ideal for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.Each Duplex 50/125 (OM2) Multimode Fiber Patch Cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability and is backed by our lifetime warranty.The StarTech.com Advantage
| Features | |
|---|---|
| Cable length | 1 m |
| Fibre optic type | OM2 |
| Connector 1 | LC |
| Connector 2 | ST |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Product colour | Orange |
| Full duplex | Yes |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Fiber mode structure | Multi-mode |
| Data transfer rate | 10 Gbit/s |
| Jacket material | Low smoke zero halogen (LSZH) |
| Certification | CE |
| Technical details | |
| Sustainability certificates | REACH, RoHS |
| Doesn't contain | Halogen |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Weight & dimensions | |
| Weight | 28 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 200 mm |
| Package depth | 220 mm |
| Package height | 23 mm |
| Logistics data | |
| Master (outer) case width | 4211 mm |
| Harmonized System (HS) code | 85447000 |
| Master (outer) case length | 439 mm |
| Master (outer) case height | 400 mm |
| Products per master (outer) case | 320 pc(s) |
