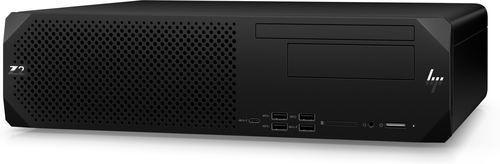

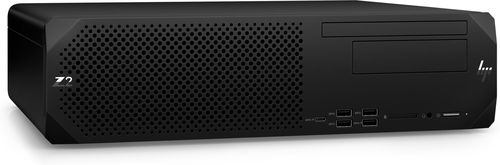

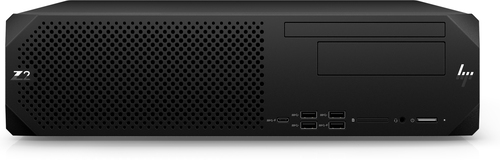

HP Z2 G9 Intel® Core™ i7 i7-14700 16 GB DDR5-SDRAM 512 GB SSD NVIDIA T1000 Windows 11 Pro SFF Workstation AI Workstation Black
- Brand
- HP
- Product Family
- Z2
- Product code
- 996X2ET#ABU
- SKU
- I3NQONZ15M3PV
- EAN/GTIN
- 198122971367
- Intel® Core™ i7-14700 (up to 5.4 GHz with Intel® Turbo Boost Technology, 33 MB L3 cache, 16 cores, 28 threads)
- Windows 11 Pro
- NVIDIA® T1000 (8 GB GDDR6 dedicated)
- 16 GB memory; 512 GB SSD storage
Product Info

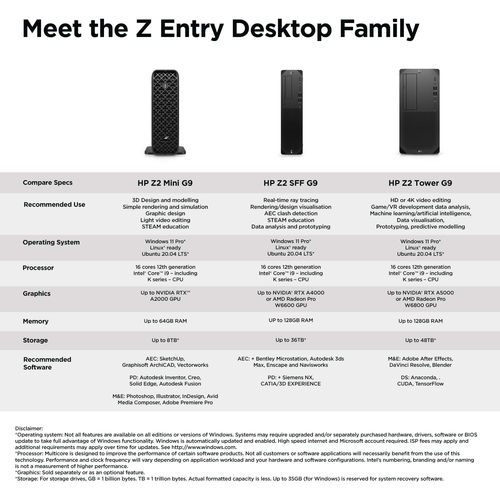

Full size Z tower power at half the size
Get all the power of a full size tower at a fraction of the size. Re-engineered to fit full-height, full-length graphics while leaving room for upgrades and expansion, the Z2 SFF delivers high performance for your intensive workflow—from 3D design to real time ray tracing—now and in the future.
Description
Full height, full length performance
Design, simulate and real time ray trace on a Z SFF -- FHFL pro graphics and Intel® Core™ processors.
Configurable for today. Expandable for tomorrow.
Accelerate your current workflow with options across processor, graphics, memory, storage, and I/O ports.
ISV Certified
Work with confidence knowing your PC is certified with leading software applications to ensure peak performance.[3]
Windows 11
Work anywhere without compromising on performance or security with Windows 11 powered by HP's collaboration and connectivity technology.
Intel® Core™ i7 processor
Run several CPU–heavy programs simultaneously without sacrificing performance with an Intel® Core™ i7 processor. [4]
Security is your top priority
The HP Wolf Pro Security Edition provides preconfigured enterprise-level PC protection for small and medium sized businesses.
Graphics
Create 3D models with NVIDIA® T1000.
Smaller, Functional Design
The stunning new design features front and rear ledges, so you can easily move your system from location to location.
Tool-less Access
Evolve your work. Evolve your rig. With a tool-less sliding access cover, you can easily get into the the interior, and customize your Z to fit your needs.
Thermal Management
Innovatively designed to keep hardware components cool and quiet no matter how hard you push it. Have confidence to run your system at max load 24/7.
Custom Performance Modes
Take on the toughest workflows with three custom pre-set modes that optimize performance from the BIOS—High Performance, Performance and Quiet.
Unthrottled Performance
Z's industry-leading thermals keep the processor and graphics card cool, so they can run at max performance for extended periods of time.
Space Saving
Ideal for space-constrained workspaces that need workstation-class performance and reliability.
Sustainability
This product contains 60% recycled plastics, utilizes 90% power supply efficiency, and meets GreenScreen®️ for Safer Chemicals' methodology standards. [5]
Dust Filter
Help keep your system clean while sitting on the factory floor or machining environment with the front-access dust filter. [6]
Sanitizable
Designed to be wiped down using many commonly available household disinfecting and cleaning wipes using the HP cleaning guidelines. [7]
WiFi Connectivity
Wi-Fi 7 can provide higher data rates than Wi-Fi 6E. [8]
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor generation | Intel Core i7-14xxx |
| Processor model | i7-14700 |
| Processor cores | 16 |
| Processor threads | 28 |
| Processor boost frequency | 5.4 GHz |
| Performance cores | 8 |
| Efficient cores | 12 |
| Performance-core Max Turbo Frequency | 5.3 GHz |
| Efficient-core Max Turbo Frequency | 4.2 GHz |
| Performance-core base frequency | 2.1 GHz |
| Efficient-core base frequency | 1.5 GHz |
| Processor cache | 33 MB |
| Processor cache type | L3 |
| Processor base power | 65 W |
| Maximum turbo power | 219 W |
| Memory | |
| Internal memory | 16 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 1 x 16 GB |
| Memory clock speed | 4800 MHz |
| ECC | No |
| Non-ECC | Yes |
| Storage | |
| Total storage capacity | 512 GB |
| Storage media | SSD |
| Optical drive type | No |
| Number of storage drives installed | 1 |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| Graphics | |
| Discrete graphics card | Yes |
| Discrete GPU manufacturer | NVIDIA |
| On-board graphics card | Yes |
| Discrete graphics card model | NVIDIA Quadro T1000 |
| Discrete graphics card memory | 8 GB |
| Discrete graphics memory type | GDDR6 |
| Number of discrete graphics cards | 1 |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel UHD Graphics 770 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| WLAN controller manufacturer | Intel |
| WLAN controller model | Intel Wi-Fi 7 BE200 |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Ports & interfaces | |
| USB 2.0 ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 6 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| USB Power Delivery | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4 |
| Ethernet LAN (RJ-45) ports | 1 |
| Line-out | Yes |
| Combo headphone/mic port | Yes |
| Design | |
| Chassis type | SFF |
| Number of 3.5" bays | 1 |
| Number of 2.5" bays | 1 |
| Product colour | Black |
| Intel® vPro™ Platform Eligibility | No |
| Introduction year | 2024 |
| Performance | |
| Market positioning | Performance |
| Audio chip | Realtek ALC3252 |
| Password protection | Yes |
| Product type | Workstation |
| Software | |
| Operating system installed | Windows 11 Pro |
| Pre-installed software | HP PC Hardware Diagnostics UEFI; HP Support Assistant; HP PC Hardware Diagnostics Windows; ZCentral Remote Boost; HP Image Assistant; HP Manageability Integration Kit; Performance Advisor 3.0 |
| Brand-specific features | |
| HP Support Assistant | Yes |
| HP Security tools | HP Secure Erase; HP Sure Click; HP BIOSphere Gen6; HP Sure Admin; Hood Sensor Optional Kit; HP Client Security Manager Gen6; HP Sure Start Gen7; HP Sure Recover Gen4; HP Sure Sense Gen2; HP Sure Run Gen5 |
| HP Management tools | HP Driver Packs; HP Management Integration Kit for Microsoft System Center Configuration Management Gen4; HP System Software Manager (download); HP BIOS Configuration Utility (download) |
| HP Software provided | HP PC Hardware Diagnostics UEFI; HP PC Hardware Diagnostics Windows; ZCentral Remote Boost; HP Image Assistant; HP Manageability Integration Kit; Performance Advisor 3.0 |
| HP segment | Business |
| Power | |
| Power supply | 550 W |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50/60 Hz |
| Sustainability | |
| Sustainability compliance | Yes |
| Sustainability certificates | TCO |
| Weight & dimensions | |
| Width | 384 mm |
| Depth | 308 mm |
| Height | 100 mm |
| Package width | 100 mm |
| Package depth | 384 mm |
| Package height | 308 mm |
| Packaging content | |
| Display included | No |
| Mouse included | Yes |
| Mouse connectivity | Wired |
| Keyboard included | Yes |
| Keyboard connectivity | Wired |
| Logistics data | |
| Harmonized System (HS) code | 8471500000 |
| Other features | |
| Keyboard type | USB |
