StarTech.com 1m DisplayPort 2.1 Cable, VESA Certified DP80 DisplayPort Cable w/UHBR20/HDR/DSC 1.2a/HDCP 2.2, 16K/8K 60Hz, 4K 240Hz, 80Gbps, DP 2.1 Cable, UHD Monitor Cord, M/M
- Brand
- STARTECH
- Product code
- UNIVCS25-LAPTOP-LOCK
- SKU
- AL5WLELX68BB1
- EAN/GTIN
- 0065030908931
- HIGH PERFORMANCE: DP 2.1 Cable is designed for UHBR20-enabled DisplayPort devices; DP80 (80Gbps) supports up to 16K 60Hz video w/DSC and 32-channel audio; Latching DP connectors; Flexible TPE jacket routes easily through tight spaces
- FULL DP COMPATIBILITY: DP 2.1 Cable is VESA certified for guaranteed performance and compatibility with DP 2.1 devices, ensuring reliable signal consistency and smooth video playback on any DisplayPort display; Backward compatible with DP 2.0/1.4/1.2

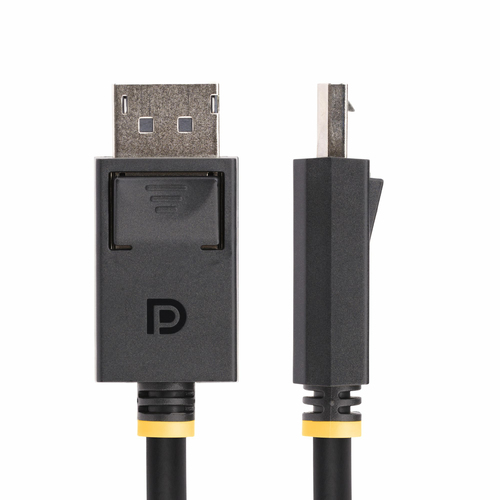

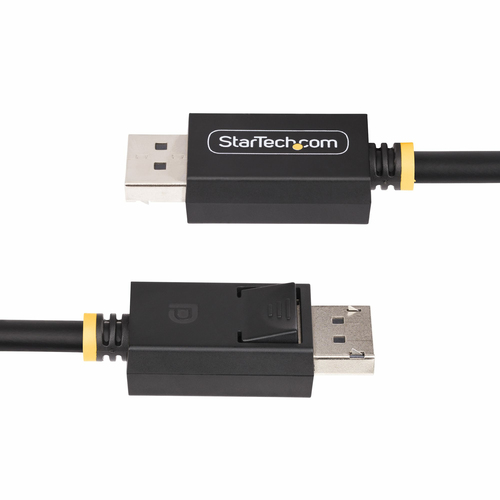

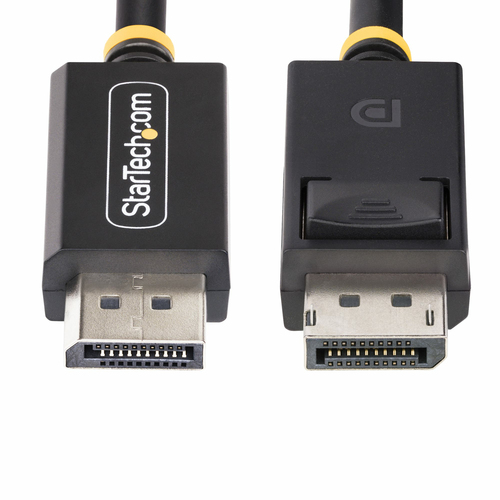

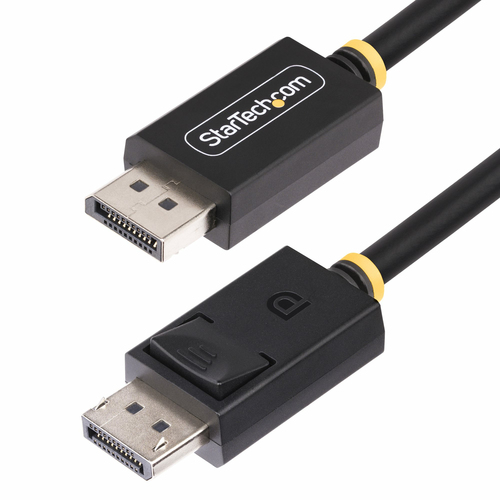

- QUALITY CONSTRUCTION: Nickel-plated ends rated beyond 10,000 insertions; Latching DP connectors prevent accidental disconnections; Shielded coaxial wire for enhanced EMI protection; Durable TPE Jacket and strain reliefs are halogen-free and RoHS compliant

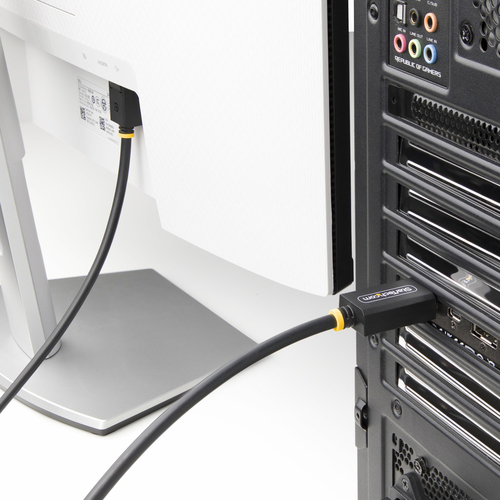

- APPLICATIONS: Ideal for high resolution 16K/8K displays; Up to 240Hz refresh rate at 4K resolution; Suitable for high performance GPUs and AV workstations; Supports MST multi-monitor daisy chains; Connect a DP monitor to a UHD docking station
- SPECS: Black; 1-meter; VESA-Certified DisplayPort 2.1; Supports UHBR20/HDR/MST/DSC 1.2/HDCP 2.2; DP80 (80Gbps); 16K 60Hz w/DSC, 8K 85Hz, 4K 240Hz; 32-ch Audio; Compatible w/DP 2.0/1.4/1.2; Latching DP Connectors; 30AWG Coaxial Wire; 5.8mm (0.23in) O.D.
Product Info
Facilitate higher refresh rates and 8K 60Hz video on UHBR20-enabled DisplayPort devicesConnect a 16K/8K UHD DisplayPort monitor to a host computer or MST hub, using this VESA-Certified DisplayPort 2.1 DP80 Cable. This cable facilitates high bandwidth video and multi-channel audio and is ideal for 16K/8K workstations, high performance GPUs, and dedicated AV applications including media production and content creation.Seamless CompatibilityFor seamless operation between DisplayPort-enabled devices, the DisplayPort 2.1 Cable is VESA Certified for guaranteed DP 2.1 and backward compatibility (DP 2.0/1.4/1.2). It supports G-Sync and FreeSync, enhancing Variable Refresh Rate (VRR) performance for optimal picture quality between high-capacity GPUs and supported displays.Durable DesignThis DisplayPort cable features a flexible TPE outer jacket that is tested to withstand 600 bending cycles at -/+60 degrees, and routes easily around corners and desk edges. Robust strain reliefs enable convenient positioning of the cable, and latching nickel-plated DP connectors attach securely to prevent accidental disconnection. The connectors are rated to operate beyond 10,000 insertions.Supported DisplayPort 2.1 Features:This DP80 DisplayPort cable supports the following DP 2.1 features:• Resolutions up to 16K 60Hz w/DSC, using a compatible DP source and display• UHBR20 supports high refresh rates including 8K 85Hz, 4K 240Hz, and 1440p 240Hz• High-Bandwidth Digital Content Protection (HDCP) 2.2 for a secure connection between source and display• High Dynamic Range 10 (HDR10) for higher contrast ratio and vibrant picture quality• Display Stream Compression (DSC) 1.2a for maximum resolution output• Multi-Stream Transport (MST) for daisy-chaining multiple monitors• 32 Uncompressed Digital Audio Channels• Backward compatible with previous DP versionsThis DP 2.1 Cable is constructed with braided aluminum mylar shielding to minimize EMI for clear, consistent audio/video output and long-term reliable performance.The StarTech.com Advantage
| Features | |
|---|---|
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating | Nickel |
| DisplayPort version | 2.1 |
| Maximum resolution | 15360 x 8640 pixels |
| Supported graphics resolutions | 3840 x 2160, 7680 x 4320 |
| Maximum refresh rate | 240 Hz |
| HDCP | Yes |
| HDCP version | 2.2 |
| Display Stream Compression (DSC) | Yes |
| Display Stream Compression (DSC) version | 1.2a |
| Cable length | 1 m |
| Connector 1 | DisplayPort |
| Connector 2 | DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Latching connectors | Yes |
| Product colour | Black |
| Cable material | Copper |
| Cable shielding | Aluminum mylar foil |
| Jacket material | Thermoplastic elastomer (TPE) |
| AWG wire size | 30 |
| High Dynamic Range (HDR) supported | Yes |
| Data transfer rate | 80 Gbit/s |
| Channels quantity | 32 channels |
| Multi-Stream Transport (MST) | Yes |
| Fire-resistance rating | VW-1 |
| Cable type | Round cable |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Sustainability | |
| Sustainability compliance | Yes |
| Sustainability certificates | RoHS |
| Doesn't contain | Halogen |
| Packaging data | |
| Cable diameter | 5.8 mm |
| Weight | 80 g |
| Quantity per pack | 1 pc(s) |
| Package width | 125 mm |
| Package depth | 220 mm |
| Package height | 20 mm |
| Package weight | 86 g |
| Logistics data | |
| Master (outer) case width | 490 mm |
| Master (outer) case length | 330 mm |
| Master (outer) case height | 215 mm |
| Products per master (outer) case | 100 pc(s) |
