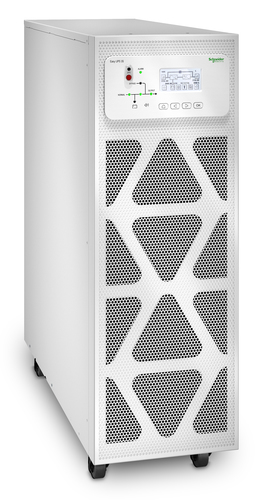

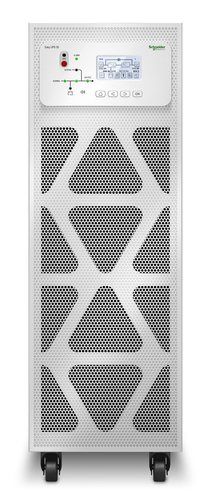

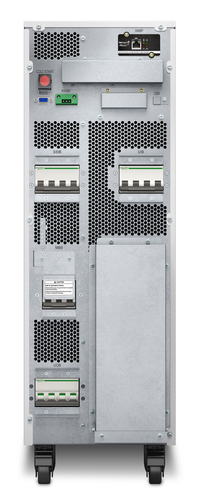

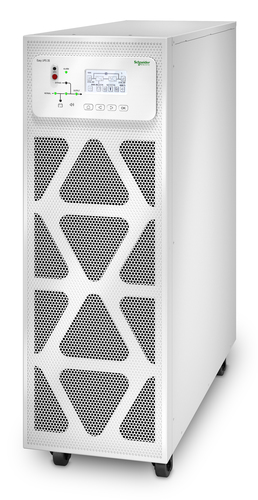

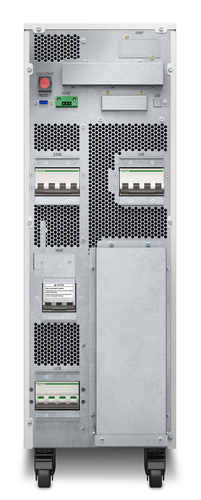

APC Easy 3S uninterruptible power supply (UPS)
APC Easy 3S uninterruptible power supply (UPS) Double-conversion (Online) 20 kVA 20000 W
- Brand
- APC HW
- Product code
- E3SUPS20KH
- SKU
- P3Y463F7M6G0Y
- EAN/GTIN
- 731304339557
- Double-conversion (Online)
- 20 kVA 20000 W
- Waveform: Pure sine
- Tower White
€5855.99
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
| Features | |
|---|---|
| UPS topology | Double-conversion (Online) |
| Output power capacity | 20 kVA |
| Output power | 20000 W |
| Waveform | Pure sine |
| Input operation voltage (min) | 304 V |
| Input operation voltage (max) | 477 V |
| Input frequency | 45/65 Hz |
| Output operation voltage (min) | 277 V |
| Output operation voltage (max) | 415 V |
| Output frequency | 50/60 Hz |
| Maximum current | 37 A |
| Number of input phases | 3 |
| Number of output phases | 3 |
| Input power factor | 0.99 |
| Crest factor | 3:1 |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Input current Total Harmonic Distortion (THD) | 3% |
| Noise level | 60 dB |
| Design | |
| Form factor | Tower |
| Product colour | White |
| Display type | LED |
| International Protection (IP) code | IP20 |
| Certification | CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE, REACH |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 984.3 m |
| Non-operating altitude | 0 - 14763 m |
| Technical details | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Width | 250 mm |
| Depth | 800 mm |
| Height | 770 mm |
| Weight | 58 kg |
| Package width | 400 mm |
| Package depth | 982 mm |
| Package height | 1015 mm |
| Package weight | 75 kg |
| Packaging data | |
| Quick installation guide | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Other features | |
| Output voltage | 400 V |
