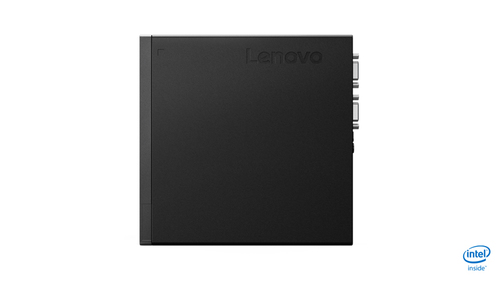

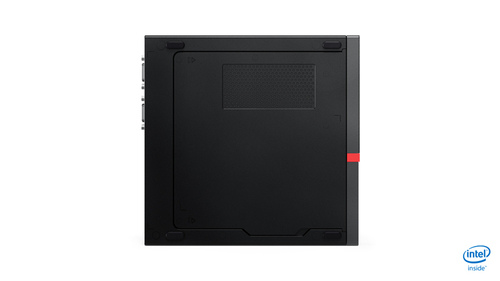

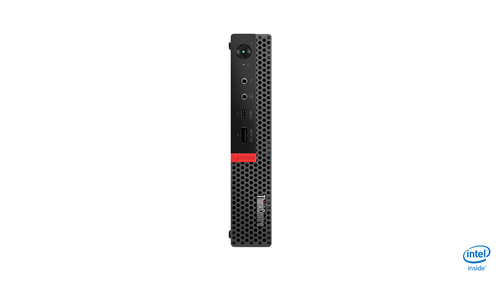

Lenovo ThinkCentre M920q

Lenovo ThinkCentre M920q Intel® Core™ i5 i5-9600T 8 GB DDR4-SDRAM 128 GB SSD Windows 10 Pro Mini PC Black


Brand
Lenovo
Product Family
ThinkCentre
Product series
M
Product code
10T1S0170M
SKU
0F23VWUIFFC1I
  • Windows 10 Pro 64-bit
  • Intel Core i5-9600T (9MB Cache, 2.3GHz)
  • 8GB (2666MHz) DDR4-SDRAM & 128GB SSD
€1157.86 (Inc. VAT)
Sold Out
(Delivery 2-4 working days)

Product Info

Perfect for users, even better for IT managers

Power packed and business ready, the ThinkCentre M Series, which includes the Tower, SFF, Tiny, and Thin Client, is the perfect choice for progressive IT managers looking for high-performance, reliable, and secure desktops. Easy to set up, deploy, and manage in any office environment, they boast the latest processing, memory, and storage technology, and have a number of large storage capacity options. In addition, they come with robust security features to safeguard your critical data and the built-in reliability your organization can count on.

For real results, you need real power

With the latest generation of Intel® processors, cutting-edge DDR4 memory, and the option of solid-state storage, the compact ThinkCentre M920 Tiny is as powerful and responsive as a full-sized desktop. It enables you to get more things done, more quickly—and with more elbow room, too.

What are you waiting for?

For an even faster, smoother, and more responsive PC experience, opt for a hard drive with Intel® Optane™ memory. By recognizing the way you work, this smart next-gen technology accelerates everything—from booting up and opening large apps, to finding files fast and multitasking seamlessly.

It's good to have high-speed connections

When it comes to ports, the ThinkCentre M920 Tiny has plenty. It includes USB 3.1 Gen 2 technology for faster charging and data transfers, even if your PC is shut down or in sleep mode. The ports are placed conveniently, too—enabling you to hook up an extra hard drive or monitor in seconds.

Can fit—and work—anywhere

On a bookshelf, behind a monitor, under the desk…you can fit your ThinkCentre M920 Tiny anywhere. What’s more, it’s been rigorously tested to MIL-SPEC standards, so it works in almost any environment—from the Arctic to the desert and everywhere in between.

Easy to use, configure, & upgrade

If your PC is out of reach, you can switch it on remotely with a simple shortcut, Alt+P. The ThinkCentre M920 Tiny also has a number of expansion slots, enabling it to be configured to meet your business needs. What’s more, should you need to swap out any components, you can slide off the side panel without any tools.

Go green, save green

With Energy Star® 7.0 and EPEAT™ Gold ratings, the ThinkCentre M920 Tiny is proven to be extremely energy efficient, resulting in cost savings in the long run. It also runs very quietly and proudly bears the world's first Ultra Low Noise Certificate, awarded by TÜV Rheinland.

One less thing to worry about

Every ThinkCentre M920 Tiny is equipped with Smart USB Protection. It lets you restrict what USB devices can access the PC, while ensuring that no malware enters the system or network through USB ports. In addition, there's TPM, or the Trusted Platform Module, providing hardware-based security, including the generating and storing of cryptographic keys, while a Kensington Lock port lets you physically secure your M920 Tiny.

Processor
Processor manufacturer Intel
Processor family Intel® Core™ i5
Processor generation 9th gen Intel® Core™ i5
Processor model i5-9600T
Processor cores 6
Processor threads 6
Processor boost frequency 3.9 GHz
Processor frequency 2.3 GHz
Processor socket LGA 1151 (Socket H4)
Processor cache 9 MB
Processor cache type Smart Cache
System bus rate 8 GT/s
Processor lithography 14 nm
Processor operating modes 64-bit
Processor codename Coffee Lake
Thermal Design Power (TDP) 35 W
Configurable TDP-down 25 W
Configurable TDP-down frequency 1.8 GHz
Tjunction 100 °C
PCI Express slots version 3.0
Maximum number of PCI Express lanes 16
PCI Express configurations 1x16, 2x8, 1x8+2x4
Number of processors installed 1
Maximum internal memory supported by processor 128 GB
Memory types supported by processor DDR4-SDRAM
Memory clock speeds supported by processor 2666 MHz
Memory bandwidth supported by processor (max) 41.6 GB/s
Memory
Internal memory 8 GB
Maximum internal memory 32 GB
Internal memory type DDR4-SDRAM
Memory slots 2x SO-DIMM
Memory clock speed 2666 MHz
Non-ECC Yes
Storage
Total storage capacity 128 GB
Storage media SSD
Optical drive type No
Number of storage drives installed 1
Total SSDs capacity 128 GB
Number of SSDs installed 1
SSD capacity 128 GB
Card reader integrated No
Graphics
Discrete graphics card No
On-board graphics card Yes
Discrete graphics card model Not available
On-board GPU manufacturer Intel
On-board graphics card model Intel® UHD Graphics 630
On-board graphics card base frequency 350 MHz
On-board graphics card dynamic frequency (max) 1150 MHz
Maximum on-board graphics card memory 64 GB
Number of displays supported (on-board graphics) 3
On-board graphics card DirectX version 12.0
On-board graphics card OpenGL version 4.5
On-board graphics card ID 0x3E92
Network
Ethernet LAN Yes
Ethernet LAN data rates 10,100,1000 Mbit/s
Cabling technology 10/100/1000Base-T(X)

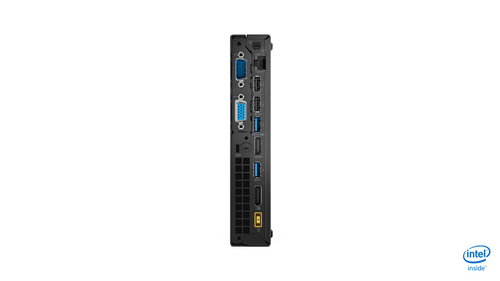

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2
DVI port No
HDMI ports quantity 1
DisplayPorts quantity 1
Ethernet LAN (RJ-45) ports 1
Microphone in Yes
Headphone outputs 1
Combo headphone/mic port Yes
Design
Chassis type Mini PC
Volume 1 L
Placement supported Horizontal/Vertical
VESA mounting Yes
Product colour Black
Performance
Motherboard chipset Intel Q370
Password protection Yes
Product type Mini PC
Software
Operating system installed Windows 10 Pro
Operating system architecture 64-bit
Processor special features
Intel 64 Yes
Enhanced Intel SpeedStep Technology Yes
Embedded options available No
Intel® InTru™ 3D Technology Yes
Intel® Clear Video HD Technology (Intel® CVT HD) Yes
Intel Clear Video Technology Yes
Intel VT-x with Extended Page Tables (EPT) Yes
Intel TSX-NI Yes
Idle States Yes
Thermal Monitoring Technologies Yes
Intel Stable Image Platform Program (SIPP) Yes
Intel® AES New Instructions (Intel® AES-NI) Yes
Intel® Secure Key Yes
Intel® OS Guard Yes
Intel Trusted Execution Technology Yes
Execute Disable Bit Yes
Intel Software Guard Extensions (Intel SGX) Yes
Processor package size 37.5 x 37.5 mm
Supported instruction sets SSE4.1, SSE4.2, AVX 2.0
Scalability 1S
CPU configuration (max) 1
Thermal solution specification PCG 2015A
Intel Virtualization Technology for Directed I/O (VT-d) Yes
Intel Virtualization Technology (VT-x) Yes
Processor ARK ID 191051
Intel® Turbo Boost Technology 2.0
Intel® Hyper Threading Technology (Intel® HT Technology) No
Intel® Quick Sync Video Technology Yes
Intel® Identity Protection Technology (Intel® IPT) Yes
Certificates
Certification MIL-STD-810G
Weight & dimensions
Width 179 mm
Depth 182.9 mm
Height 34.5 mm
Weight 1.32 kg
Packaging content
Display included No
We do not guarantee the completeness and accuracy of the product details, which are obtained from outside sources.
