TP-Link EAP211-BRIDGE KIT bridge/repeater
EAP211-BRIDGE KIT - 8885020627060

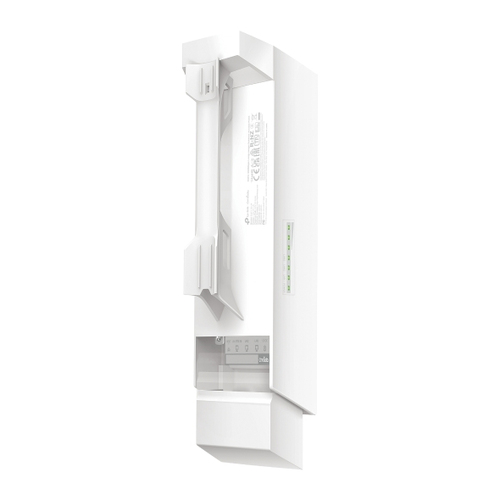

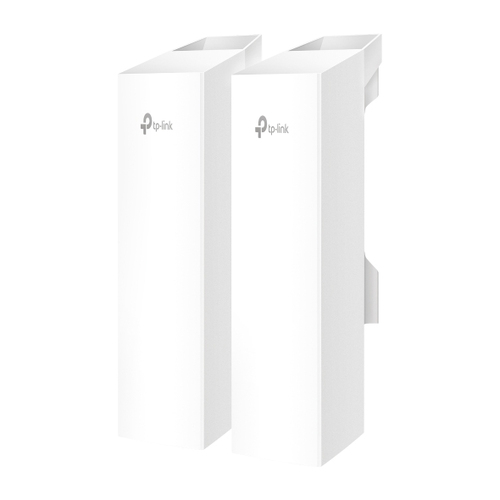

TP-Link EAP211-BRIDGE KIT bridge/repeater Network bridge 867 Mbit/s White
- Brand
- TP-Link
- Product code
- EAP211-BRIDGE KIT
- SKU
- R8UEH8LRBJE5K
- EAN/GTIN
- 8885020627060
- 802.11ac for up to 867 Mbps on the 5 GHz wireless data rate.*1
- Ideal for long-range wireless transmission up to 1 km.*2
- Auto-pairing and agile LEDs for efficient deployment

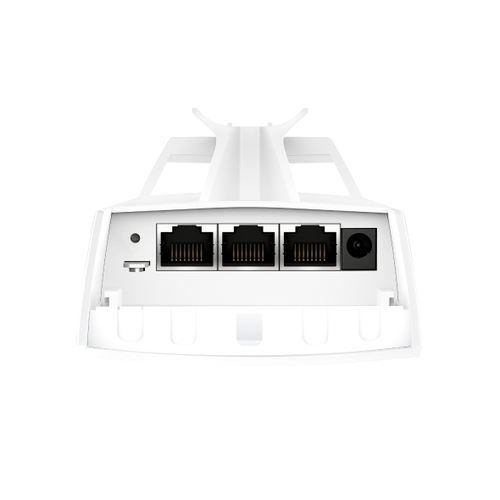

- 3× Gigabit Ethernet ports for more high-speed IP camera connections
- Supports Omada SDN for remote and centralized management
- IP65 weatherproof enclosure and 6kV lightning protection ensure all-weather suitability.*3
- Supports Passive PoE for flexible deployment (adapter included)
€125.13
(Inc. VAT)
(Delivery 2-4 working days)
3x Gigabit Ethernet Ports, 12V DC / 24V Passive PoE, IP65, 1000m, IEEE 802.11 a/b/g/n/ac, 5 GHz: Up to 867 Mbps
TP-Link EAP211-BRIDGE KIT. Maximum data transfer rate: 867 Mbit/s, Maximum transfer distance: 1000 m. Antenna design: Internal, Antenna type: 2x2, Antenna gain level (max): 7 dBi. Top Wi-Fi standard: Wi-Fi 5 (802.11ac), WLAN data transfer rate (max): 867 Mbit/s, Frequency band: 5 GHz. Ethernet LAN interface type: Gigabit Ethernet, Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Cabling technology: 10/100/1000Base-T(X). Product type: Network bridge, Mounting type: Pole, Product colour: White
Specifications
Data transmission
Maximum data transfer rate
867 Mbit/s
Maximum transfer distance
1000 m
Antenna
Antenna design
Internal
Antenna type
2x2
Antenna gain level (max)
7 dBi
Wireless LAN features
Wi-Fi
Yes
Top Wi-Fi standard
Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)
867 Mbit/s
Frequency band
5 GHz
Network
Ethernet LAN
Yes
Ethernet LAN interface type
Gigabit Ethernet
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Cabling technology
10/100/1000Base-T(X)
Ports & interfaces
Ethernet LAN (RJ-45) ports
3
Management features
Web-based management
Yes
Features
Product type
Network bridge
Mounting type
Pole
Product colour
White
LED indicators
Power
Reset button
Yes
International Protection (IP) code
IP65
Power
Power source type
DC, PoE
DC input voltage
12 V
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) voltage
24 V
Operational conditions
Operating temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Certificates
Certification
CE, FCC, RoHS
Weight & dimensions
Width
224 mm
Depth
79 mm
Height
60 mm
