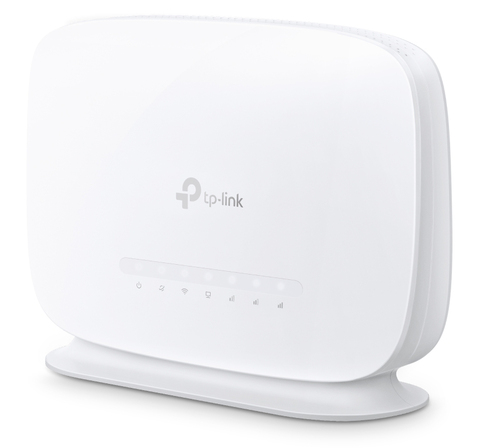

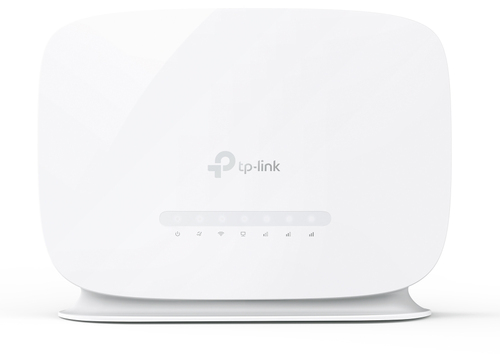

TP-Link Archer AC1200 wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) 4G White
- Brand
- TP-Link
- Product Family
- Archer
- Product code
- ARCHER MR515
- SKU
- A3IM6V9MARBS8
- EAN/GTIN
- 8885020623277
- Advanced 4G+ Router – supports 4G+ Cat6 to boost the data speeds of up to 300 Mbps
- Plug a SIM card and play – no configurations needed, compatibility of SIM cards in 100+ countries are assured by years of field tests
- MU-MIMO supported – simultaneous data streams increase WiFi throughput and network efficiency
- EasyMesh-Compatible – Flexibly Create Whole Home Mesh WiFi
- Better Signal for Connections Everywhere – enjoy stable and efficient connections to every device
- Full Gigabit Ports – provides reliable wired connections for bandwidth-intensive devices such as game consoles and IPTVs
- Wi-Fi Router Mode – plug an Ethernet cable into the WAN/LAN port for flexible access as a backup option if you can't get a 4G connection
Product Info
A 4G+ Router for Flexible Connections
AC1200 Dual Band Wi-Fi LTE Router
Fast 4G+ Connection Where You Need It
Simple, just one SIM card
Traditional broadband or cable installation is expensive and time-consuming for your vacation home, farm, or suburban warehouse. Long contract periods also create headaches for short-rentals, pop-up venues, and temporary shops to access the internet. Archer MR515 ensures a comfortable and no-block network installation. Plug in your SIM card and enjoy high-speed internet!

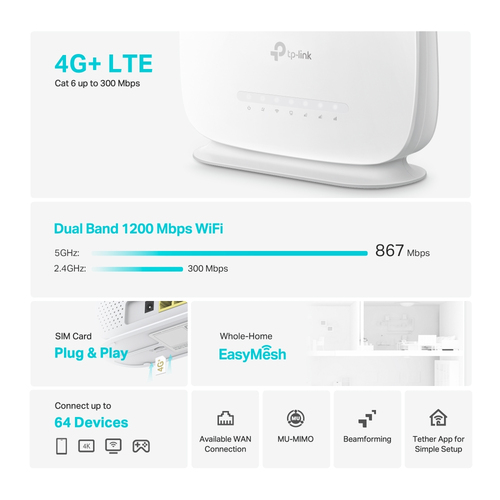

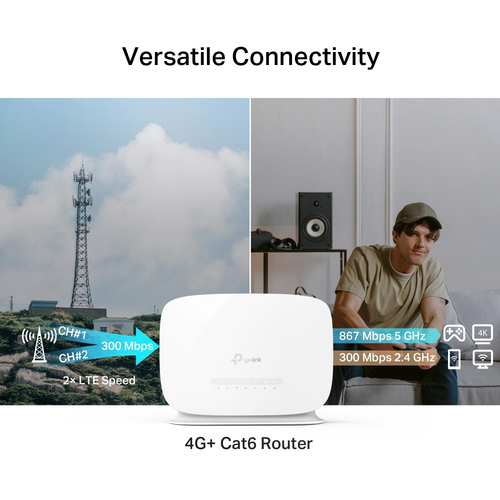

Superfast 4G+ LTE Speed for Reliable Wi-Fi
Thanks to 4G+ Carrier Aggregation technology which combines different carrier signals for even faster bandwidth, MR515 boosts 300 Mbps download speeds fulfills your devices’ needs. It can also share a dual-band Wi-Fi network with speeds of 867 Mbps on 5 GHz for bandwidth-intensive tasks like HD streaming and gaming and 300 Mbps on 2.4 GHz for internet surfing, email, and social media.
Ideal for Small Business with 64 Devices Connection Simultaneously
Easily share a 3G/4G connection with up to 64 wireless devices, such as phones, tablets, and laptops, at the same time. 3 LAN ports stand ready to provide internet for wired devices like desktop computers.

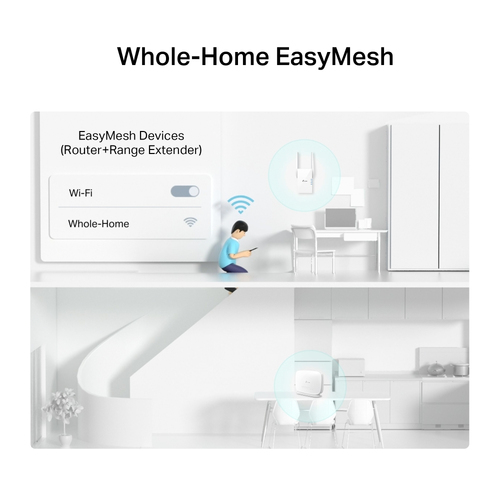

Flexibly Create Whole Home Mesh WiFi
If you have any dead zones at home, just add another EasyMesh-compatible router/range extender to further form your whole home multi-gigabit mesh WiFi. No more searching for a stable connection.

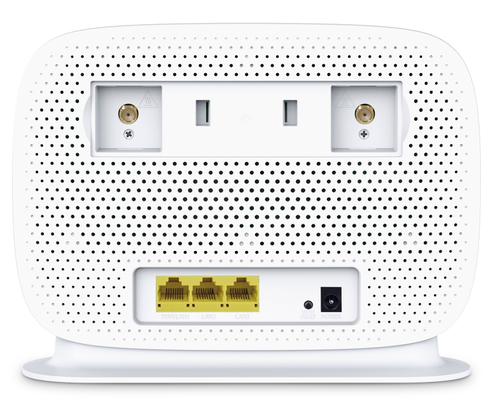

Available WAN Connection Backup
With a fully functional WAN/LAN port, Archer MR515 can work as a router that is compatible with cable, fiber, and DSL modems, or provide internet for wired devices. The reliable access is for up to 64 devices Simultaneously.
Easy Setup and Use
Set up the Archer MR515 in minutes thanks to its intuitive web interface and the powerful Tether app. Manage network settings, including Parental Controls and Access Control, from any Android or iOS device. Tether also provides Automatic Firmware Updates to always give your network the latest performance and security.
| WAN connection | |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | Yes |
| 3G/4G USB modem compatibility | No |
| WAN connection type | RJ-45 |
| Wireless LAN features | |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) | 867 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (first band) | 300 Mbit/s |
| WLAN data transfer rate (second band) | 867 Mbit/s |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Port forwarding | Yes |
| Port triggering | Yes |
| Dynamic DNS (DDNS) | Yes |
| Number of guest networks (2.4 GHz) | 1 |
| Number of guest networks (5 GHz) | 1 |
| VPN server | PPTP VPN, OpenVPN |
| VPN support | PPTP VPN, OpenVPN |
| Maximum Tx power (2.4 GHz) | 20 dBmW |
| Receiver sensitivity | 5 GHz: 11a 54M: -77 dBm 11ac HT20: -73 dBm 11ac HT40: -68 dBm 11ac HT80 : -64 dBm 11n HT20: -77 dBm 11n HT40: -73 dBm 2.4 GHz: 11g 54M: -74 dBm 11n HT20: -72 dBm 11n HT40: -69 dBm |
| Mobile network | |
| Mobile network generation | 4G |
| 3G standards | DC-HSPA+, HSPA, UMTS |
| 4G standard | LTE-TDD & LTE-FDD |
| UMTS bands supported | 850,900,2100 MHz |
| 4G bands supported | 700,800,850,900,1800,2100,2300,2500,2600 MHz |
| SIM card type | NanoSIM |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| USB port | Yes |
| Management features | |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Reset button | Yes |
| WPS push button | Yes |
| MU-MIMO technology | Yes |
| Security | |
| Security algorithms | 64-bit WEP, 128-bit WEP, WPA, WPA-Enterprise, WPA2-Enterprise, WPA3, WPA3-Enterprise |
| Firewall | Yes |
| Access Control List (ACL) | Yes |
| DoS attack prevention | Yes |
| Filtering | Yes |
| URL filtering | Yes |
| System event log | Yes |
| DMZ support | Yes |
| Protocols | |
| DHCP server | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Design | |
| Product colour | White |
| Product type | Portable router |
| Certificates | |
| Compliance certificates | CE, RoHS |
| Packaging content | |
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Quick installation guide | Yes |
| Antenna | |
| Antenna design | Internal |
| Antennas quantity | 6 |
| Features | |
| Built-in processor | Yes |
| Number of simultaneously connected devices (max) | 64 |
| Firmware upgradeable | Yes |
| Power | |
| Power source type | AC |
| Output voltage | 12 V |
| Output current | 1.5 A |
| Weight & dimensions | |
| Width | 212 mm |
| Depth | 157.5 mm |
| Height | 57 mm |
