TP-Link AC2300 Wireless MU-MIMO Gigabit Router
- Brand
- TP-Link
- Product code
- ARCHER C2300
- SKU
- HZB5ZAJAH3LM8
- EAN/GTIN
- 6935364097363
- Faster Wi-Fi Speeds - Dual band speeds up to 1733 Mbps on 5 GHz, 600 Mbps on 2.4 GHz
- Powerful Processing - Dual-Core CPU delivers power to maintain peak performance for all your devices
- More Devices - MU-MIMO serves multiple devices at once, reducing wait time and increasing Wi-Fi throughput
- Ultra Range - Beamforming + Power Amplifier + High-performance Antennas, giving you even greater coverage
- Smoother Performance - Smart Connect intelligently assigns devices to the best available band
- Secure Remote Access - OpenVPN & PPTP VPN server for secure remote access to your home network via the internet
- Easy Setup - Intuitive Phone UI and Tether app for quick network setup within minutes
Product Info
Best for Simultaneous
4K Streaming and Gaming
AC2300 Wireless MU-MIMO Gigabit Router
Ultra-Fast Dual-Band WiFi
Archer C2300 delivers super-fast dual-band Wi-Fi with speeds of up to 1733 Mbps on the 5 GHz band and 600 Mbps on the 2.4 GHz band. Exceptional wireless performance enables online gaming and HD video streaming at the same time, while large files can be shared with multiple devices. All that are at a great price for all kinds of homes.

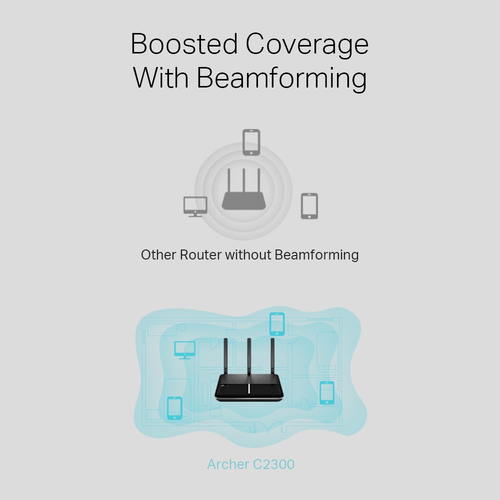

Boosted WiFi Coverage
Equipped with three external antennas and one internal antenna,
Archer C2300 creates stronger and more reliable networks for all to enjoy in your home. Beamforming technology concentrates the Wi-Fi signal towards your connected devices, providing better Wi-Fi range and network performance.

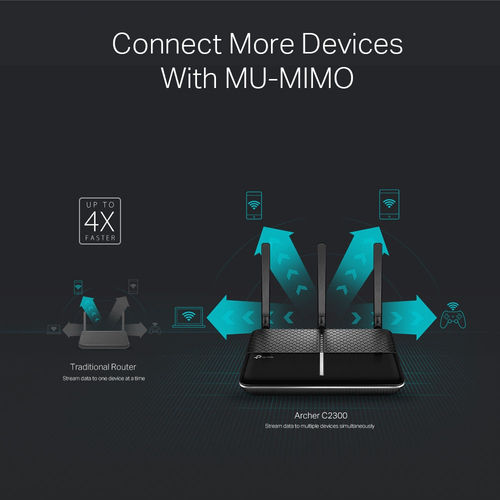

MU-MIMO and Smart Connect for Better Connections
MU-MIMO lets the Archer C2300 talk to several devices at once, and Smart Connect automatically places each device on the best available Wi-Fi band. With both working together, everyone can hop online at the same time without having to wait, and each device can always get the best connection.
AC Wave 2 for Better Home Entertainment
Archer C2300 supports many devices when you invite friends to your large house to entertain. It can maintain multiple simultaneous HD streaming, online gaming and other content consumption with minimum lag.
Media Sharing for More Fun

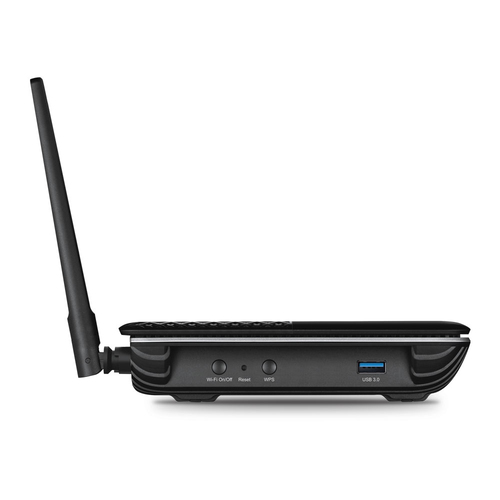

One USB 3.0 port makes it easy to share photos, videos, and music on your home network. You can also access your storage via secure VPN when you away from home.
Intuitive Tether App for Easy Management
Setup and manage your Wi-Fi through the free TP-Link Tether app, available for both Android and iOS. Tether’s simple layout lets you quickly access all of your Wi-Fi settings on your phone or tablet.
Ready for Today and Tomorrow's Smart Home
With the growing number of devices in today's home, everyone deserves a smarter and easier way to bring all your products together. Utilize Amazon Alexa to control everything via voice commands to enjoy truly intelligent life.
| WAN connection | |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | Yes |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| WAN connection type | RJ-45 |
| Wireless LAN features | |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) | 1733 Mbit/s |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| WLAN data transfer rate (first band) | 600 Mbit/s |
| WLAN data transfer rate (second band) | 1733 Mbit/s |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Port forwarding | Yes |
| Port triggering | Yes |
| Dynamic DNS (DDNS) | Yes |
| Number of guest networks (2.4 GHz) | 1 |
| Number of guest networks (5 GHz) | 1 |
| VPN support | OpenVPN, PPTP |
| Mobile network | |
| 3G | No |
| 4G | No |

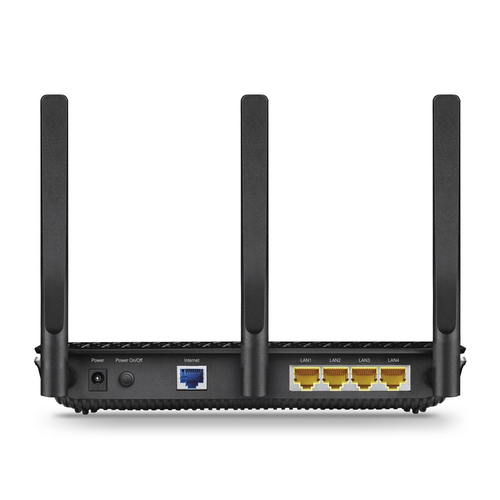

| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 4 |
| USB port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Memory card slot(s) | No |
| DC-in jack | Yes |
| Management features | |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| WPS push button | Yes |
| MU-MIMO technology | Yes |
| Security | |
| Security algorithms | 64-bit WEP, 128-bit WEP, WEP, WPA, WPA-PSK, WPA2 |
| Firewall | Yes |
| Firewall security | DoS, SPI Firewall, IP and MAC Address Binding |
| Guest access | Yes |
| Access Control List (ACL) | Yes |
| Port-based Network Access Control (PNAC) | Yes |
| Parental control | Yes |
| DMZ support | Yes |
| Protocols | |
| DHCP client | Yes |
| DHCP server | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Supported network protocols | IPv4, IPv6 |
| Design | |
| Product colour | Black |
| Wall mountable | Yes |
| LED indicators | LAN, Power, Status, System, WAN, WLAN |
| On/off switch | Yes |
| Product type | Tabletop router |
| Packaging content | |
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Quick installation guide | Yes |
| Antenna | |
| Antenna design | Internal & external |
| Antennas quantity | 4 |
| Receive power | 5GHz: 11ac80M MCS9: -64dBm, 11ac80M MCS0: -89dBm 11ac40M MCS9: -68dBm, 11ac40M MCS0: -92dBm 11ac20M MCS8: -72dBm, 11ac20M MCS0: -95dBm 54M: -78dBm, 6M: -96dBm 2.4GHz: 11n40M MCS9: -68dBm, 11n40M MCS0: -93dBm 11n20M MCS8: -73dBm, 11n20M MCS0: -96dBm 54M: -78dBm, 6M: -97dBm |
| Transmit power | CE: <20dBm(2.4GHz) <23dBm(5.15GHz~5.35GHz) <30dBm(5.47GHz~5.725GHz) FCC: <30dBm(2.4GHz & 5.15GHz~5.25GHz & 5.725GHz~5.825GHz) <24dBm(5.25GHz-5.35GHz & 5.47GHz-5.725 GHz) |
| Features | |
| Built-in processor | Yes |
| Processor cores | 2 |
| Certification | CE, FCC, RoHS |
| Power | |
| Power source type | DC |
| Output voltage | 12 V |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 90 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Weight & dimensions | |
| Width | 216 mm |
| Depth | 164 mm |
| Height | 36.8 mm |
| Packaging data | |
| Package type | Box |
