Neomounts WL40S-850BL16 TV mount wall 40-70" - full motion - fast installation
- Brand
- NEOMOUNTS
- Product code
- WL40S-850BL16
- SKU
- KNSM4NYN7MKH2
- EAN/GTIN
- 8717371448875
- Maximum weight capacity: 45 kg
- Minimum screen size: 101.6 cm (40") Maximum screen size: 177.8 cm (70") Wall
- Minimum VESA mount: 200 x 100 mm Maximum VESA mount: 600 x 400 mm
- Number of displays supported: 1
- Tilt adjustment Rotating
- Cable management
- Steel Black
Product Info

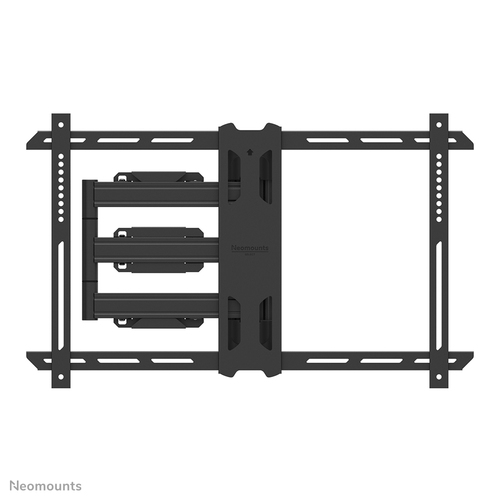

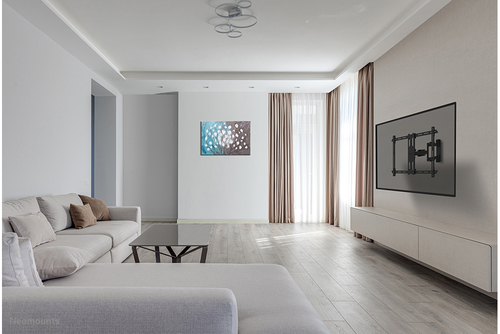

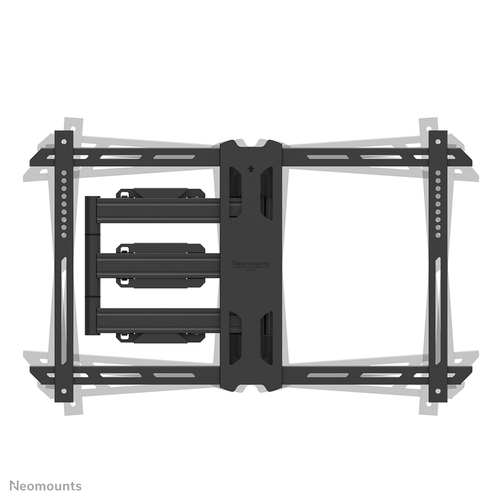

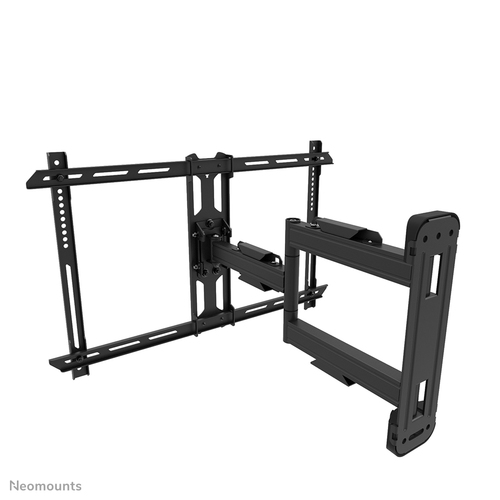

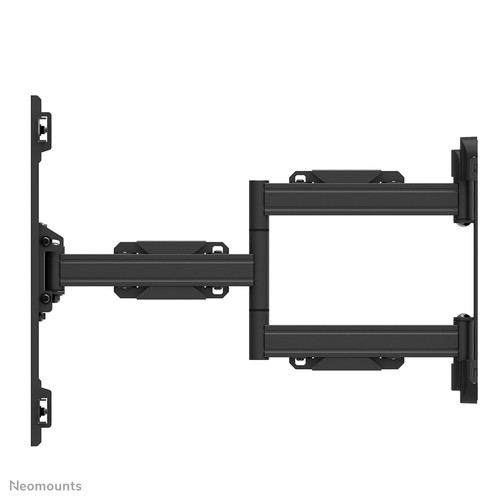

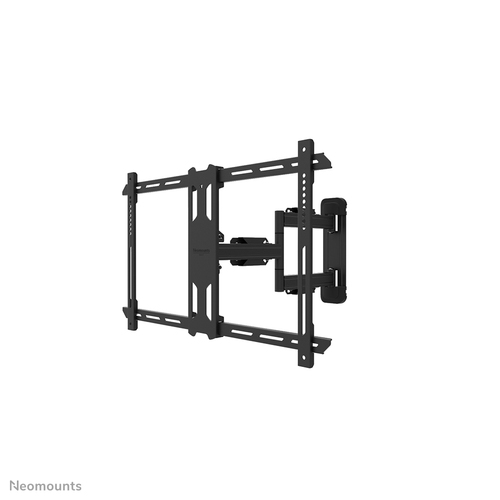

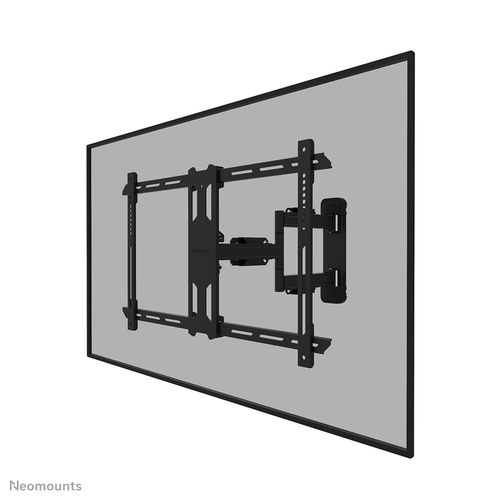

The Neomounts WL40S-850BL16 LEVEL is a full motion wall mount for flat screens up to 70" with a maximum weight capacity of 45 kg. The versatile tilt (14°) and swivel (40°) technology allows you to create the optimum viewing angle. The mount can be levelled for the perfect installation.

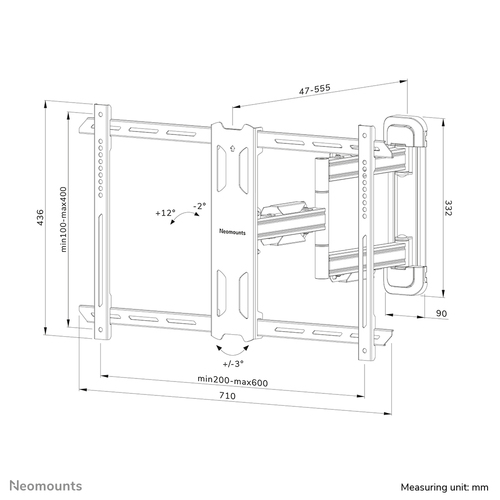

The LEVEL-850 wall mount has a depth of 4,7-55,5 cm and is suitable for screens that meet VESA hole pattern 200x100 to 600x400mm.

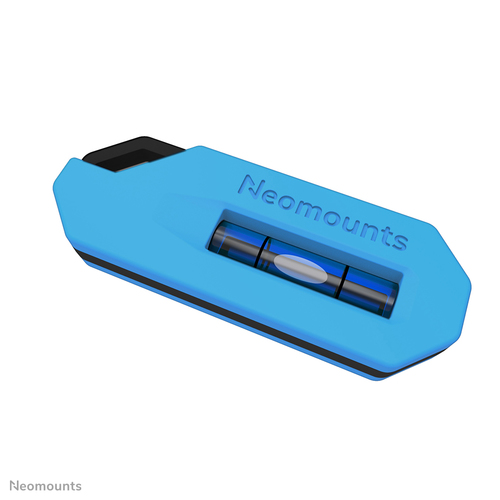

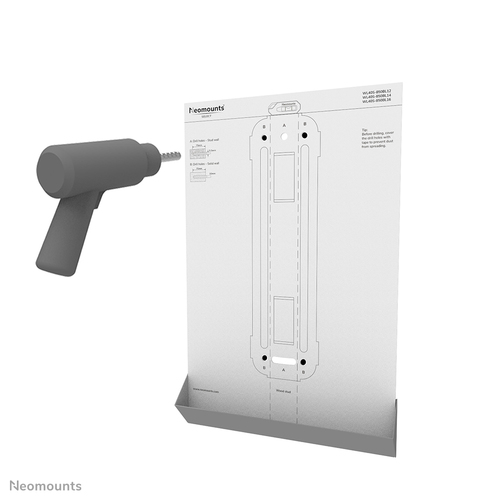

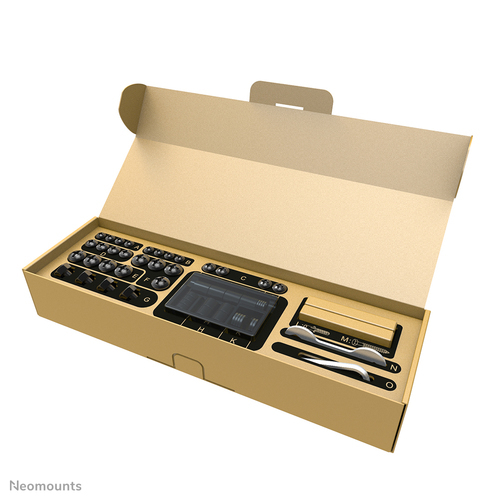

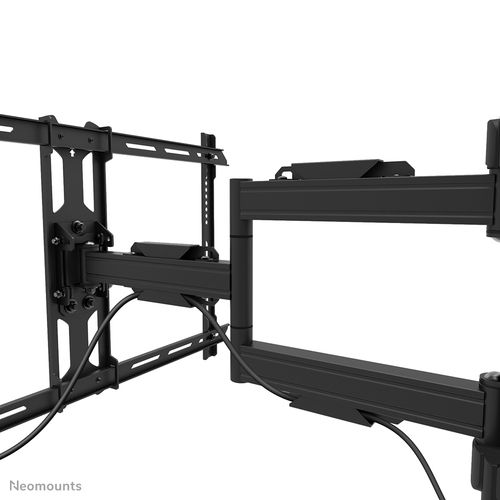

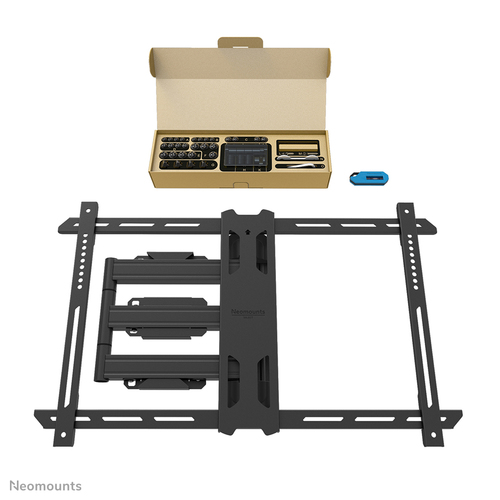

The WL40S-850BL16 features a nifty Easy-release system, that allows you to attach the TV in a wink of an eye. A separate spirit level tool is included with the wall mount, as well as a fixing template, to ensure easy installation of the mount. The mount is equipped with high quality steel cable management, to secure any loose cables at the back of the screen.
| Mounting | |
|---|---|
| Minimum screen size | 101.6 cm (40") |
| Maximum weight capacity | 45 kg |
| Maximum screen size | 177.8 cm (70") |
| Minimum VESA mount | 200 x 100 mm |
| Maximum VESA mount | 600 x 400 mm |
| Panel mounting interface | 200 x 100,200 x 200,200 x 300,200 x 400,300 x 100,300 x 200,300 x 300,400 x 200,400 x 300,400 x 400,440 x 400,600 x 200,600 x 300,600 x 400 |
| Number of displays supported | 1 |
| Mounting type | Wall |
| Ergonomics | |
| Height adjustment | No |
| Tilt adjustment | Yes |
| Tilt angle range | -2 - 12° |
| Swivelling | Yes |
| Swivel angle | 40° |
| Swivel angle range | -45 - 45° |
| Rotating | Yes |
| Cable management | Yes |
| Type | Full motion |
| Distance to the wall (max) | 55.5 cm |
| Distance to the wall (min) | 4.7 cm |
| Design | |
| Product colour | Black |
| Housing material | Steel |
| Technical details | |
| Country of origin | China |
| Package net weight | 7.8 kg |
| Quantity per pack | 1 pc(s) |
| Lockable | Not lockable |
| Packaging content | |
| Mounting kit | Yes |
| Number of wrenches included | 1 |
| Hex key included | Yes |
| Weight & dimensions | |
| Width | 710 mm |
| Depth | 47 mm |
| Height | 436 mm |
| Packaging data | |
| Package width | 736 mm |
| Package depth | 366 mm |
| Package height | 60 mm |
| Logistics data | |
| Master (outer) case width | 756 mm |
| Master (outer) case length | 198 mm |
| Master (outer) case height | 386 mm |
| Master (outer) case gross weight | 24.1 kg |
| Master (outer) case net weight | 18.9 kg |
| Products per master (outer) case | 3 pc(s) |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 60 pc(s) |
