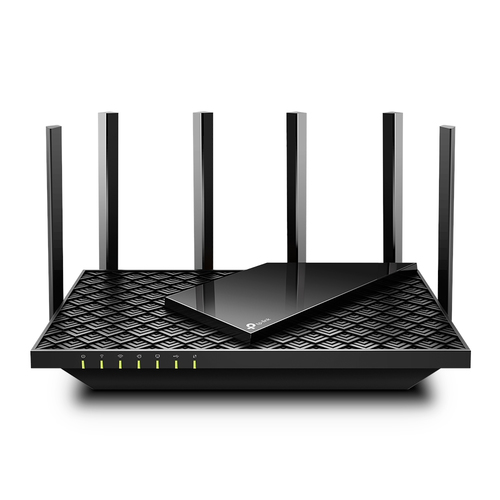

TP-Link Archer AX5400 Dual-Band Gigabit Wi-Fi 6 Router, Black
- Brand
- TP-Link
- Product Family
- Archer
- Product code
- ARCHER AX73
- SKU
- GDXWLYPN689A4
- EAN/GTIN
- 6935364010270
- Equips with the top structure of 4T4R and HE160 on the 5 GHz band
- Supports mu-mimo and ofdma to reduce congestion
- Antennas and Beamforming ensure broad coverage
- Premium security services keep your home network safe
- Improved vents area unleash the full power of the whole machine
Product Info
The latest generation of Wi-Fi technology brings faster speeds, less lag and higher capacity, enabling more simultaneous connections on your home network. Enjoy stable Wi-Fi connections, even in the kitchen and bedroom. High-Power FEM, 6 x Antennas, Beamforming and 4T4R structures combine to adapt Wi-Fi coverage to perfectly fit your home and concentrate signal strength towards your devices. HomeShield will record abnormal incoming traffic and the device will automatically block requests from enlisted IPs. Manage online time and block inappropriate content to keep your family safe online. 5400 Mbps wifi for faster browsing, streamings and downloading, all at the same time. Fully Featured wi-fi 6 equips with the top structure of 4t4r and he160 on the 5 ghz band to enable 4.8 gbps ultra-fast connection. Connect 200+ devicesSection supports mu-mimo and ofdma to reduce congestion and quadruple the average throughput. Extensive coverage 6 x antennas and beamforming ensure broad coverage. HomeShield tp-link's premium security services keep your home network safe with cutting-edge features for network and iot protection. More Vents, less heat improved vents area unleash the full power of the whole machine. USB Sharing 1 x usb 3.0 port enables easy media sharing and private cloud building. Easy Setup set up the router in minutes with tether app. Link Aggregation static link aggregation (lag) available with 2 x lan ports.
| WAN connection | |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| WAN connection type | RJ-45 |
| Wireless LAN features | |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) | 5400 Mbit/s |
| Wi-Fi standards | Wi-Fi 4 (802.11n), 802.11b, 802.11a, 802.11g, Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (first band) | 4804 Mbit/s |
| WLAN data transfer rate (second band) | 574 Mbit/s |
| Modulation | 1024-QAM, OFDM |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g |
| Port forwarding | Yes |
| Port triggering | Yes |
| Dynamic DNS (DDNS) | Yes |
| Number of guest networks (2.4 GHz) | 1 |
| Number of guest networks (5 GHz) | 1 |
| Wireless Distribution System (WDS) bridge | Yes |
| Support Samba (storage) | Yes |
| Built-in FTP server | Yes |
| Media server | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 4 |
| USB port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Management features | |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| WPS push button | Yes |
| MU-MIMO technology | Yes |
| Security | |
| Security algorithms | WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3 |
| Firewall | Yes |
| Access Control List (ACL) | Yes |
| Stateful Packet Inspection (SPI) | Yes |
| DoS attack prevention | Yes |
| Parental control | Yes |
| Filtering | Yes |
| MAC address filtering | Yes |
| IP address filtering | Yes |
| DMZ support | Yes |
| Network address translation (NAT) | Yes |
| Protocols | |
| DHCP client | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Supported network protocols | IPv4, IPv6 |
| Design | |
| Product colour | Black |
| On/off switch | Yes |
| Product type | Portable router |
| Country of origin | Malaysia |
| Packaging content | |
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Quick installation guide | Yes |
| Packaging content | 1 x TP-Link Archer AX5400 Dual-Band Gigabit Wi-Fi 6 Router, Black |
| Sustainability | |
| Sustainability compliance | Yes |
| Antenna | |
| Antenna design | External |
| Antennas quantity | 6 |
| Features | |
| Built-in processor | Yes |
| Processor frequency | 1500 MHz |
| Processor cores | 3 |
| Firmware upgradeable | Yes |
| Power | |
| Power source type | DC |
| Output voltage | 12 V |
| Output current | 2.5 A |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width | 272.5 mm |
| Depth | 147.2 mm |
| Height | 49.2 mm |
| Packaging data | |
| Package width | 124 mm |
| Package depth | 310 mm |
| Package height | 38 mm |
| Package weight | 800 g |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85176990 |
| Technical details | |
| Compliance certificates | RoHS, Federal Communications Commission (FCC), CE |
