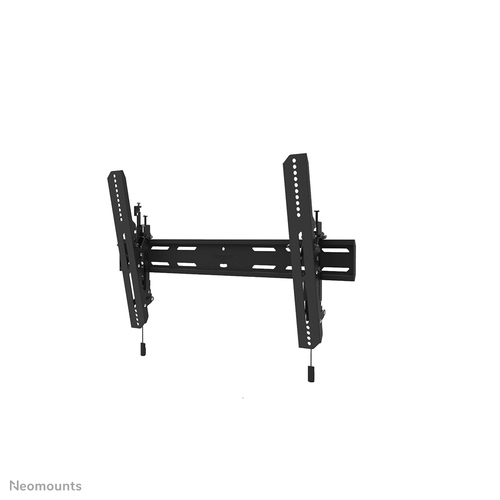

Neomounts WL35S-850BL16 TV mount wall 42-86" - tiltable - lockable - fast installation
- Brand
- NEOMOUNTS
- Product code
- WL35S-850BL16
- SKU
- XC32TUTZPWHNS
- EAN/GTIN
- 8717371448868
- Maximum weight capacity: 60 kg
- Minimum screen size: 106.7 cm (42") Maximum screen size: 2.18 m (86") Wall
- Minimum VESA mount: 100 x 100 mm Maximum VESA mount: 600 x 400 mm
- Number of displays supported: 1
- Height adjustment Tilt adjustment
- Steel Black
Product Info

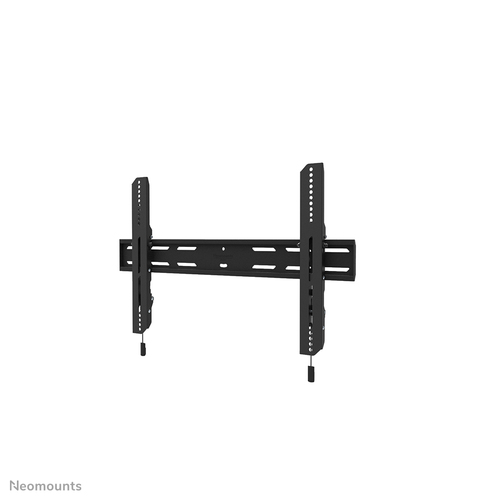

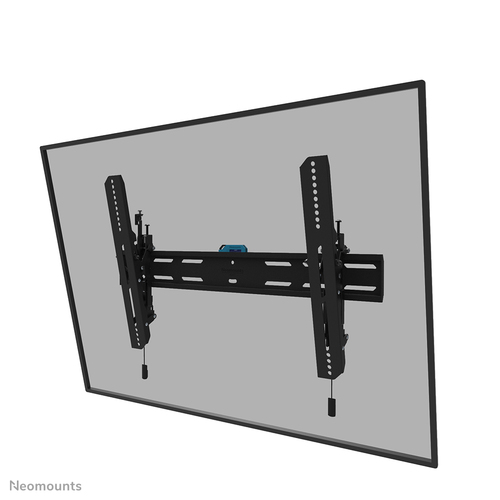

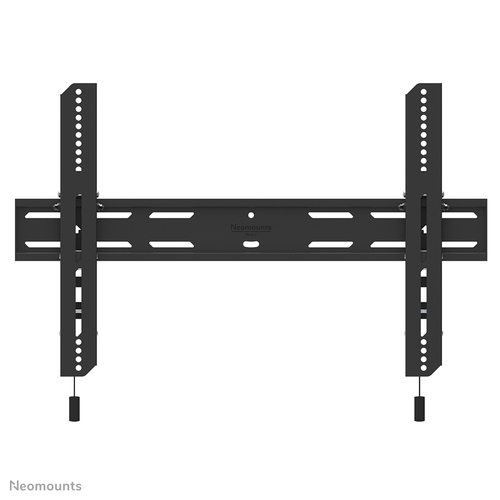

The Neomounts WL35S-850BL16 LEVEL is a tiltable wall mount for flat screens up to 86" with a maximum weight capacity of 60 kg. Height and level adjustment is available for the perfect installation.

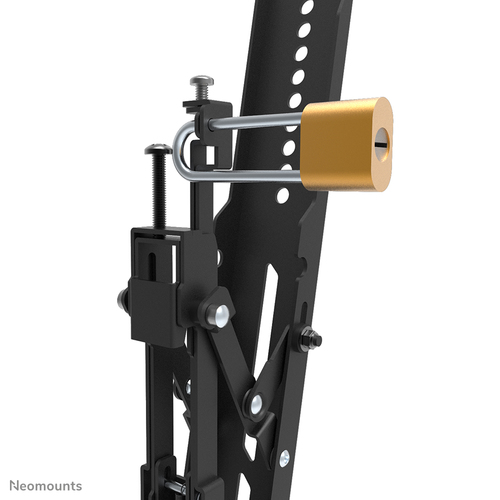

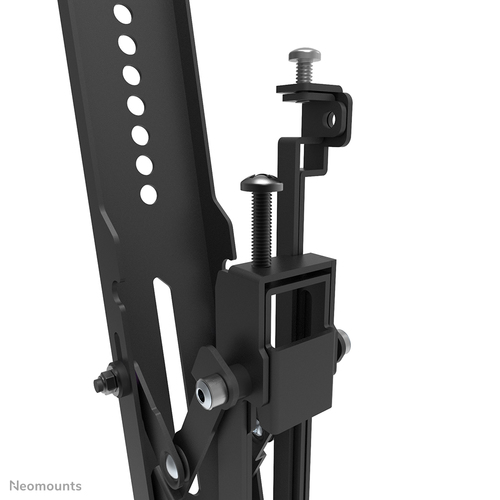

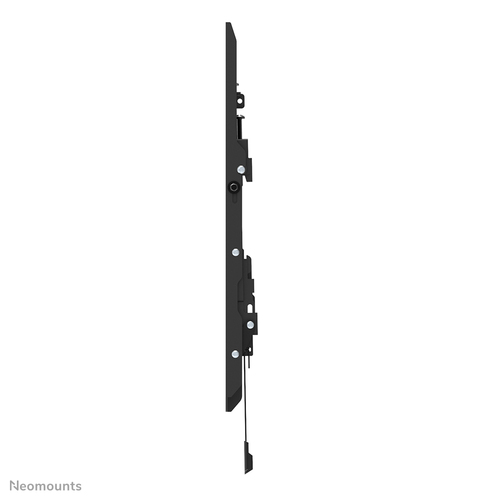

The LEVEL-850 wall mount has a depth of 3,3 cm and is suitable for screens that meet VESA hole pattern 100x100 to 600x400mm. It is possible to lock the wall mount using the included anti-theft screw or a padlock (not included).

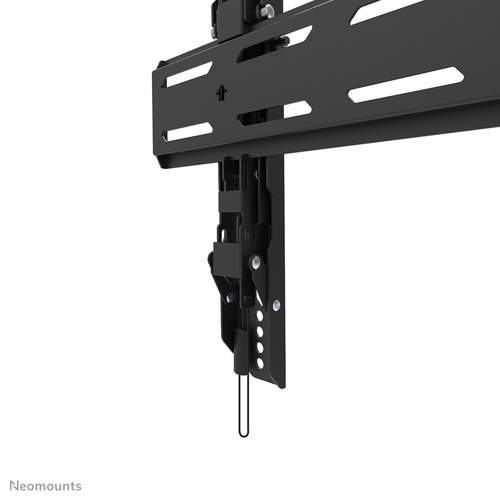

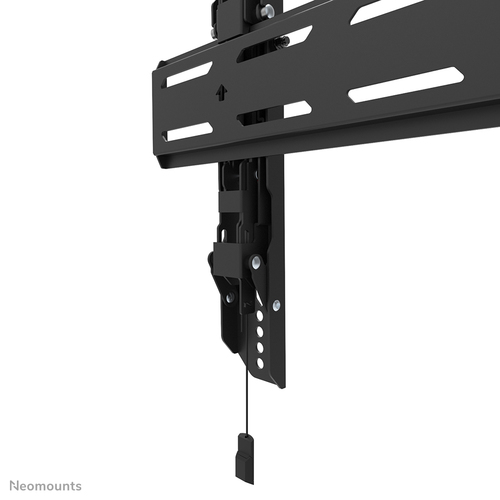

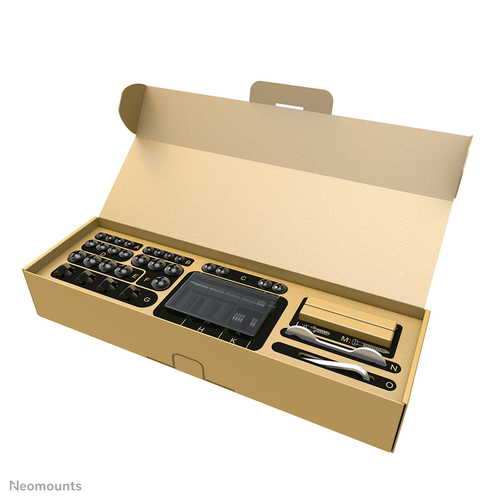

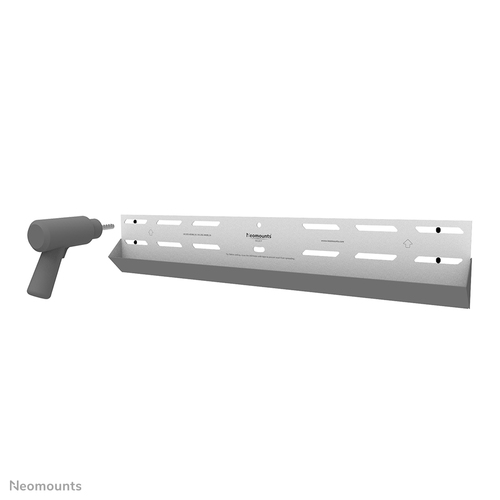

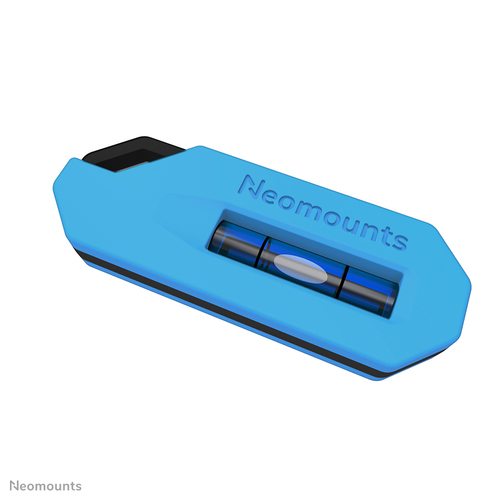

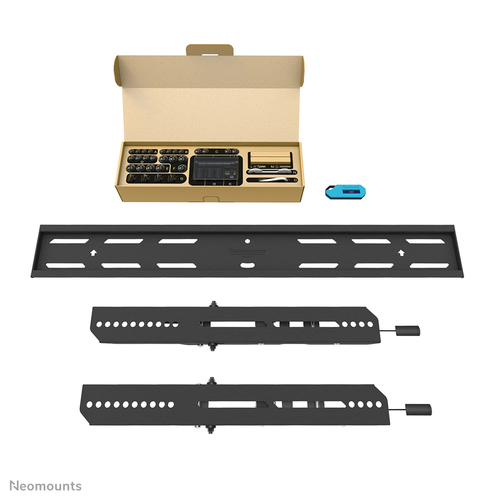

The WL35S-850BL16 features a nifty magnetic pull & release system, that allows you to attach the TV in a wink of an eye and secure the TV in safe and solid manner. Afterwards, the pull & release straps can be easily hidden behind the screen by clicking the magnet to the mount. A separate spirit level tool is included with the wall mount, as well as a fixing template, to ensure easy installation of the mount.
| Mounting | |
|---|---|
| Minimum screen size | 106.7 cm (42") |
| Maximum weight capacity | 60 kg |
| Maximum screen size | 2.18 m (86") |
| Minimum VESA mount | 100 x 100 mm |
| Maximum VESA mount | 600 x 400 mm |
| Panel mounting interface | 100 x 100,100 x 150,100 x 200,120 x 120,200 x 100,200 x 200,200 x 300,200 x 400,300 x 100,300 x 200,300 x 300,350 x 350,400 x 200,400 x 300,400 x 400,440 x 400,500 x 400,600 x 200,600 x 300,600 x 400 |
| Number of displays supported | 1 |
| Mounting type | Wall |
| Ergonomics | |
| Height adjustment | Yes |
| Height adjustment range | 0 - 20 mm |
| Tilt adjustment | Yes |

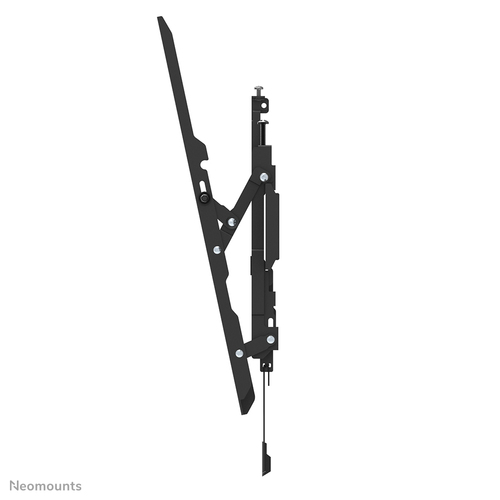

| Tilt angle range | 0 - 12° |
| Distance to the wall (max) | 3.5 cm |
| Design | |
| Product colour | Black |
| Housing material | Steel |
| Technical details | |
| Country of origin | China |
| Package net weight | 4 kg |
| Quantity per pack | 1 pc(s) |
| Lockable | Security screw included |
| Weight & dimensions | |

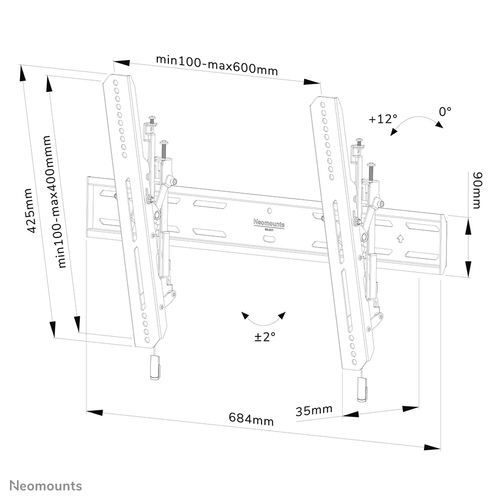

| Width | 684 mm |
| Depth | 36 mm |
| Height | 425 mm |
| Packaging data | |
| Package width | 704 mm |
| Package depth | 158 mm |
| Package height | 74 mm |
| Logistics data | |
| Master (outer) case width | 724 mm |
| Master (outer) case length | 315 mm |
| Master (outer) case height | 180 mm |
| Master (outer) case gross weight | 16.7 kg |
| Master (outer) case net weight | 13.6 kg |
| Products per master (outer) case | 4 pc(s) |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 100 pc(s) |
