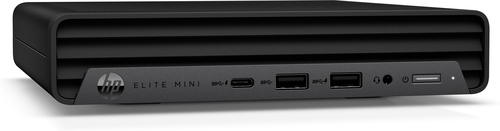

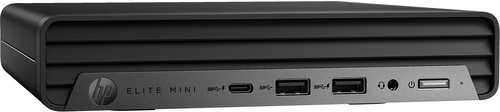

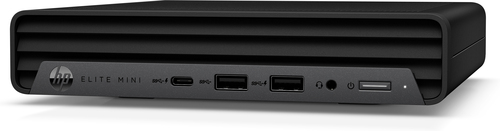

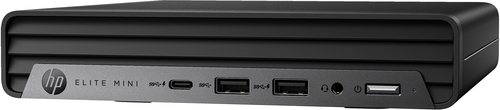

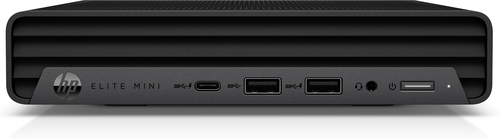

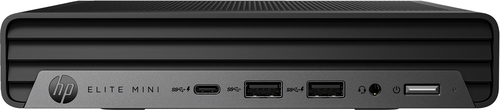

HP Elite Mini 800 G9 Intel® Core™ i7 i7-13700T 16 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro Mini PC Black
- Brand
- HP
- Product Family
- Elite Mini
- Product code
- 5M9Q0EA#ABU
- SKU
- 98HAKA47X3L2H
- EAN/GTIN
- 197498585161
- Intel® Core™ i7-13700T (up to 4.9 GHz with Intel® Turbo Boost Technology, 30 MB L3 cache, 16 cores, 24 threads)
- Windows 11 Pro
- Intel® UHD Graphics 770
- 16 GB memory; 512 GB SSD storage
Product Info
A desktop that can travel
The HP Elite Mini 800 Desktop PC delivers the high-performance needed to develop complex presentations, crunch big numbers, and quickly create compelling content. Equipped with a powerful Intel® processor[2], responsive graphics, and smart deployment options, this is the right PC for big jobs done in small spaces.
Description
Small size. Big impact
Get breakthrough performance with the latest Intel® processor[2] and DDR5 memory.
Office and home deployment
Take the HP Elite Mini 800 home with you so you can stay productive in the hybrid work world.
Protected by HP Wolf Security
HP Wolf Security for Business creates a hardware-enforced, always-on, resilient defense.[6]
Help protect our shared future
At least 50 percent of all plastic used in this PC is post-consumer recycled plastic.[7]
Windows 11
Work anywhere without compromising on performance or security with Windows 11 powered by HP's collaboration and connectivity technology.
Security is your top priority
The HP Wolf Pro Security Edition provides preconfigured enterprise-level PC protection for small and medium sized businesses. [1]
Fast and efficient wireless LAN
The portability of your PC and the reliability of a fast connection determines where you can work. Get a fast and reliable connection in dense wireless environments with gigabit-speed Wi-Fi 6. [3]
HP Sure Sense
Malware is evolving rapidly and traditional antivirus can’t always recognize new attacks. Protect your PC against never-before-seen attacks with HP Sure Sense, which uses deep learning AI to provide exceptional protection against advanced malware.
Protect critical security processes
Keep your critical applications and processes running even if malware tries to shut them down with the self-healing protection of HP Sure Run.
Browse confidently
Help protect your PC from websites and read only Microsoft Office and PDF attachments with embedded malware, ransomware, or viruses with hardware-enforced security from HP Sure Click. [4]
Speed up the basics of IT management
The HP Manageability Integration Kit helps speed up image creation and management of hardware, BIOS, and security through Microsoft System Center Configuration Manager. [5]
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor generation | 13th gen Intel® Core™ i7 |
| Processor model | i7-13700T |
| Processor cores | 16 |
| Processor threads | 24 |
| Processor boost frequency | 4.9 GHz |
| Performance cores | 8 |
| Efficient cores | 8 |
| Performance-core Max Turbo Frequency | 4.8 GHz |
| Efficient-core Max Turbo Frequency | 3.6 GHz |
| Performance-core base frequency | 1.4 GHz |
| Efficient-core base frequency | 1 GHz |
| Processor cache | 30 MB |
| Processor cache type | L3 |
| Processor base power | 35 W |
| Maximum turbo power | 106 W |
| Memory | |
| Internal memory | 16 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 1 x 16 GB |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 4800 MHz |
| Storage | |
| Total storage capacity | 512 GB |
| Storage media | SSD |
| Optical drive type | No |
| Number of storage drives installed | 1 |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD memory type | TLC |
| SSD interface | PCI Express |
| NVMe | Yes |
| SSD form factor | M.2 |
| Graphics | |
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel UHD Graphics 770 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| WLAN controller manufacturer | Intel |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |

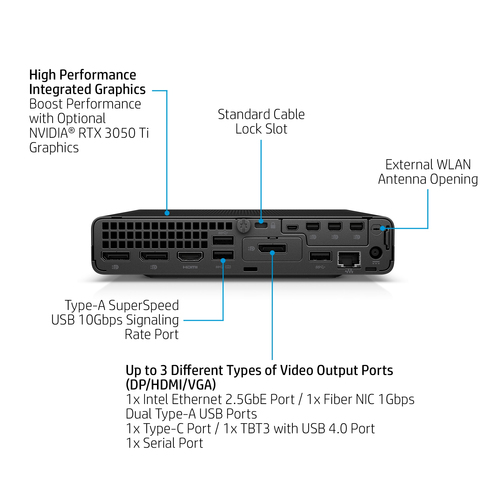

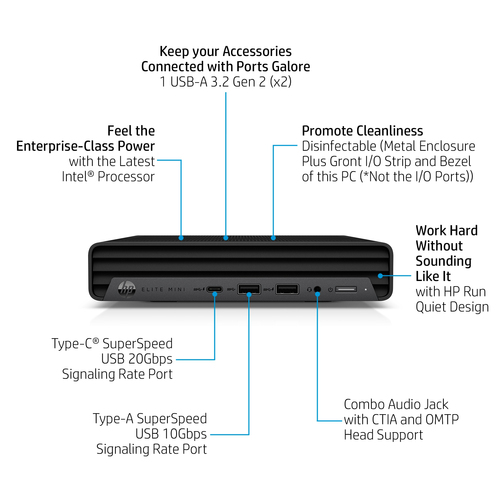

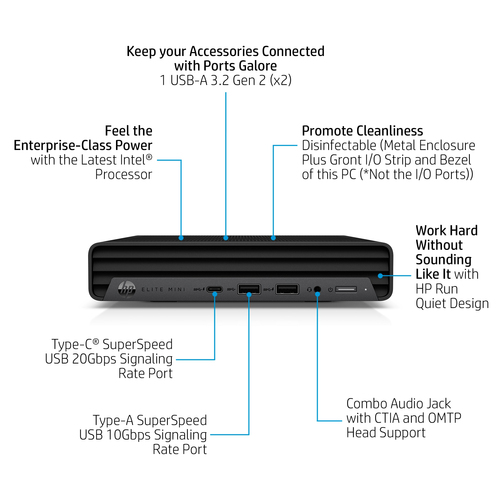

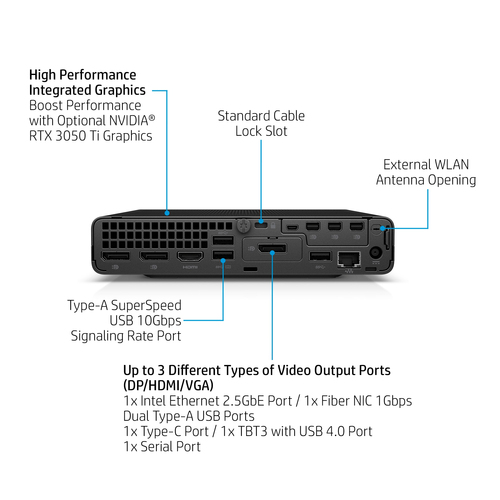

| Ports & interfaces | |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 5 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4 |
| Headphone outputs | 1 |
| Combo headphone/mic port | Yes |
| Design | |
| Chassis type | Mini PC |
| Placement supported | Horizontal |
| Number of 2.5" bays | 1 |
| Product colour | Black |
| Introduction year | 2023 |
| Performance | |
| Market positioning | Premium |
| Motherboard chipset | Intel Q670 |
| Audio chip | Realtek ALC3252 |
| Password protection | Yes |
| Password protection type | BIOS, Power on, User |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Product type | Mini PC |
| Software | |
| Operating system installed | Windows 11 Pro |
| Pre-installed software | HP Notifications; HP PC Hardware Diagnostics UEFI; HP Support Assistant; HP Connection Optimizer; HP Privacy Settings; HP PC Hardware Diagnostics Windows; HP Desktop Support Utilities; MyHP; HP Easy Clean; Touchpoint Customizer for Commercial; HP Easy Clean Keyboard Driver; HSA Fusion for Commercial; HSA Telemetry for Commercial |
| Bundled software | HP Wolf Pro Security Edition (1 year) |
| Brand-specific features | |
| HP Support Assistant | Yes |
| HP Security tools | HP Secure Erase; HP Sure Click; HP Sure Sense; Absolute Persistence module; HP Sure Admin; HP BIOSphere Gen6; HP Client Security Manager Gen7; HP Tamper Lock; HP Sure Start Gen7; HP Sure Run Gen5; HP Sure Recover Gen5; Trusted Platform Module TPM 2.0 Embedded Security Chip shipped with Windows 11 (Common Criteria EAL4+ certified)(FIPS 140-2 Level 2 certified) |
| HP Management tools | HP Client Catalog (download); HP Driver Packs (download); HP Image Assistant (download); HP Client Management Script Library (download); HP Connect for Microsoft Endpoint Manager; HP Manageability Integration Kit (download); HP Patch Assistant (download) |
| HP GTIN (EAN/UPC) | 197498585161 |
| HP segment | Business |
| Power | |
| Power supply | 90 W |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50 - 60 Hz |
| Operational conditions | |
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Sustainability | |
| Sustainability compliance | Yes |
| Sustainability certificates | ENERGY STAR |
| Weight & dimensions | |
| Width | 177 mm |
| Depth | 175 mm |
| Height | 34 mm |
| Weight | 1.42 kg |
| Package width | 498 mm |
| Package depth | 132 mm |
| Package height | 235 mm |
| Package weight | 2.95 kg |
| Packaging content | |
| Display included | No |
| Keyboard included | Yes |
| Keyboard connectivity | Wireless |
