TP-Link Omada BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point
€176.28
- Brand
- TP-Link
- Product Family
- Omada
- Product code
- EAP772
- SKU
- YYI81P14BZUCV
- BE9300 Tri-Band Wi-Fi 7 (5760 Mbps on 6 GHz + 2880 Mbps on 5 GHz + 574 Mbps on 2.4 GHz)
- A clear 6 GHz band brings cleaner and wider band resources
- 1× 2.5G Port unlocks the full potential of Wi-Fi 7
- 320 MHz bandwidth enables many more simultaneous transmissions
- Multi-Link Operation and Multi-RUs ensure the high performance of your network
- Advanced Functions: Centralized management, mesh, and AI roaming
Product Info
Ultra-Thin Enterprise WiFi 7 Access Point
- Next-Gen WiFi 7
- Wi-Fi Speeds up to 9214 Mbps
- Multi-Link Operation (MLO)
- 1× 2.5G RJ45 Port
- PoE Power
- Ultra-Thin Design
- Centralized Cloud Management
- Omada Mesh Technology

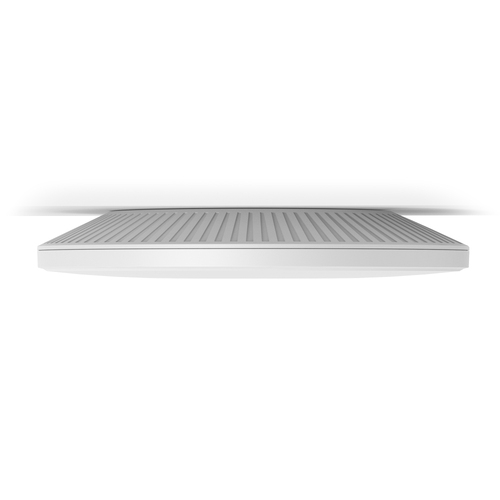

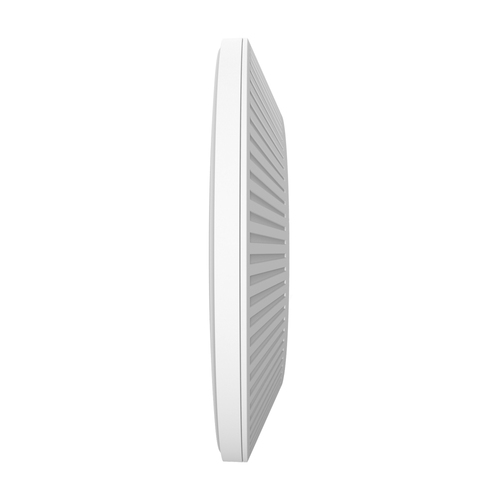

Ultra-Thin Design for Flexible Deployment
The overall design of EAP772 utilizes a thinner circular arc with a groove around the top cover, fitting closer to various installation surfaces such as ceilings. The compact internal hardware layout and heat-dissipating design ensure high performance with a sharp aesthetic.
Boosted Network Security
- Secure Guest Network with up to 24 SSIDs
- Boost Your Business with SMS Login
- WPA3 for Worry-Free Open Public Networks
- Rogue AP Detection
| Features | |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | Yes |
| Maximum data transfer rate | 9300 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2880 Mbit/s |
| Maximum data transfer rate (6 GHz) | 5760 Mbit/s |
| Ethernet LAN data rates | 2500 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n |
| Number of users | 380 user(s) |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| VLAN support | Yes |
| Airtime Fairness (ATF) | Yes |
| Quality of Service (QoS) support | Yes |
| BeamForming | Yes |
| Security | |
| Security algorithms | SNMP, SNMPv2, SNMPv3, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal |
| MAC address filtering | Yes |
| Service Set Identifier (SSID) features | Multiple SSIDs |
| Number of SSID supported | 24 |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Access Control List (ACL) | Yes |
| Management features | |
| Web-based management | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Design | |
| Placement | Ceiling, Wall |
| Product colour | White |
| LED indicators | Yes |
| Certification | CE, FCC, RoHS, IC |
| Antenna | |
| Antenna type | Internal |
| Weight & dimensions | |

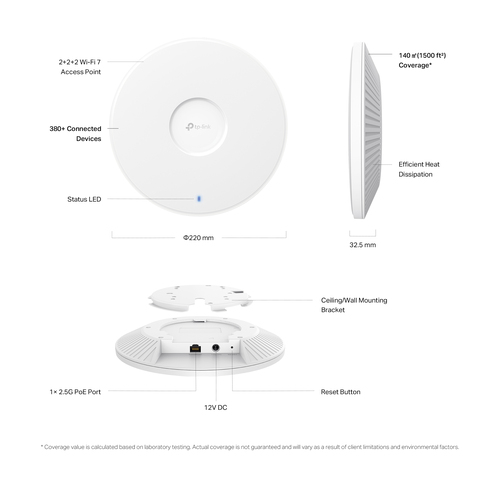

| Width | 220 mm |
| Depth | 220 mm |
| Height | 32.5 mm |
| Packaging content | |
| Number of products included | 1 pc(s) |
| AC adapter included | No |

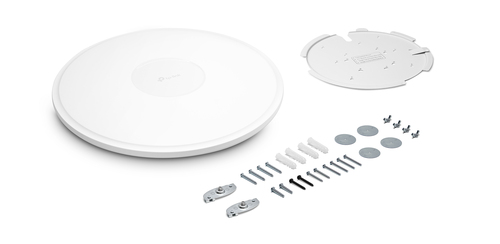

| Mounting kit | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
