Neomounts DS90-325BL1 Sit-stand workstation desk 17-32" - gas spring
- Brand
- NEOMOUNTS
- Product code
- DS90-325BL1
- SKU
- ZURU6A5YFPT6T
- EAN/GTIN
- 8717371443672
- Maximum weight capacity: 9 kg
- Minimum screen size: 43.2 cm (17") Maximum screen size: 81.3 cm (32")
- Number of displays supported: 1
- Clamp/Grommet Mounting type: Desk
- Maximum VESA mount: 100 x 100 mm
- Height adjustment Tilt adjustment
- Cable management
- Steel Black
Product Info

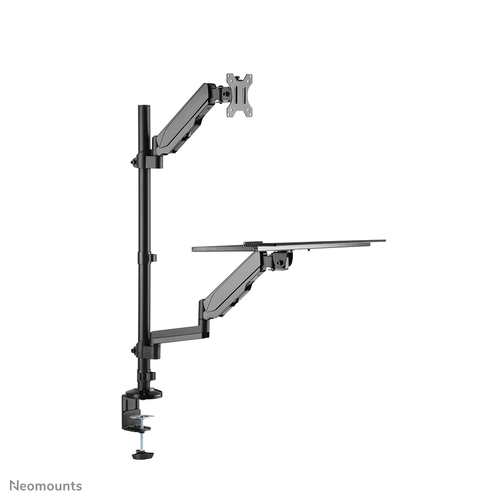

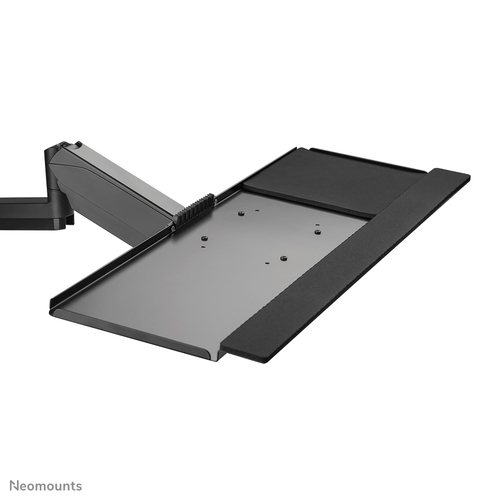

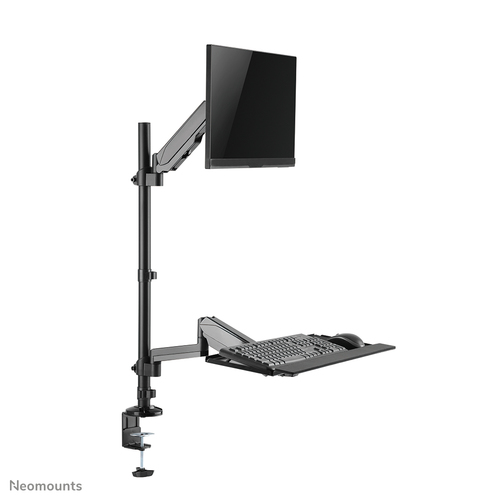

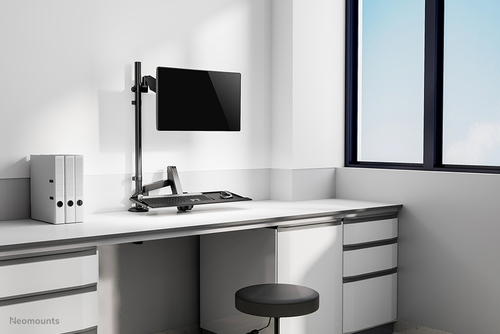

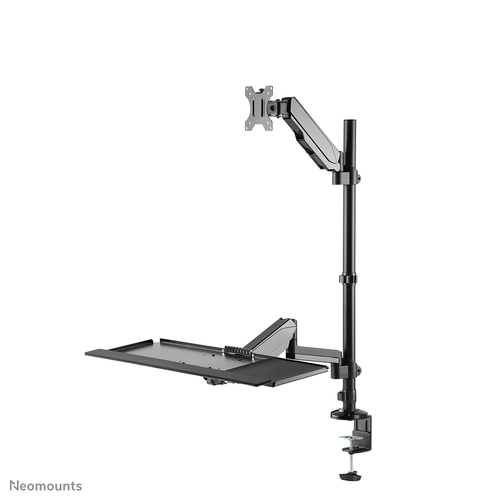

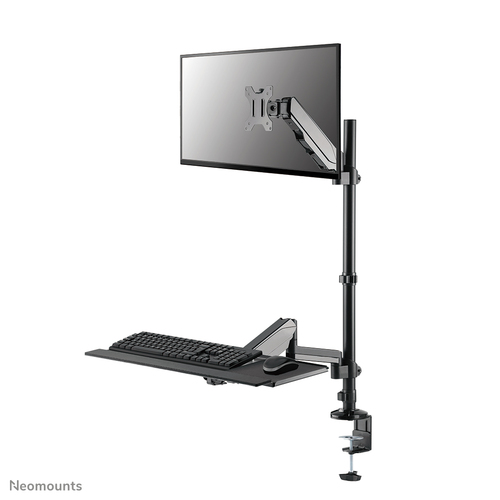

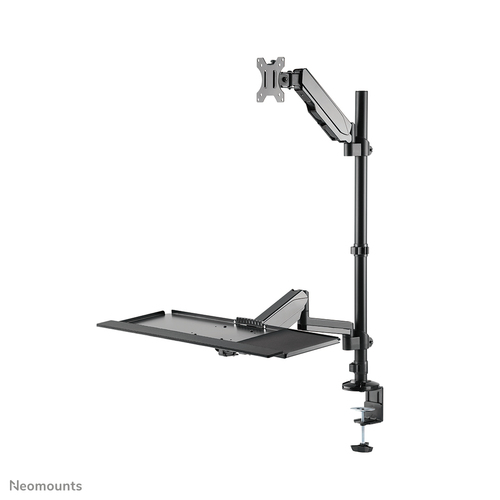

The Neomounts DS90-325BL1 is a full motion height adjustable desk mounted workstation for screens up to 32", keyboard and mouse. The mount can support screens up to 9 kg (curved: 6 kg), while the keyboard tray can support max. 1 kg. The versatile tilt (70°), rotate (360°) and swivel (180°) technology allows the monitor arm to change to any viewing angle to fully benefit from the capabilities of the screen. The keyboard tray includes a wrist support and mouse pad for optimum comfort.

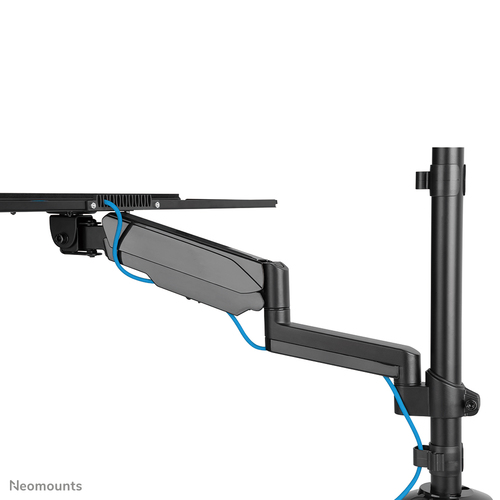

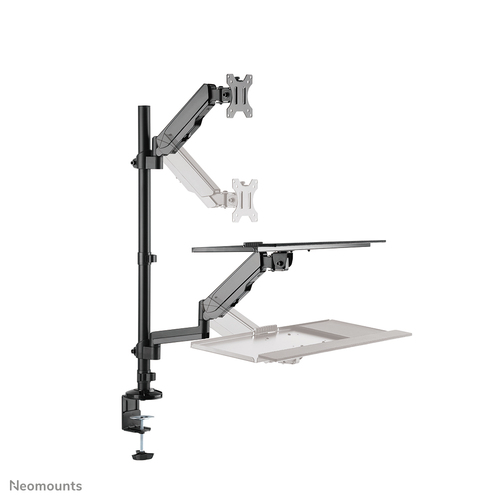

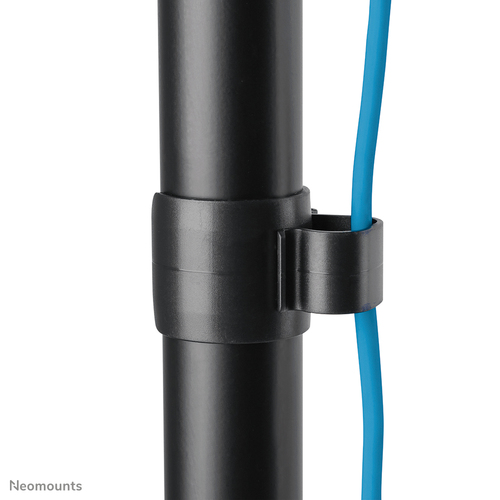

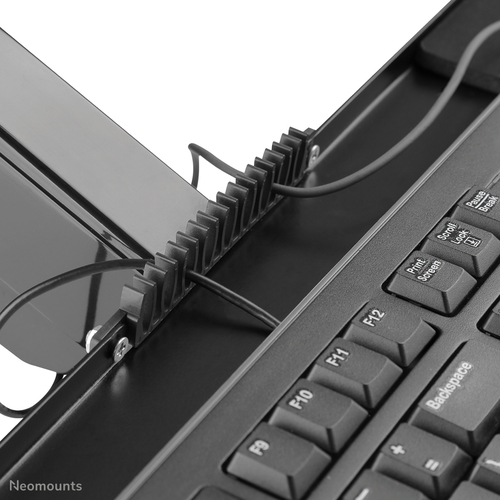

The workstation desk mount has a large height adjustability range from 44-95 cm and can be used both seated and standing. To ensure quick repositioning and the most optimal working position, the DS90-325BL1 features gas spring height adjustment for both the monitor arm and keyboard tray arm. The smart cable management system ensures orderly routing of the cables.

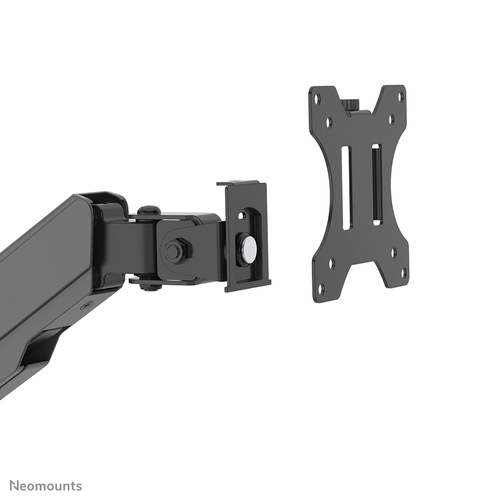

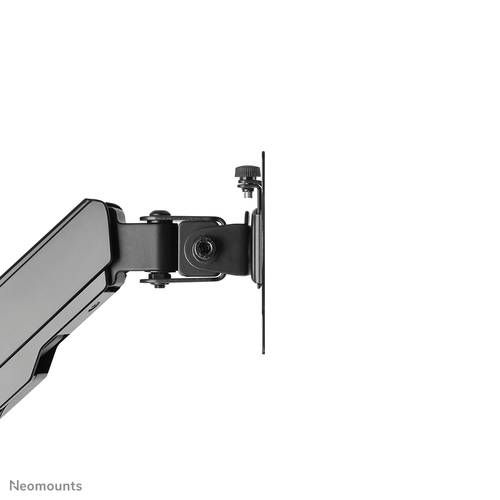

The DS90-325BL1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm and is equipped with a Quick-release VESA system for fast and easy installation. For non-standard hole patterns, Neomounts has various VESA optional adapter plates available.

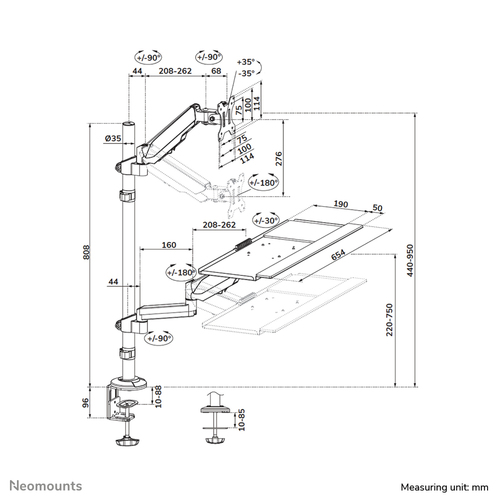

| Mounting | |
|---|---|
| Minimum screen size | 43.2 cm (17") |
| Maximum weight capacity | 9 kg |
| Maximum weight capacity (per curved/ultra-wide display) | 6 kg |
| Maximum screen size | 81.3 cm (32") |

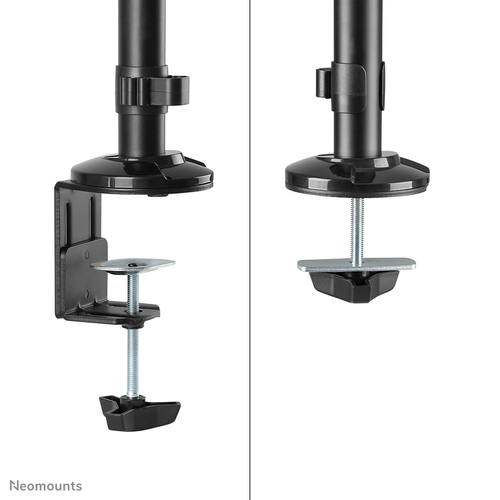

| Mounting | Clamp/Grommet |
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Number of displays supported | 1 |
| Desk thickness (min) | 1 cm |
| Desk thickness (max) | 8.8 cm |
| Distance to the wall (min) | 15.9 cm |
| Distance to the wall (max) | 42.1 cm |
| Ergonomics | |
| Height adjustment | Yes |
| Height adjustment range | 440 - 950 mm |
| Depth adjustment range | 68 - 374 mm |
| Tilt adjustment | Yes |
| Tilt angle range | -35 - 35° |
| Swivelling | Yes |
| Swivel angle range | -90 - 90° |
| Rotating | Yes |
| Angle of rotation | 360° |
| Cable management | Yes |
| Design | |
| Housing material | Steel |
| Product colour | Black |
| Weight & dimensions | |
| Width | 654 mm |
| Depth | 730 mm |
| Height | 1180 mm |
| Packaging data | |
| Package width | 300 mm |
| Package depth | 165 mm |
| Package height | 848 mm |
| Other features | |
| Minimum weight | 1 kg |
| Width adjustment range | 0 - 524 mm |
| Logistics data | |
| Products per master (outer) case | 1 pc(s) |
| Country of origin | China |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 25 pc(s) |
