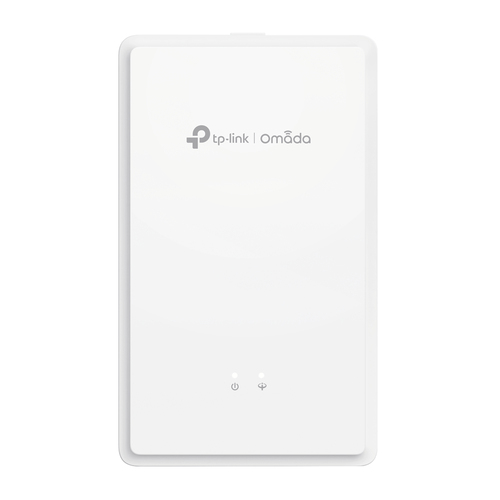

TP-Link Omada AX1800
TP-Link Omada AX1800 1201 Mbit/s White
- Brand
- TP-Link
- Product Family
- Omada
- Product code
- EAP615GP-WALL
- SKU
- ZH12A5EHJU17Y
- EAN/GTIN
- 8885020620535
- Seamless 1.8 Gbps WiFi 6 Speeds: 1201 Mbps on 5 GHz & 574 Mbps on 2.4 GHz
- 1× GPON Port for High-Speed and Ultra-Range Access
- Ultra-Broadband WiFi 6: MU-MIMO, Seamless Roaming§
- One Fiber for Multiple Services: Wired, Wireless, Voice, VoIP, Data, and HD Video Services
- VoIP Calls: Support multiple VolP accounts and various call features, exceeding traditional landlines
- Easy Use: One-Click Pairing and Automatic Adoption
- Smart O&M: PPSK△ and Multiple Portals§
- Centralized Management: Integrates with the Unified Optical Solution
- Wall-Mounted, AC Powered
€145.99
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
| Features | |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 1201 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1201 Mbit/s |
| Ethernet LAN data rates | 1000 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Number of users | 120 user(s) |
| Channel bandwidth | 80 MHz |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Spread spectrum method | OFDMA |
| Wi-Fi roaming | Yes |
| VLAN support | Yes |
| Rate limiting | Yes |
| Wireless isolation | Yes |
| Band steering | Yes |
| Airtime Fairness (ATF) | Yes |
| Quality of Service (QoS) support | Yes |
| BeamForming | Yes |
| Transmitting power (CE) | 20 dBm |
| Transmitting power (FCC) | 21 dBm |
| Security | |
| Security algorithms | SNMP, SNMPv2, SNMPv3, SSH, WPA-Personal, WPA2-Personal, WPA3-Personal |
| MAC address filtering | Yes |
| Service Set Identifier (SSID) features | Multiple SSIDs, SSID broadcast on/off |
| Number of SSID supported | 16 |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Management features | |
| Web-based management | Yes |
| Syslog | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 0.5 A |
| Power consumption (typical) | 12.2 W |
| Design | |
| Placement | Wall |
| Product colour | White |
| Reset button | Yes |
| LED indicators | Power |
| Certification | CE, FCC, RoHS, IC |
| Antenna | |
| Antenna type | Internal |
| Antenna direction type | Omni-directional |
| Antennas quantity | 2 |
| Antenna gain level (max) | 6.5 dBi |
| Technical details | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Weight & dimensions | |
| Width | 143 mm |
| Depth | 86 mm |
| Height | 37.6 mm |
| Weight | 320 g |
| Packaging content | |
| Number of products included | 1 pc(s) |
| Mounting kit | Yes |
| Quick start guide | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Sustainability | |
| Sustainability compliance | Yes |
