APC Smart-UPS On-Line, 1500VA, Rackmount 2U, 230V, 8x C13 IEC outlets, Network Card, W/ rail kit, Used W/O Lithium-ion external battery
- Brand
- APC HW
- Product code
- SRT1500UXI-NCLI
- SKU
- 9EPR7Q75OJI5H
- Double-conversion (Online)
- 1.5 kVA 1350 W
- Waveform: Sine
- 8 AC outlet(s)
- Rackmount Black
Product Info

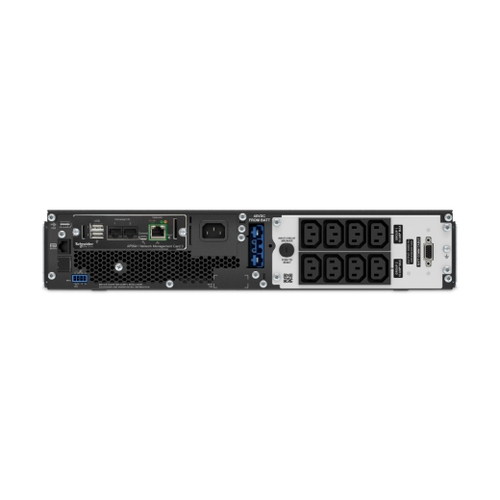

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 1500VA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with 1x IEC 320 C14 input and 8x IEC 320 C13 outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 5-year warranty, and has to be used with an external Lithium-ion battery sold separately.
| Features | |
|---|---|
| UPS topology | Double-conversion (Online) |
| Output power capacity | 1.5 kVA |
| Output power | 1350 W |
| Waveform | Sine |
| Input operation voltage (min) | 80 V |
| Input operation voltage (max) | 240 V |
| Input frequency | 40 - 70 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 Hz |
| Surge energy rating | 340 J |
| Heat dissipation | 450 BTU/h |
| Crest factor | 3:1 |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Noise level | 50 dB |
| Ports & interfaces | |
| AC outlet types | C13 coupler, C14 coupler |
| AC outlets quantity | 8 AC outlet(s) |
| USB port | Yes |
| Serial ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Emergency Power Off (EPO) connector | Yes |
| SmartSlot | Yes |
| Design | |
| Form factor | Rackmount |
| Rack capacity | 2U |
| Product colour | Black |
| International Protection (IP) code | IP20 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 15240 m |
| Certificates | |
| Certification | CE, CE Mark, EAC, RCM, UK PSTI, VDE |
| Weight & dimensions | |
| Width | 432 mm |
| Depth | 590 mm |
| Height | 85 mm |
| Weight | 17.5 kg |
| Packaging data | |
| Package width | 810 mm |
| Package depth | 600 mm |
| Package height | 245 mm |
| Package weight | 28.2 kg |
| Logistics data | |
| Total carbon footprint (kg of CO2e) | 2523.22 |
