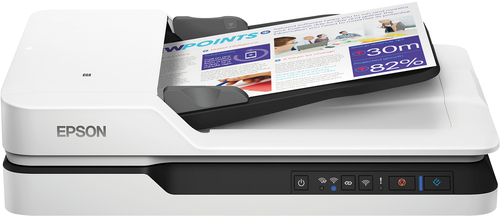

Epson WorkForce DS-1660W Flatbed scanner 1200 x 1200 DPI A4 Black, White
- Brand
- Epson
- Product Family
- WorkForce
- Product code
- B11B244401PU
- SKU
- 2X74D8QB23JHF
- EAN/GTIN
- 8715946672151
- Scanner type: Flatbed scanner 1200 x 1200 DPI
- Colour scanning Duplex scanning
- A4
- Maximum scan size: 210 x 3048 mm Sensor type: CIS
- USB port Wi-Fi Ethernet LAN
- Power supply type: AC
- Scanning noise level: 55 dB
Product Info
Intelligent features
Smart colour and image adjustments, including auto crop, skew correction, blank page and background removal, with Epson's Image Processing Technology. With long document mode it's possible scan over three metres (3048mm) of paper single sided.
Flexible placement

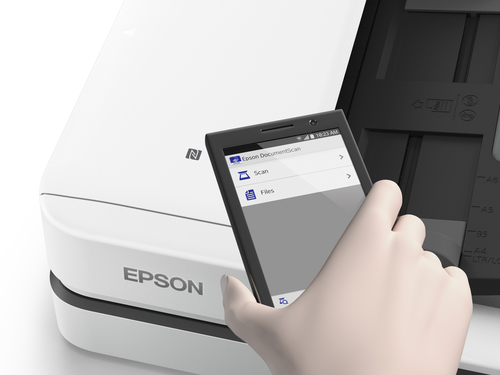

The Wi-Fi and Wi-Fi Direct connectivity on the DS-1660W provide extra convenience to organisations wanting to deploy a dedicated scanning solution that can be accessed easily by many people. With NFC enabled, use the Epson Scan App to take control with your mobile device - then edit and improve digital images before saving and sharing.
Boost your office efficiency
One of the fastest scanners in its class with a 25ppm scan speed. USB 3.0 connectivity means there is no slow down, even when scanning at 300dpi high resolution. Scan both sides of a page with double-sided scanning capability for greater convenience. Create up to 30 jobs with the optional network panel and scan directly to server locations, cloud services and Microsoft SharePoint. Included Epson software enables dual image output; scan once and send to two different destinations. The DS-1660W also encourages easy, one-touch scanning to folders, email, online storage accounts2 and more.
| Scanning | |
|---|---|
| Maximum scan size | 210 x 3048 mm |
| Optical scanning resolution | 1200 x 1200 DPI |
| Enhanced scan resolution | 1200 x 1200 DPI |
| Colour scanning | Yes |
| Duplex scanning | Yes |
| Input colour depth | 30 bit |
| Output colour depth | 24 bit |
| Input greyscale depth | 10 bit |
| Output greyscale depth | 8 bit |
| ADF scan speed (b/w, A4) | 25 ppm |
| ADF scan speed (colour, A4) | 25 ppm |
| Design | |
| Scanner type | Flatbed scanner |
| Product colour | Black, White |
| Built-in display | No |
| Performance | |
| Sensor type | CIS |
| Light source | ReadyScan LED |
| Scan file formats | JPG, PDF, TIFF |
| Daily duty cycle (max) | 1500 pages |
| Scan drivers | TWAIN |
| Password protection | Yes |
| Scanning noise level | 55 dB |
| Input capacity | |
| Auto document feeder (ADF) input capacity | 50 sheets |
| Paper handling | |
| Maximum ISO A-series paper size | A4 |
| ISO A-series sizes (A0...A9) | A4, A5, A6 |
| ISO B-series sizes (B0...B9) | B5 |
| Letter | Yes |
| Legal | Yes |
| Auto Document Feeder (ADF) media weight | 50 - 120 g/m² |
| Maximum scan area (ADF) | 210 x 3048 mm |
| Minimum scan area (ADF) | 89 x 127 mm |
| Ports & interfaces | |
| USB port | Yes |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| Optional connectivity | Ethernet |
| Power | |
| Power supply type | AC |
| Network | |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Ethernet LAN | Yes |
| IPv6 support | Yes |
| Supported network protocols | TCP/IP, DHCP, DNS, SNMP, SLP |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 195 mm |
| Package depth | 520 mm |
| Package height | 405 mm |
| Package weight | 4.84 kg |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 7, Windows 7 x64, Windows 8, Windows 8 x64, Windows 8.1, Windows 8.1 x64, Windows Vista, Windows Vista x64 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Operational conditions | |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 20 - 80% |
| Weight & dimensions | |
| Width | 451 mm |
| Depth | 315 mm |
| Height | 120 mm |
| Weight | 3.9 kg |
| Packaging content | |
| Cables included | USB |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
