StarTech.com USB4 Docking Station, USB-C 40Gbps, Dual Video HDMI, Up to 2x 4K 60Hz 4:4:4 (RGB) or 2x 4K 120Hz 4:2:2, Multi-Monitor Dock, 6x USB, 2.5GbE, 100W PD
- Brand
- STARTECH
- Product code
- 155UE-USB4-DOCK
- SKU
- IQYF4VEOA5L70
- EAN/GTIN
- 0065030902878
- HIGH-PERFORMANCE USB4 DOCK: USB4 delivers 40Gbps data transfer speeds, and improved bandwidth for video, making this mobile docking station an ideal solution for high-performance computing & seamless device connectivity
- DUAL 4K 60Hz/120Hz VIDEO: 2x HDMI 2.1 ports support Dual 4K 60Hz or up to Dual 4K 120Hz / Single 8K 60hz at 4:2:2; Delivers direct GPU performance with no software or compression

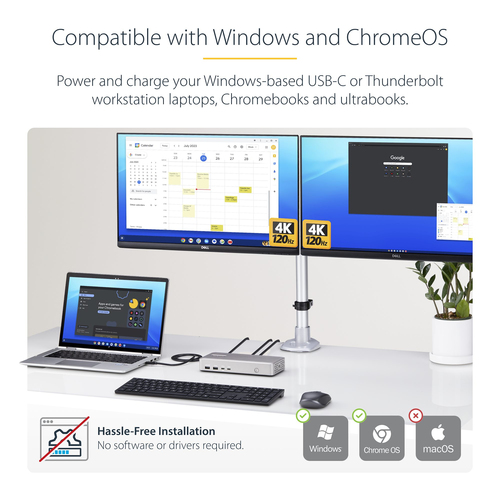

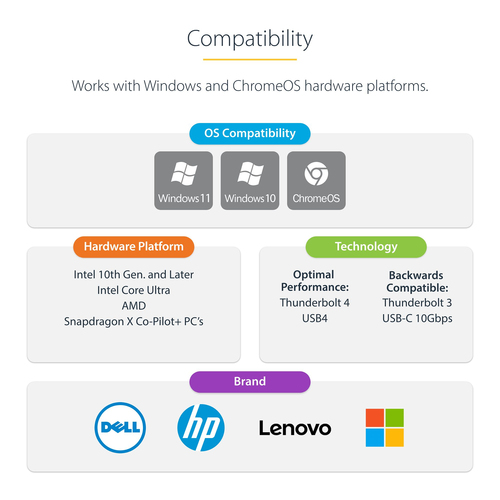

- COMPATIBILITY: Dock is Compatible with Windows 11 (x64 and ARM), Windows 10, and ChromeOS; Optimal performance with Thunderbolt 4 and USB4 laptops; Compatible with Intel 12th Gen and later, Intel Core Ultra, AMD, and Snapdragon X Co-Pilot+ PC's

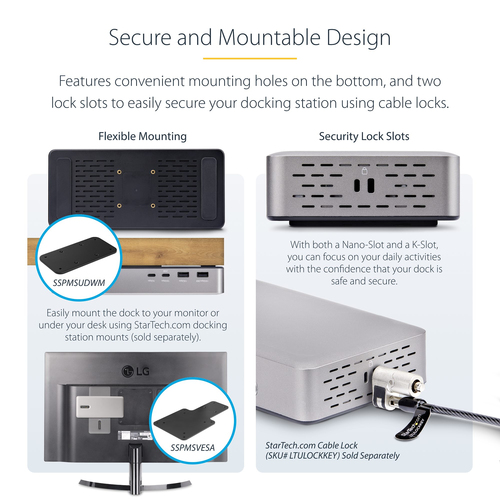

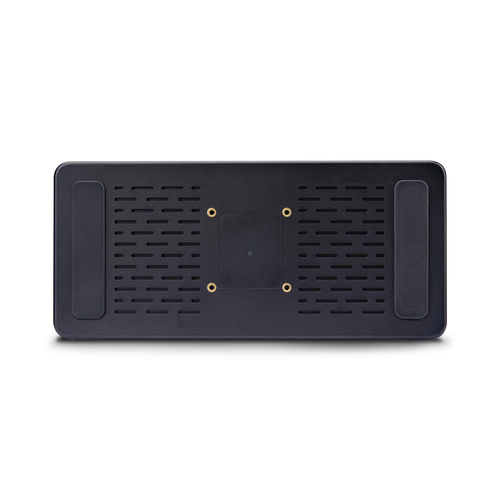

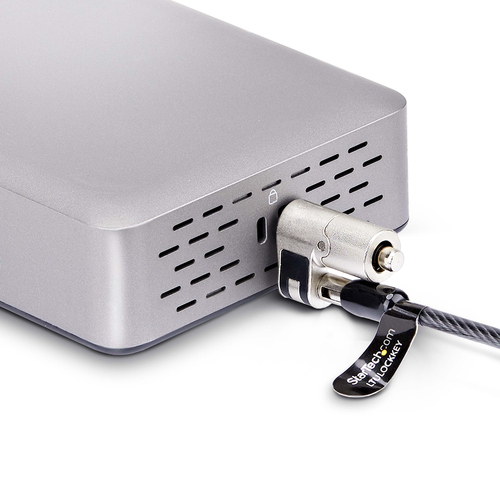

- DEVICE SECURITY: Secure 3.3ft (1m) USB-C locking cable for host port; Mounting holes available for optional mounting bracket; K-slot & Nano security slots; USB Event Monitoring, Mac Address Pass-Through with included Connectivity Tools software suite
- PORTS: 6-port USB hub (2x USA-A 10Gbps / 2x USB-A 5Gbps / 1x USB-C 10Gbps / 1x USB-C 5Gbps); 2.5Gb LAN (10/100/1000/2500Mbps, WoL/PXE); 180W power adapter charges laptop (100W PD) & powers all ports; 1x 20W USB-C, 1x 7.5W USB-A for charging USB devices
Product Info

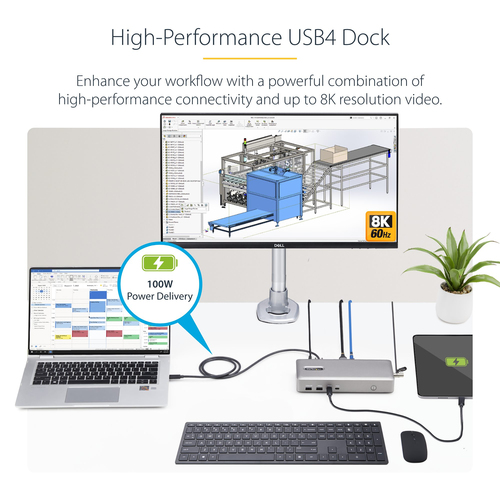

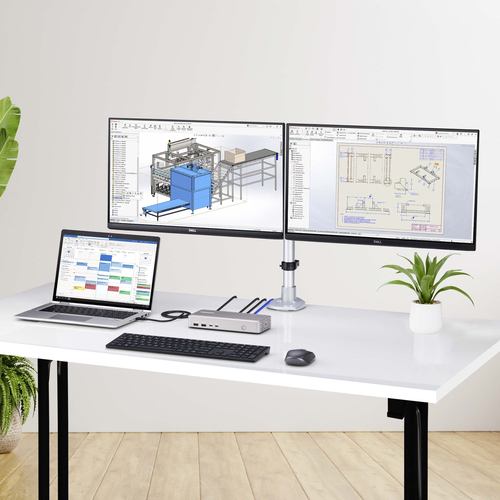

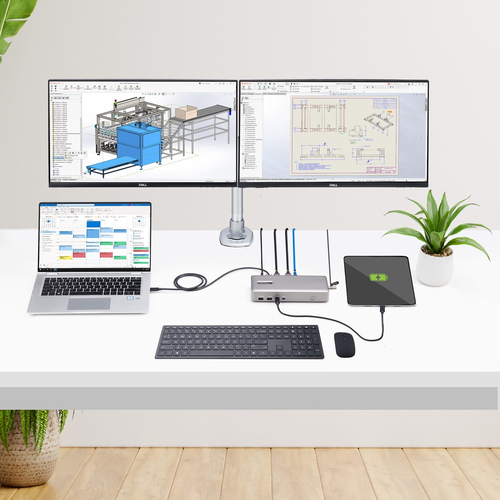

Turn a USB4 equipped laptop into a dual monitor workstation
This USB4 (USB-C 40Gbps) docking station uses a single USB4 or Thunderbolt port on a host computer to add high-performance connectivity while charging the laptop.

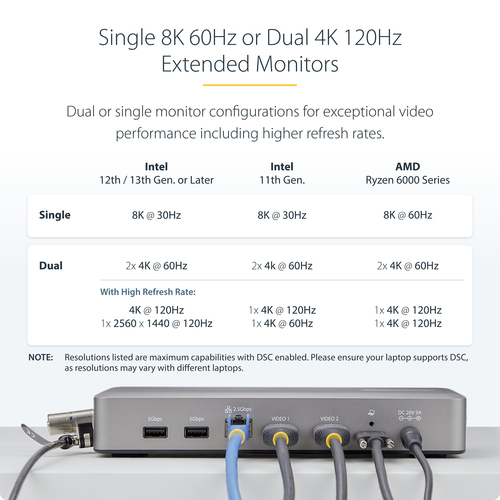

Flexible High-Performance Video
The dock is equipped with 2x HDMI 2.1 video outputs for connecting dual monitors to the host computer. The dock supports can support dual-monitors with support for resolutions up dual 4K 60Hz at 4:4:4 (RGB) or dual 4K 120Hz at 4:2:2. A single display workstation is also supported at resolutions up to 8K 30Hz 4:4:4 (RGB) or 8K 60Hz at 4:2:2.

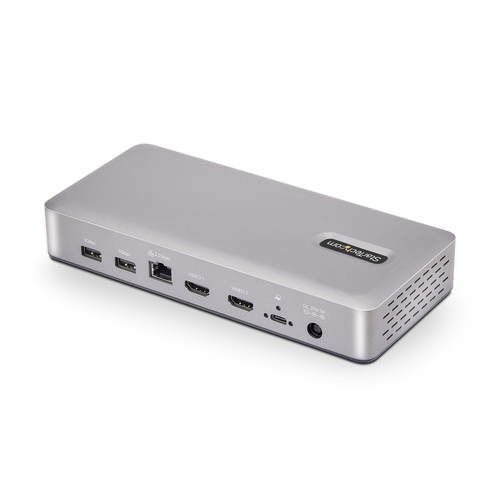

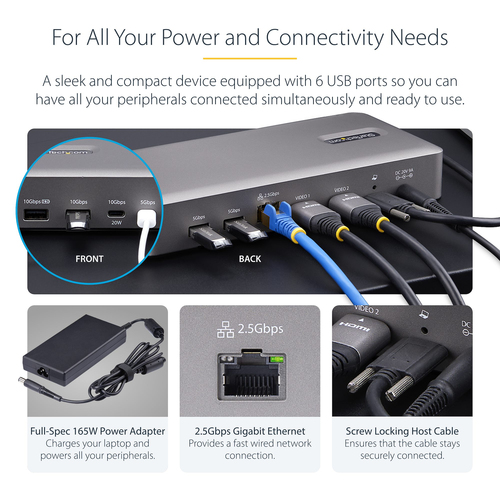

Port Connectivity
The docking station utilizes the high 40Gbps throughput available from a Thunderbolt 4/3, or USB4 port to provide a wide range of port connectivity to suit a variety of applications.

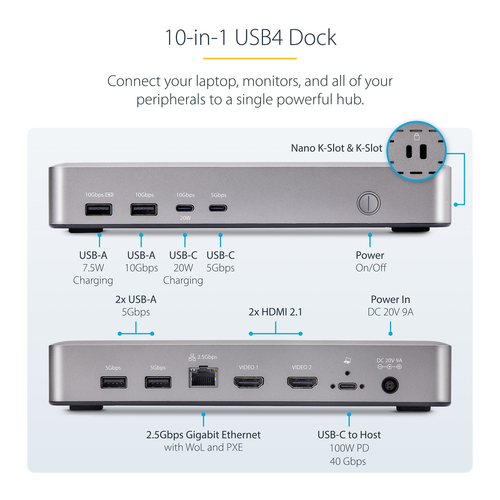

The dock features:

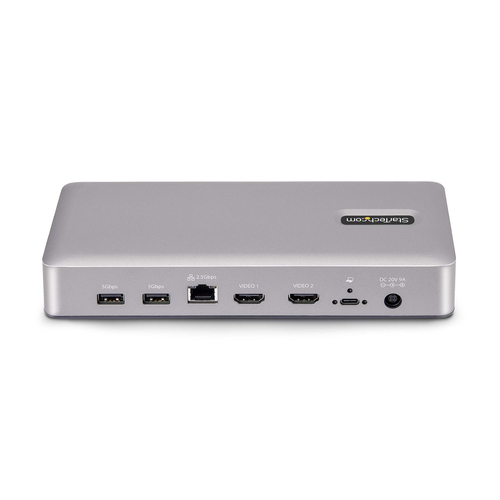

• 2x HDMI ports to connect displays.

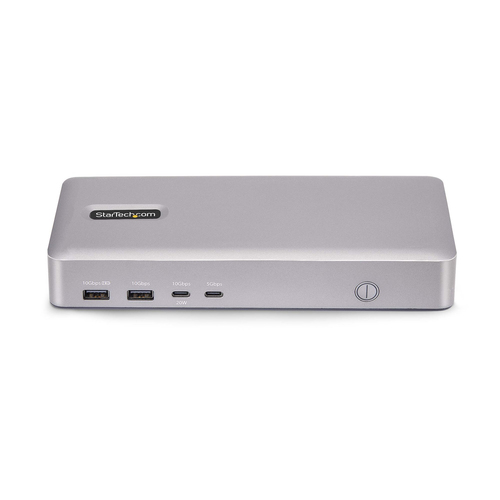

• 6x USB Hub (2x 10Gbps USB Type-A, 2x USB Type-A 5Gbps, 1x USB Type-C 10Gbps, 1x USB-C 5Gbps) to connect USB peripheral devices.
• 1x 2.5 Gigabit Ethernet port with PXE boot and WoL to connect to a wired Local Area Network (LAN)
100W USB Power Delivery
Includes a 180W power adapter and supports 100W USB power delivery. This enables the dock to charge the laptop, with enough additional power for all downstream ports. The 6-Port USB hub includes a 20W downstream USB-C Power Delivery port and a 7.5W BC 1.2 Downstream Charging Port (DCP) for charging tablets, smartphones or other battery-powered USB devices.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools App
Developed to improve performance and security, Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software includes:
•
Advanced Windows Layout Utility : To setup and save custom windows layouts.
•
Mac Address Pass-Through Utility : To improve network security.
•
USB Event Monitoring Utility : To track and log connected USB devices
•
Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools
The StarTech.com Advantage
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB Power Delivery | Yes |
| USB Power Delivery up to | 100 W |
| HDMI ports quantity | 2 |
| Microphone in | No |
| DC-in jack | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Wake-on-LAN ready | Yes |
| Full duplex | Yes |
| Performance | |
| Card reader integrated | No |
| Data transfer rate | 40 Gbit/s |
| HD type | 4K Ultra HD |
| Maximum digital resolution | 3840 x 2160 pixels |
| Number of displays supported | 2 |
| Maximum refresh rate | 120 Hz |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington, Nano |
| Product colour | Silver |
| On/off switch | Yes |
| LED indicators | Yes |
| UASP support | Yes |
| Housing material | Plastic |
| Power | |
| Power source type | DC |
| AC input voltage | 100 - 240 V |
| Input current | 2.5 A |
| Output voltage | 20 V |
| Output current | 9 A |
| Power consumption (typical) | 165 W |
| Power plug type | Type M |
| Compatible power plug types | EU, UK |
| Software | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
| Other operating systems supported | ChromeOS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |

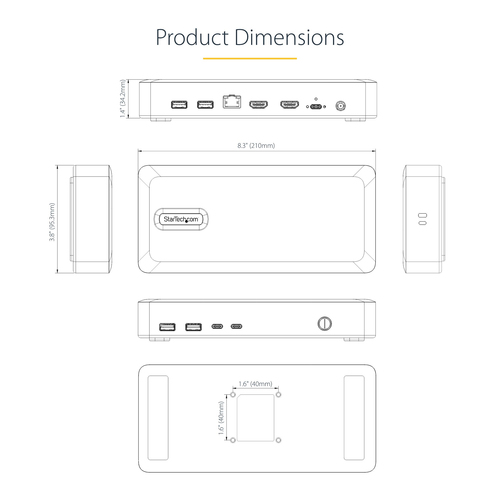

| Weight & dimensions | |
| Width | 210 mm |
| Depth | 95 mm |
| Height | 34 mm |
| Weight | 138.6 g |
| Packaging data | |
| Package width | 145 mm |
| Package depth | 230 mm |
| Package height | 89 mm |
| Package weight | 1.3 kg |

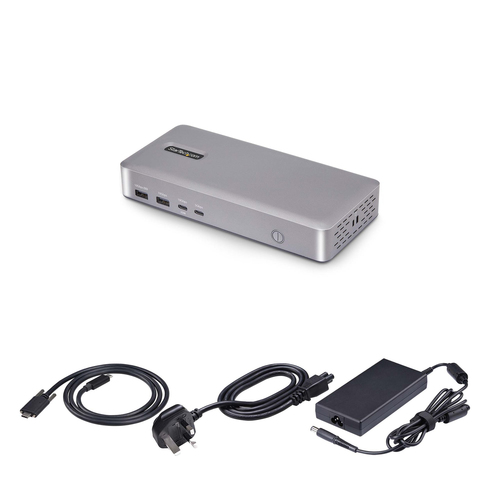

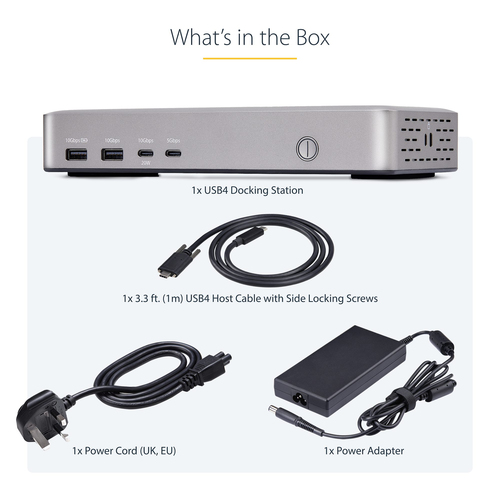

| Packaging content | |
| Cables included | USB |
| Quick start guide | Yes |
| Logistics data | |
| Products per master (outer) case | 8 pc(s) |
| Master (outer) case width | 305 mm |
| Master (outer) case length | 375 mm |
| Master (outer) case height | 265 mm |
| Other features | |
| Chipset | VIA - VL830, VIA - VL163, Realtek - RTD2188-VA-CG, Genesys Logic - GL9901NE |
