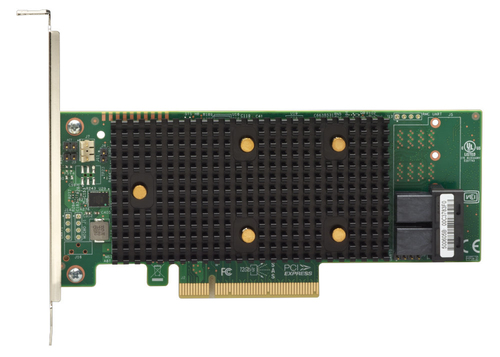

Lenovo 4Y37A09727 RAID controller
Lenovo 4Y37A09727 RAID controller PCI Express x8 3.0 12 Gbit/s
- Brand
- Lenovo
- Product code
- 4Y37A09727
- SKU
- ZGTUUGJGHJQG8
- EAN/GTIN
- 889488496693
- Supported storage drive interfaces: PCI Express
- Host interface: PCI Express x8
- RAID levels: 0, 1, 10
- 12 Gbit/s
- SSD support
- Number of devices supported: 16
€752.8
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Product Info
The ThinkSystem RAID 530 family are entry-level 12 Gb SAS/SATA internal RAID adapters that offer a cost-effective RAID solution for small to medium business customers. These cacheless adapters support RAID levels 0/1/10/5/50, and include an extensive list of RAS and management features.
This product guide provides essential presales information to understand the ThinkSystem RAID 530-4i and 530-8i adapters and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the adapters and consider their use in IT solutions.
| Ports & interfaces | |
|---|---|
| Supported storage drive interfaces | PCI Express |
| Host interface | PCI Express x8 |
| PCI Express slots version | 3.0 |
| Internal SAS ports | 16 |
| Performance | |
| RAID levels | 0, 1, 10 |
| Data transfer rate | 12 Gbit/s |
| Form factor | Low Profile PCIe |
| SSD support | Yes |
| Chipset | LSI SAS3416 |
| JBOD function | Yes |
| S.M.A.R.T. support | Yes |
| Number of devices supported | 16 |
| Hot-swap | Yes |
| Certification | FCC Part 15 Class A Australia/New Zealand (AS/NZS CISPR 22) Canada (ICES-003 Class B) Europe (EN55022/EN55024) Japan (VCCI V-3) Korea (RRA no 2013-24 & 25) RoHS compliant EN/IEC/UL 60950 Taiwan (CNS 13438) USA (FCC 47 CFR part 15 Subpart B class B) WEEE |
| System requirements | |
| Linux operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 10 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
