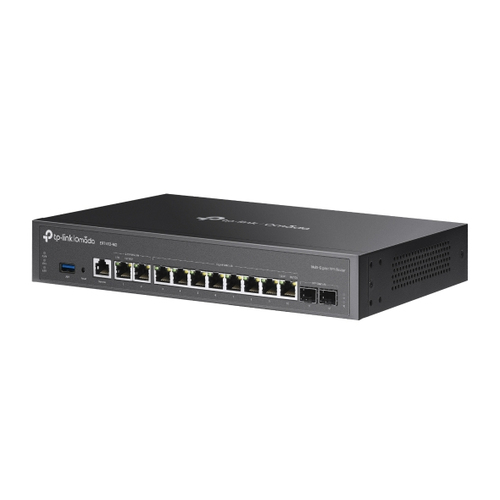

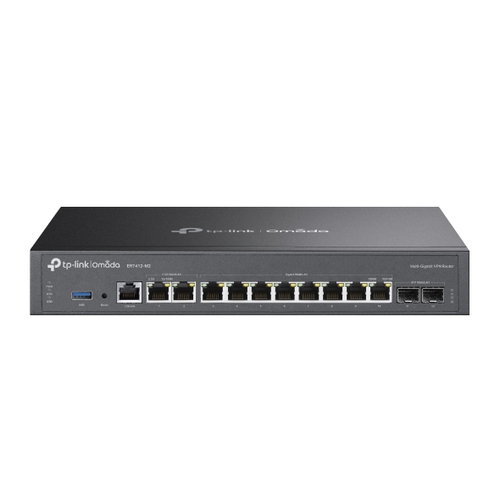

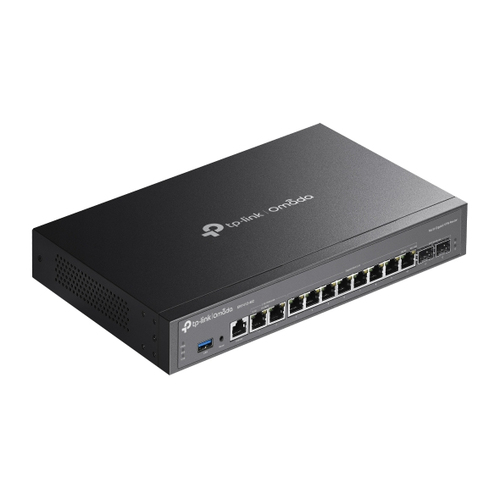

TP-Link Omada Multi-Gigabit VPN Router
- Brand
- TP-Link
- Product Family
- Omada
- Product code
- ER7412-M2
- SKU
- IYGYF5GOP7MKB
- EAN/GTIN
- 4895252505191
- Quad-core @2.0GHz CPU
- 2× 2.5G RJ45 WAN/LAN ports
- 10× Gigabit WAN/LAN Ports (2× SFP, 8× RJ45)
- 1× USB 3.0 port (Supports USB storage, and LTE backup with LTE dongle)
- Load Balancing on up to 11 WAN ports△ increases the utilization rate of multi-line broadband
- High-security SSL/ IPSec / GRE§ / WireGuard / PPTP / L2TP VPN & OpenVPN
- Centralized cloud management via the web or the Omada app*
- DoS/DDoS protection, IP/MAC/URL filtering, DPI, and IPS/IDS for enhanced security
Product Info
Omada Multi-Gigabit VPN Router
- 2× 2.5Gbps WAN/LAN RJ45 Ports
- 10× Gigabit WAN/LAN Ports (2× SFP, 8× RJ45)
- Load Balancing on up to 11 WAN Ports
- Quad-Core 2.0 GHz CPU
- Centralized Cloud Management
- SSL/ IPSec / GRE§ / WireGuard / PPTP / L2TP VPN & OpenVPN
- Multi-Net DHCP
- DPI & IPS/IDS
Engineered for Dense Environments, Powered by
Dual 2.5 Gbps Ports and Quad-Core 2.0 GHz CPU
Easily build a multi-gigabit network for schools, hotels, and offices.
Up to 11 WAN Ports & One USB WAN for Mobile Broadband
Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.
High-Security and High-Performance VPN
SSL/ IPSec / GRE / WireGuard / PPTP / L2TP VPN & OpenVPN easily build secure VPN tunnels for secure Internet browsing, communication between different branches, or enabling remote work or study from home.
Abundant Security Features
DPI (Deep Packet Inspection)
Easily specify internet access rights and strategies via DPI (Deep Packet Inspection), IP/MAC/URL Filtering and Access Control List (ACL).
IDS/IPS
The integrated IDS/IPS engine bolsters threat detection and defense. It is constantly protected via the built-in attack prevention signature database with 7000+ signature rules that can be updated regularly.
DoS/DDoS Protection
Automatically detects and blocks Denial of Service (DoS) attacks such as TCP/UDP/ICMP Flooding, Ping of Death, and other related threats.
| WAN connection | |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | Yes |
| SFP WAN | Yes |
| Network | |
| Networking standards | IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Ethernet interface type | 2.5 Gigabit Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Static route | Yes |
| VLAN support | Yes |
| Management features | |
| Web-based management | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Reset button | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 7 |
| WAN/Ethernet LAN ports quantity | 2 |
| SFP module slots quantity | 2 |
| Number of console ports | 1 |
| USB ports quantity | 1 |
| Protocols | |
| DMZ support | Yes |
| DHCP server | Yes |
| Security | |
| Security algorithms | 128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SHA-1, SHA-2, SHA-384, SHA-512 |
| URL filtering | Yes |
| DoS attack prevention | Yes |
| ARP attack prevention | Yes |
| ICMP attack prevention | Yes |
| Access Control List (ACL) | Yes |
| Network address translation (NAT) | Yes |
| VPN tunnels quantity | 80 |
| Technical details | |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Features | |
| Flash memory | 128 MB |
| Internal memory | 1024 MB |
| Internal memory type | DDR4 |
| Windows operating systems supported | Windows 10, Windows 11, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Design | |
| Product colour | Black |
| Rack mounting | Yes |
| Power | |
| Power consumption (max) | 18.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width | 294 mm |
| Depth | 180 mm |
| Height | 44 mm |
| Packaging data | |
| Cables included | AC, LAN (RJ-45) |
| Quick start guide | Yes |
