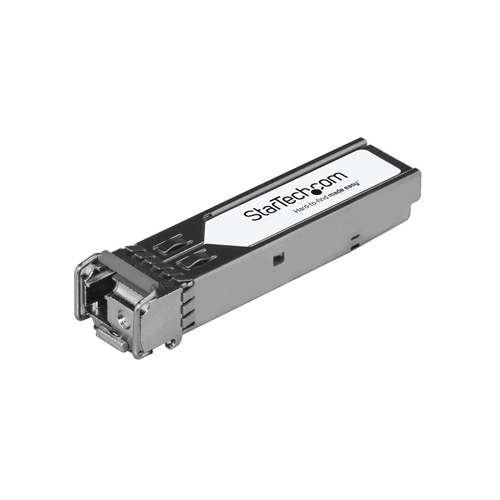

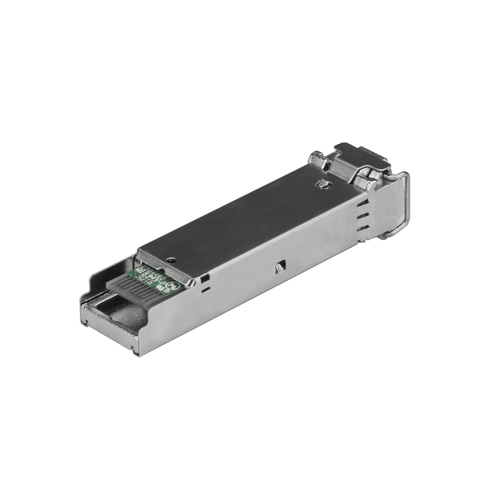

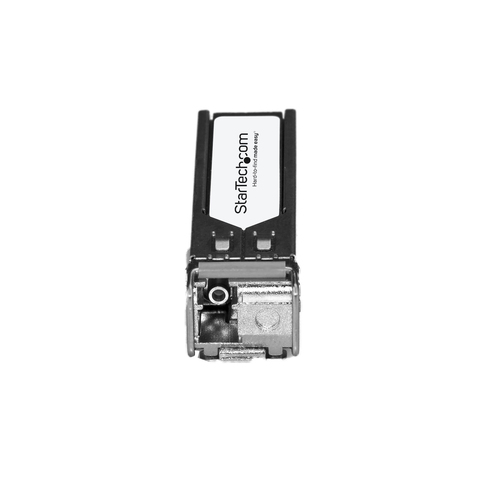

StarTech.com Extreme Networks 10056H Compatible SFP Module - 1000BASE-BX-D - 1 GbE Gigabit Ethernet BiDi Fiber (SMF)
- Brand
- STARTECH
- Product code
- 10056H-ST
- SKU
- PKVRALZRH3BOS
- EAN/GTIN
- 0065030885249
- 100% EXTREME NETWORKS 10056H COMPATIBLE: 1 Gigabit Ethernet BiDi Fiber Single Strand SFP designed, programmed and tested to work with compatible Extreme Networks switches and routers to deliver reliable 1GbE connectivity
- INCREASE BANDWIDTH ON EXISTING INFRASTRUCTURE: This 1 Gigabit Ethernet bi-directional WDM SFP+ transceiver module sends and receives over a single strand of fiber optic cable instead of two
- TECHNICAL SPECS: 1000BASE-BX-D / 1Gbps / 1G Bi-Directional Downstream / Single Mode (SMF) / LC Connector / 1490nmTx/1310nmRx / Digital Diagnostic Monitoring (DDM) / Distances up to 10 km (6.2 mi)
- THE IT PRO’S CHOICE: Designed and built for IT Professionals, this SFP module is backed for life (lifetime of module, not network switch), including free lifetime 24/5 multi-lingual technical assistance
- PROGRAMMED & TESTED FOR COMPATIBILITY: Compatible with Extreme Networks routers and switches. MSA Compliant with DDM that reports the transceiver's status to most SNMP network management tools
Product Info
1000 Mbps (1 Gbps) | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty
The 10056H-ST is an Extreme Networks 10056H compatible downstream fiber SFP transceiver which pairs with StarTech.com's 10057H-ST. They are designed, programmed and tested to work with 1000BASE-BX-D compatible Extreme Networks switches and routers. The SFP transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 1 GbE connectivity over fiber cabling.
Technical Specifications:
• Wavelength: 1490nmTx/1310nmRx
• Maximum Data Transfer Rate: 1Gbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• Power Consumption:
• DDM: Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | Yes |
| Multi-mode fiber (MMF) supported | No |
| Fiber optic connector | LC |
| SFP transceiver standard | BX |
| Maximum transfer distance | 10000 m |
| Tx wavelength (max) | 1490 nm |
| Rx wavelength (max) | 1310 nm |
| Fiber ethernet cabling technology | 1000BASE |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Features | |
| Product colour | Silver |
| Hot-swap | Yes |
| Mean time between failures (MTBF) | 286217327 h |
| Brand compatibility | Extreme Networks |
| Compatible products | 10056H |
| Certification | CE, FCC, UR, REACH |
| Power | |
| Power consumption (typical) | 1.3 W |
| Weight & dimensions | |
| Width | 56.6 mm |
| Depth | 13.7 mm |
| Height | 12.5 mm |
| Weight | 20 g |
| Packaging data | |
| Number of products included | 1 pc(s) |
| Package width | 90 mm |
| Package depth | 115 mm |
| Package height | 31 mm |
| Package weight | 50 g |
| Technical details | |
| Compliance certificates | RoHS |
| Logistics data | |
| Master (outer) case width | 90 mm |
| Master (outer) case length | 115 mm |
| Harmonized System (HS) code | 85369010 |
| Master (outer) case height | 31 mm |
| Products per master (outer) case | 1 pc(s) |
