D-Link DMC-G10SC/B network media converter
D-Link 100/1000BaseT to 1000BaseLX (SC) Single-mode Media Converter (10 km)
- Brand
- D-Link
- Product code
- DMC-G10SC/B
- SKU
- 8YKU2H10DYQH5
- Wired
- 1000 Mbit/s 10000 m
- Ethernet LAN (RJ-45) ports: 1 DC-in jack
- Single-mode SC
€53.65
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Product Info

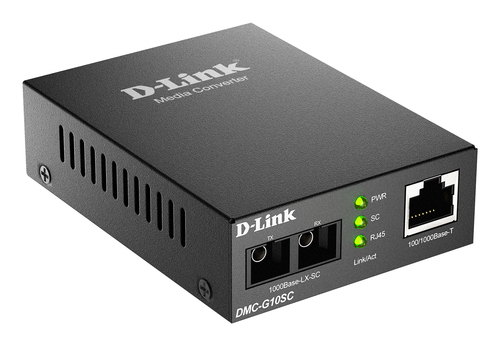

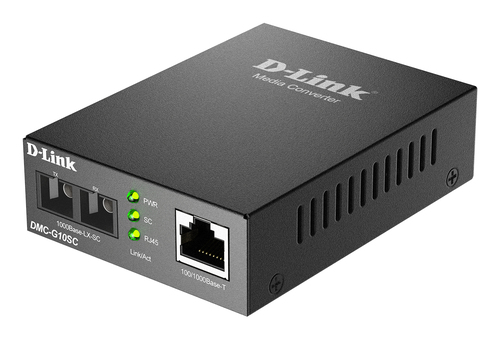

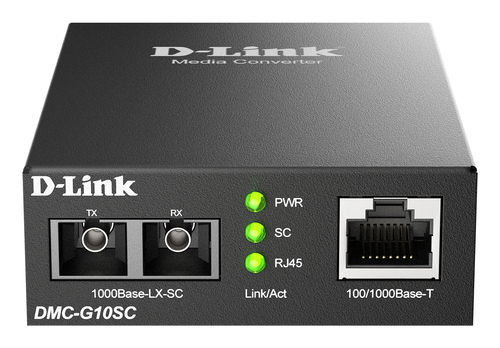

The DMC-G10SC is a media converter designed to convert a twisted-pair 100/1000Base-T Gigabit Ethernet connection to a single-mode fibre 1000Base-LX Gigabit Ethernet connection to extend a connection distance (up to 10 km) between two devices. This media converter is equipped with one RJ-45 for twisted-pair and one fibre optic SC port.
| Network | |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Converter input interface | 10Base-T, 100Base-T, 1000Base-T |
| Converter output interface | 1000Base-LX |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Auto MDI/MDI-X | Yes |
| Performance | |
| Maximum transfer distance | 10000 m |
| Fiber mode structure | Single-mode |
| Features | |
| Internal | No |
| LED indicators | Activity, Link, Power |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber optic connector | SC |
| DC-in jack | Yes |
| Power | |
| Output voltage | 5 V |
| Output current | 0.55 A |
| Power consumption (max) | 1.65 W |
| Weight & dimensions | |
| Width | 93.5 mm |
| Depth | 70.5 mm |
| Height | 26 mm |
| Weight | 124 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 20 - 80% |
