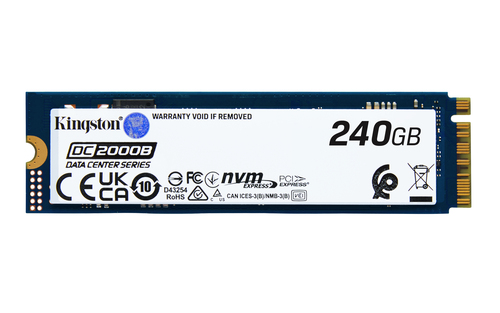

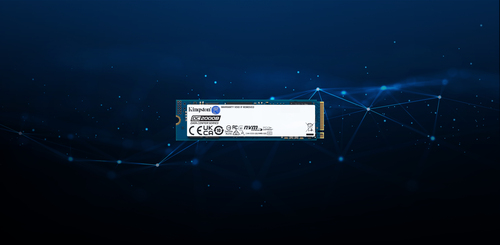

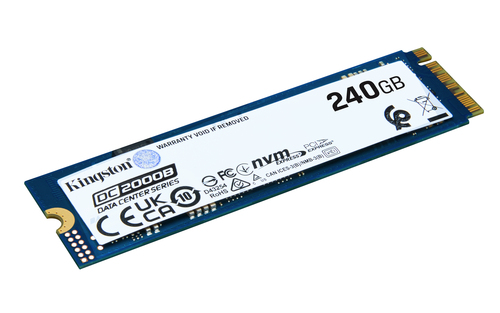

Kingston Technology 240G DC2000B PCIe 4.0 M.2 2280 Enterprise SSD
- Brand
- Kingston
- Product code
- SEDC2000BM8/240G
- SKU
- KE95G52D0JBY4
- PCIe 4.0 NVMe Gen 4x4 performance
- Hardware-based power loss protection
- Latency and IOPS consistency
- Designed for data center environments
Product Info

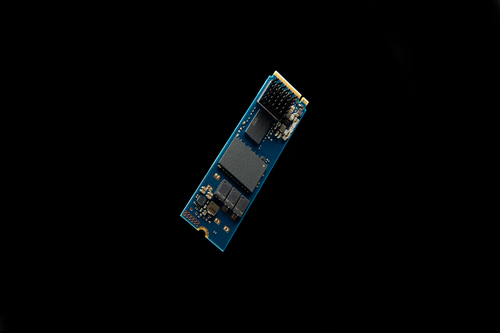

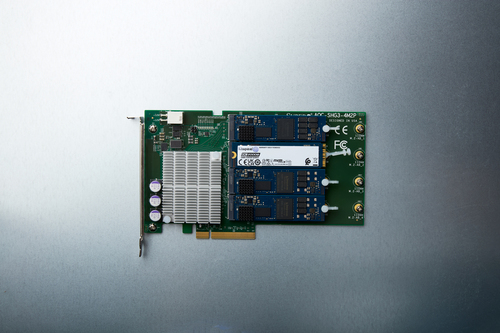

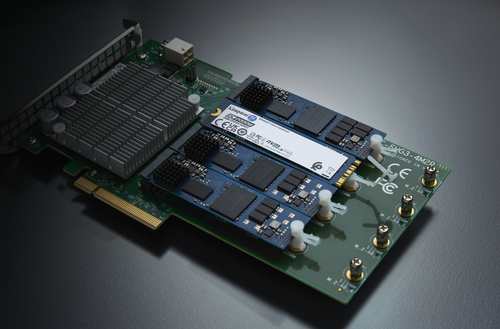

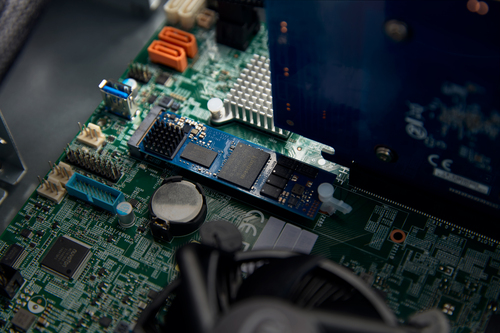

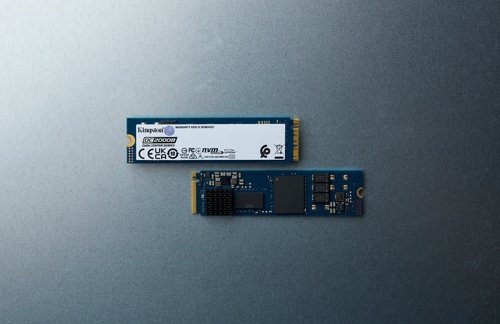

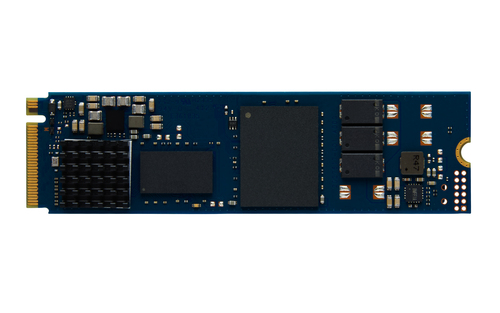

Kingston DC2000B is a high-performance PCIe 4.0 NVMe M.2 SSD that uses the latest Gen 4x4 PCIe interface with 112-layer 3D TLC NAND. Ideally suited for use in high-volume rack-mount servers as an internal boot drive(s) to preserve valuable front-loading drive bays, as well as for use in purpose-built systems where a high-performance M.2 SSD is needed that includes hardware-based on-board power loss protection (PLP). New for DC2000B is an integrated aluminium heatsink that offers broader thermal compatibility for a wide range of systems. DC2000B delivers low latency and excellent IO consistency to handle various workloads from boot drive applications to high-speed application caching. DC2000B is rated at 0.4 DWPD write endurance and carries a five-year warranty.
PCIe 4.0 NVMe performance
Utilises PCIe Gen 4x4 lanes for high-performance speeds.
On-board power loss protection (PLP)
Reduce the possibility of data loss and/or corruption due to unexpected power-off.
Low latency and IOPS consistency
Firmware optimised to deliver low latency and IO consistency for high duty cycle workloads.
Designed for data center environments
Optimised to meet the demands of server boot applications with low latency and IO consistency as the key design criteria.
| Features | |
|---|---|
| SSD capacity | 240 GB |
| SSD form factor | M.2 |
| Interface | PCI Express 4.0 |
| NVMe | Yes |
| Memory type | 3D TLC |
| Component for | Server |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Read speed | 4500 MB/s |
| Write speed | 400 MB/s |
| Random read (4KB) | 260000 IOPS |
| Random write (4KB) | 18000 IOPS |
| Read latency | 70 µs |
| Write latency | 53 µs |
| PCI Express interface data lanes | x4 |
| S.M.A.R.T. support | Yes |
| H/W PLP function | Yes |
| Mean time between failures (MTBF) | 2000000 h |
| Drive writes per day (DWPD) | 0.4 |
| TBW rating | 175 |
| Power | |
| Power consumption (read) | 3.01 W |
| Power consumption (write) | 4.09 W |
| Average power consumption (read) | 2.97 W |
| Average power consumption (write) | 4.02 W |
| Weight & dimensions | |
| Width | 22 mm |
| Depth | 80 mm |
| Height | 8.3 mm |
| Weight | 9 g |
| Packaging data | |
| Package width | 129.5 mm |
| Package depth | 142 mm |
| Package height | 184.2 mm |
| Package weight | 33.77 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Non-operating vibration | 20 G |
| Other features | |
| Cooling type | Heatsink |
| Logistics data | |
| Country of origin | China, Taiwan |
| Master (outer) case width | 135.9 mm |
| Master (outer) case length | 203.2 mm |
| Master (outer) case height | 69.9 mm |
| Master (outer) case gross weight | 280.6 g |
| Products per master (outer) case | 6 pc(s) |
