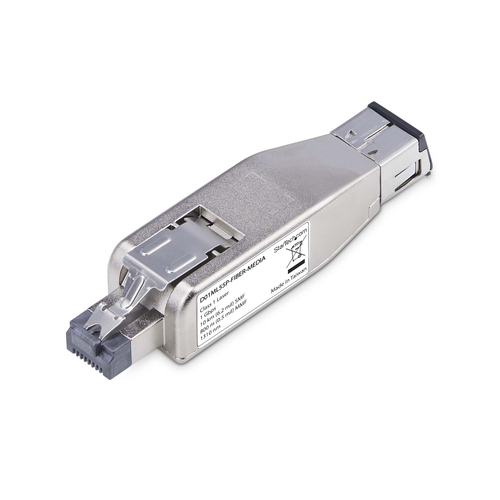

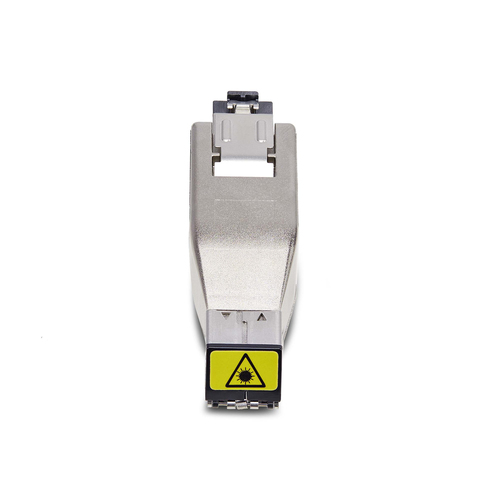

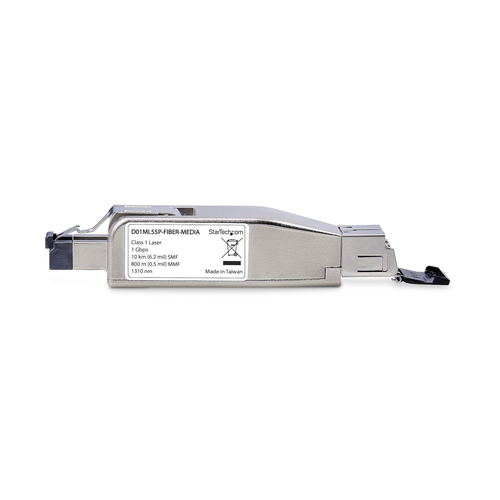

StarTech.com Gigabit Fiber to RJ45 Ethernet Media Converter Dongle, Optical Singlemode 10km/Multimode 800m, PoE Powered, Compact Design, Metal Housing, Micro Mini, TAA
- Brand
- STARTECH
- Product code
- D01ML55P-FIBER-MEDIA
- SKU
- L9Y197RZM8TVD
- EAN/GTIN
- 0065030909822
- FIBER TO ETHERNET MEDIA CONVERTER: Converts Gigabit fiber to RJ45 copper in a compact form factor; No SFP/Cat6 cables required; Conveniently PoE powered (802.3af or higher) when external power is not available; Dimensions 3.2×0.8×0.7in (82.4x20x17.2mm)
- APPLICATIONS: Upgrade PoE capable computers, switches, routers, or other equipment to fiber; Suitable for on-site network troubleshooting, field deployments, industrial automation, telecommunications, broadcasting, data centers, and remote networking

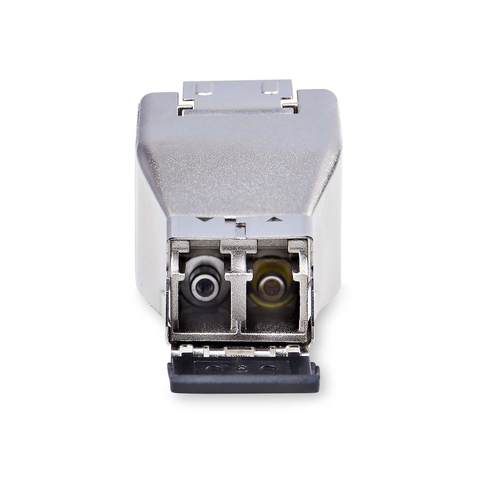

- SHORT & LONG RANGE FIBER: LC slot compatible w/Single-Mode (10km) & Multi-Mode (800m); Single speed 1Gbps for both fiber and RJ-45 ports; Status LEDs including LFPT (Link Fault Pass-Through) enables IT admins to monitor network connectivity

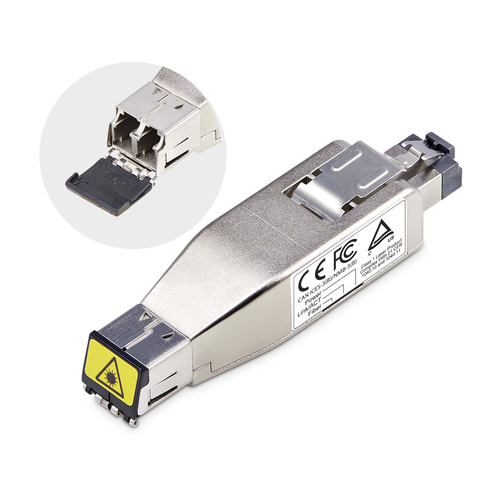

- DURABLE CONSTRUCTION: IP20-rated full-metal housing for enhanced durability; Metal RJ45 latch tab ensures a robust and secure connection; Spring-loaded dust cover protects port when not in use
- TECH SPECS: Single speed 1Gbps; x1 LC port; x1 RJ45; LC duplex; Singlemode SMF (10km) & multimode MMF (800m); 1310nm; LFPT; IP20 rated all metal housing; PoE powered 30-57V input; Max power consumption 2.5W
Product Info
Convert and extend a Gigabit RJ45 Ethernet connection over single or multimode LC fiber
This compact Gigabit Fiber to Ethernet Media Converter enables Cat6 or similar cabling to be upgraded to an EMI-free fiber connection. The TAA-compliant adapter is PoE powered by, making it a perfect choice when external power options are unavailable.
Simplified Installation

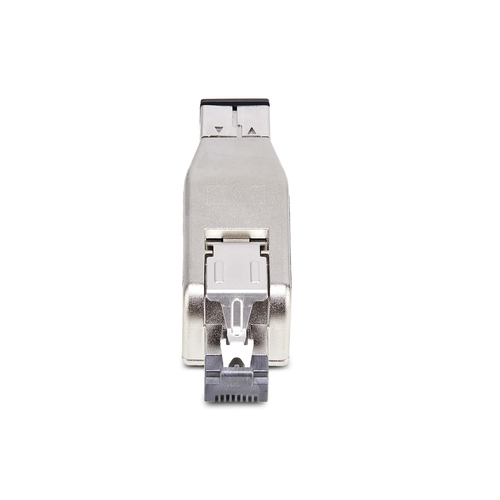

The unmanaged fiber media converter features a plug-and-play design that does not require additional software or settings to be changed. The metal housing features an IP20 rating and is an all-in-one construction with integrated LC fiber and RJ45 ports. The RJ45 side features a metal tab to ensure a reliable and secure fit and prevent accidental disconnections.
Network Features
The PoE media converter is designed to work seamlessly with any networking equipment that is PoE-capable and supports the 802.3af standard or higher. It comes equipped with a range of PoE protection features, including Over Voltage Protection (OVP), Over Current Protection (OCP), Over Temperature Protection (OTP), and 2KV Surge Protection. The LC slot is compatible with Single-Mode (10km) and Multimode (800m) fiber cables up to 1Gbps. A spring-loaded tab protects the port when not in use. The converter supports LFPT (Link Fault Pass-Through), allowing IT administrators to monitor and assess network connectivity at a glance based on the LED behavior.
Compatibility

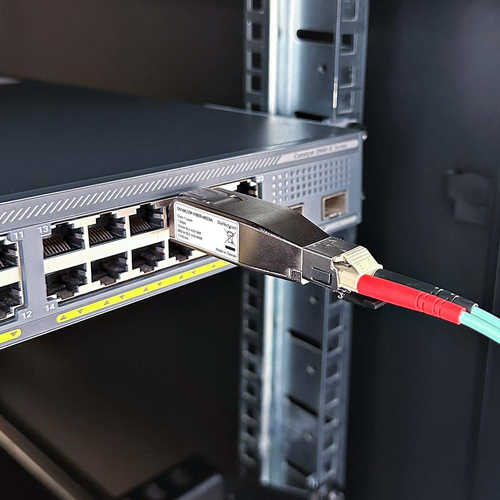

This LAN-to-fiber converter is ideal for upgrading computers, switches, routers, or other equipment from copper to fiber. It suits various applications, including field deployments, industrial automation, telecommunications, broadcasting, data centers, and remote networking. Experience reliable connectivity with EMI immunity over long distances with this compact (3.2×0.8×0.7in/82.39x20x17.5mm) and power-efficient (2.5W max) dongle.
The StarTech.com Advantage
| Network | |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Converter input interface | 1000Base-T |
| Converter output interface | 1000Base-LX |
| Networking standards | IEEE 802.3ab, IEEE 802.3af, IEEE 802.3z |
| Copper ethernet cabling technology | 1000BASE-T |
| Fiber ethernet cabling technology | 1000Base-LX |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Chipset | Marvell - 88E1512 |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | LC |
| Performance | |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Fiber mode structure | Multi-mode, Single-mode |
| Design | |
| Internal | No |
| LED indicators | Activity, Link, Power |
| Product colour | Silver |
| Housing material | Metal |
| International Protection (IP) code | IP20 |
| Power | |
| Power consumption (typical) | 2.5 W |
| Power over Ethernet (PoE) | Yes |
| Weight & dimensions | |
| Width | 82 mm |
| Depth | 20 mm |
| Height | 17 mm |
| Weight | 42 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Packaging data | |
| Package width | 136 mm |
| Package depth | 80 mm |
| Package height | 32 mm |
| Package weight | 75 g |
| Packaging content | |
| Quick installation guide | Yes |
| Technical details | |
| Compliance certificates | Trade Agreements Act (TAA) |
| Logistics data | |
| Master (outer) case width | 340 mm |
| Master (outer) case length | 290 mm |
| Master (outer) case height | 126 mm |
| Products per master (outer) case | 24 pc(s) |
