TP-Link SafeStream Gigabit Multi-WAN VPN Router
- Brand
- TP-Link
- Product code
- ER605
- SKU
- VQ4JZGGX7CY2H
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)‡, Centralized Cloud Management, and Intelligent Monitoring
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management
- Five Gigabit Ports: High-speed wired connectivity
- Up to 4 WAN Ports: 1 gigabit WAN port and 3 gigabit WAN/LAN ports optimize bandwidth usage
- Highly Secure VPN: Supports up to 20× LAN-to-LAN IPsec, 16× OpenVPN*, 16× L2TP, and 16× PPTP VPN connections
- Abundant Security Features: Advanced firewall policies, DoS defense,IP/MAC/URL filtering, and more security functions protect your network and data
Product Info
Professional, Secure, and Reliable Gigabit Multi-WAN VPN Router with Centralized Management Capability
Omada SDN—The Smarter Cloud Solution for Business Networking
As the gateway that seamlessly integrates into the Omada Software Defined Networking (SDN) platform, TL-R605 allows for remote and centralized management, anywhere, anytime. Standalone management via the Web UI or app is also available to maximize convenience.

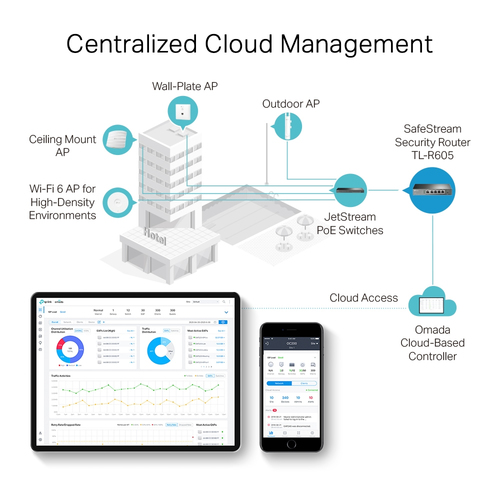

Hassle-Free Centralized Cloud Management:
100% centralized cloud management of whole network from different sites—all controlled from a single interface anywhere, anytime.

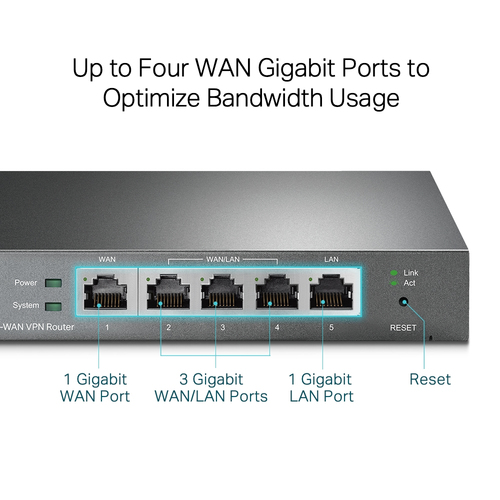

Up to Four WAN Gigabit Ports to Optimize Bandwidth Usage
Three freely interchangeable ports that can be set to either WAN or LAN allow the router to support up to four WAN ports to satisfy various internet access requirements through one device. The multi-WAN Load Balancing function distributes data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi-line broadband.

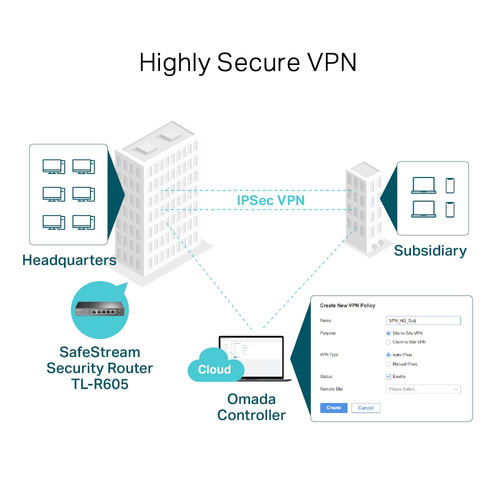

Highly Secure VPN
TL-R605 supports IPSec/PPTP/L2TP VPN over IPSec/SSL protocols. With a powerful hardware design, the router supports and manages up to 20× LAN-to-LAN IPsec, 16× OpenVPN*, 16× L2TP, and 16× PPTP VPN connections. One-click auto IPSec VPN* greatly simplifies VPN configuration and facilitates network management and deployment while also securing and encrypting private site-to-site data communications traveling over the internet.
Internet Access Management Strategy
Standardize users’ online behavior and easily specify the internet access rights and strategies of employee via IP/MAC/URL Filtering and Access Control List (ACL). Captive Portal authentication facilitates network resource control by capturing, authenticating, and classifying user access. Appropriate network resources can also be allocated for particular users or guests.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
| WAN connection | |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | Yes |
| SFP WAN | No |
| Network | |
| Networking standards | IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Ethernet interface type | Gigabit Ethernet |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Static route | Yes |
| VLAN support | Yes |
| Policy-based routing | Yes |
| Management features | |
| Web-based management | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Reset button | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 4 |
| Gigabit Ethernet (copper) ports quantity | 4 |
| DC-in jack | Yes |
| Protocols | |
| DMZ support | Yes |
| DHCP server | Yes |
| Security | |
| Security algorithms | FTPES, SIPS |
| Firewall | Yes |
| URL filtering | Yes |
| DoS attack prevention | Yes |
| ARP attack prevention | Yes |
| ICMP attack prevention | Yes |
| Access Control List (ACL) | Yes |
| Network address translation (NAT) | Yes |
| System event log | Yes |
| VPN tunnels quantity | 20 |
| NAT functionality | One-to-One NAT5 Multi-Net NAT Virtual Server Port Triggering5 NAT-DMZ FTP/H.323/SIP/IPSec/PPTP ALG, UPnP |
| Features | |
| Flash memory | 128 MB |
| Internal memory | 256 MB |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows Vista, Windows XP |
| Mac operating systems supported | MacOS |
| Linux operating systems supported | Yes |
| Certification | CE, FCC, RoHS |
| Design | |
| Product colour | Black |
| LED indicators | LAN, Power, Status, WAN |
| Power | |
| Power source type | DC |
| Input current | 1 A |
| Output voltage | 12 V |
| Output current | 1 A |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width | 158 mm |
| Depth | 101 mm |
| Height | 25 mm |
| Packaging data | |
| AC adapter included | Yes |
| Cables included | LAN (RJ-45) |
| Quick installation guide | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
