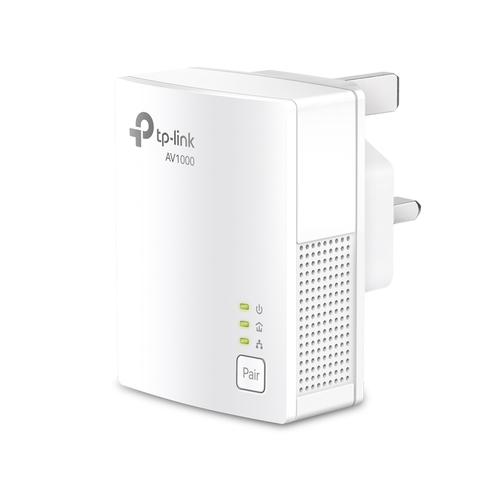

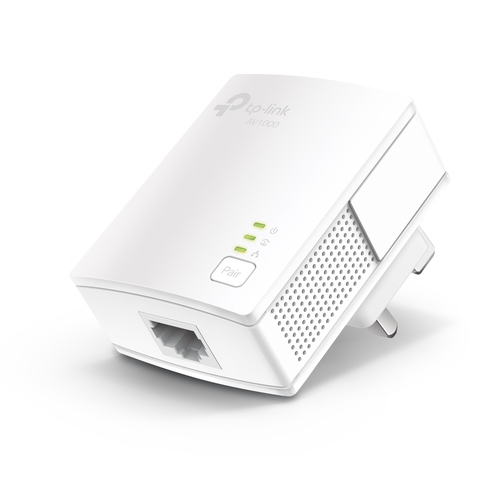

TP-Link AV1000 Gigabit Powerline Starter Kit
- Brand
- TP-Link
- Product code
- TL-PA7017 KIT
- SKU
- OIQHAOQGHAY8K
- EAN/GTIN
- 6935364089092
- HomePlug AV2 Standard - high-speed data transfer rates of up to 1000 Mbps, supporting all your online needs
- Gigabit port - provides secure wired networks for desktops, smart TVs or games consoles
- Plug and play - allows setup of your powerline network in minutes, so you can enjoy fast, seamless wired and wireless connections right away
- Patented Power - Saving Mode - automatically reduces power consumption by up to 85%
Product Info

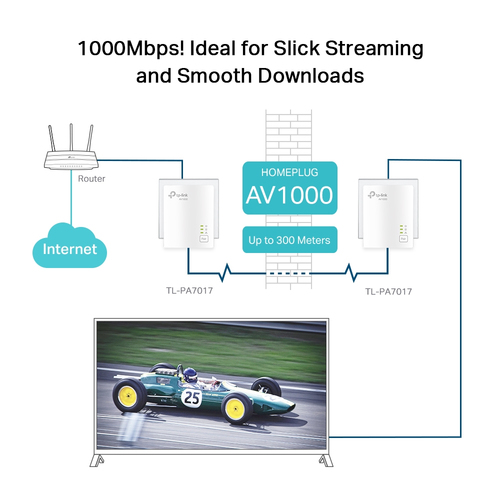

AV1000 Speeds and 300 Meters Range
Using advanced HomePlug AV2 technology, TL-PA7017 KIT ensures stable and high-speed wired connection, providing data transmissions of up to 1000 Mbps* over the electrical wiring for ranges up to 300 meters. Stream in HD, game online and download large files without interruption thanks to reliable powerline links.

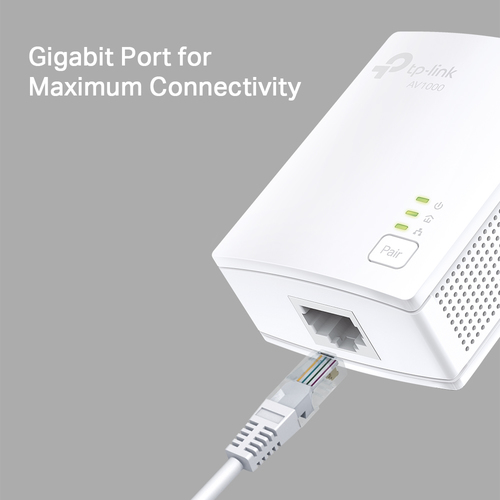

Gigabit Port for Maximum Connectivity
With one Gigabit Ethernet port, TL-PA7017 KIT allows users to connect a bandwidth intensive device to the Internet at high speeds and ensures the smooth transmission of Ultra HD video streaming. This makes the TL-PA7017 KIT the perfect home entertainment companion.

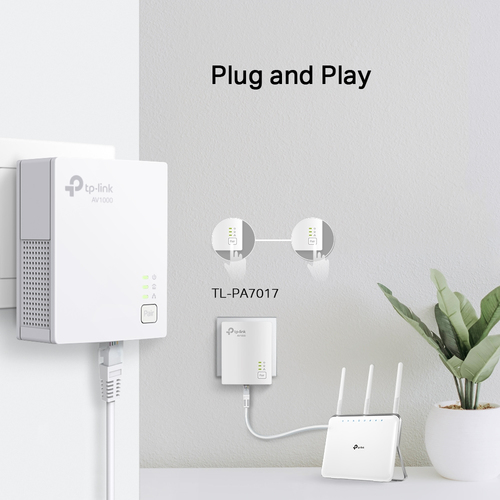

Plug and Play
No Configuration Required
Connect a powerline adapter to the router, plug another powerline adapter into a wall socket in another room, and you’re done!
Reduce Power Consumption by Up to 85%
TL-PA7017 KIT, a new-generation of powerline adapter, with its practical design and sophisticated Power-Saving Mode, will automatically switch from its regular "Working" mode to "Power-Saving" mode reducing its energy consumption by up to 85%
| Performance | |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Power plug | Type F |
| Built-in power socket | No |
| Modulation | OFDM |
| Security algorithms | 128-bit AES |
| Maximum operating distance | 300 m |
| Plug and Play | Yes |
| Power | |
| Power consumption (typical) | 2.3 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 220 V |
| AC input frequency | 50 Hz |
| Design | |
| Antenna type | Internal |
| LED indicators | LAN, PLC, Power |
| Product colour | White |
| Certification | CE |
| System requirements | |
| Windows operating systems supported | Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP |
| Linux operating systems supported | Yes |
| Mac compatibility | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width | 65 mm |
| Depth | 52 mm |
| Height | 58.3 mm |
| Package width | 190 mm |
| Package depth | 136 mm |
| Package height | 100 mm |
| Technical details | |
| Compliance certificates | RoHS |
| Packaging content | |
| Quantity per pack | 2 pc(s) |
| Quick installation guide | Yes |
| Cables included | LAN (RJ-45) |
