StarTech.com Triple Monitor Desk Mount For Up To Three 27in Screens, VESA 75x75/100x100, Tool-Less Arm Adjustments, C-Clamp/Grommet Mount, Spring-Assisted Arms
- Brand
- STARTECH
- Product code
- 3MP2AG-MONITOR-ARM
- SKU
- HV619TVTZJ2XA
- EAN/GTIN
- 0065030902038
- DESK MOUNT MONITOR ARM: Triple monitor VESA mount (75x75/100x100mm) supports up to 15.4lb (7kg) 27-inch displays; Dual articulating and height adjustable steel arms w/central fixed monitor mount; C-clamp/grommet mounting
- QUICK INSTALLATION: Unique top-screw desk clamp for hassle-free installation without the need to go under the desk; Interchangeable C-clamp/grommet mount for desks up to 2" (50mm) thick; Includes tools for arm tension adjustment; Quick release VESA plates
- RANGE OF MOTION: Ergonomic three-monitor mount features articulating mechanical spring arms with toolless adjustments of +/-180° horizontal swivel, +/-90° tilt, and +/-90° screen rotation for portrait and landscape orientations
- ONE-TOUCH ADJUSTMENT: Mechanical spring-assisted arms w/height range of 8.8inches (275mm) & max arm extension of up to 28.4inches (722mm) from the pole; Designed for adjustable arm height along the pole
- ORGANIZED WORKSPACE: Enhance productivity & multi-tasking on high-performance workstations; Multi-monitor mount with cable management channels along the arms to keep cables out of sight; A pole-mounted cable clip helps maintain a tidy setup
Product Info

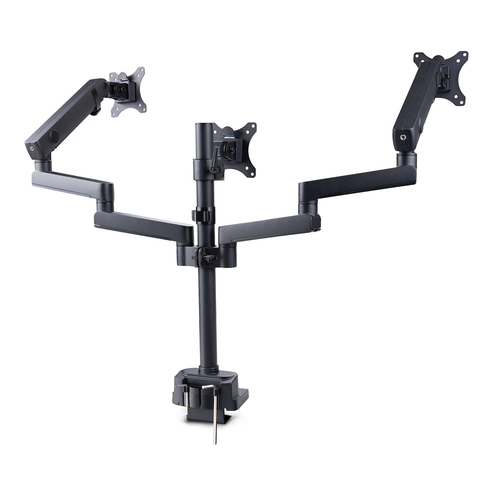

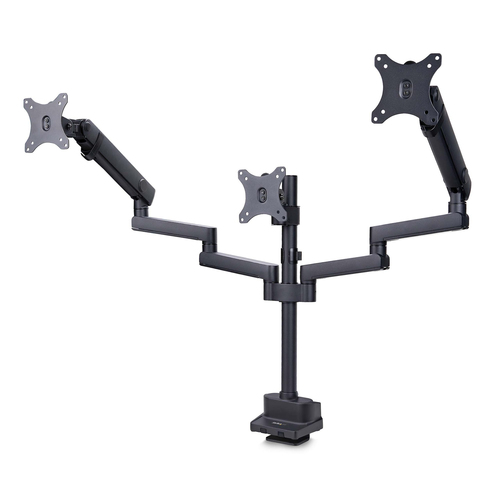

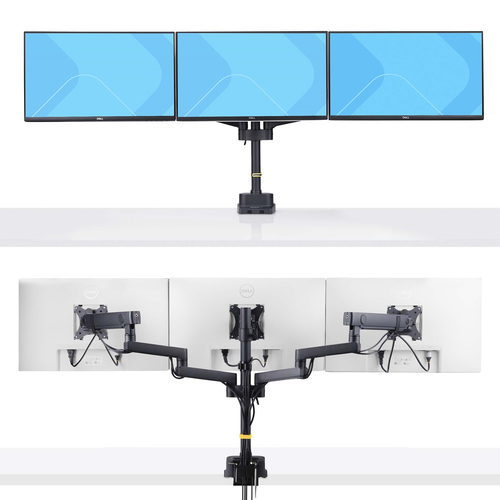

Triple monitor desk mount with support up to 27" monitors with height adjustable articulating arms

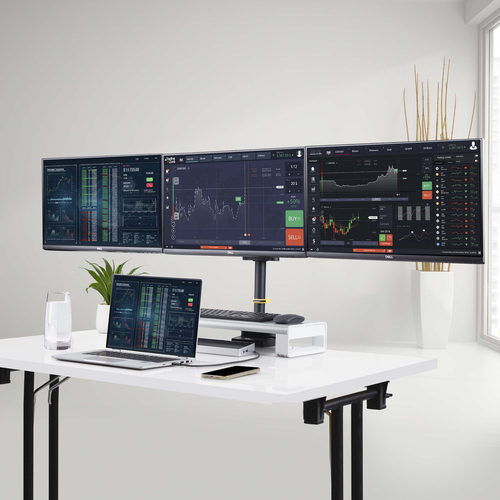

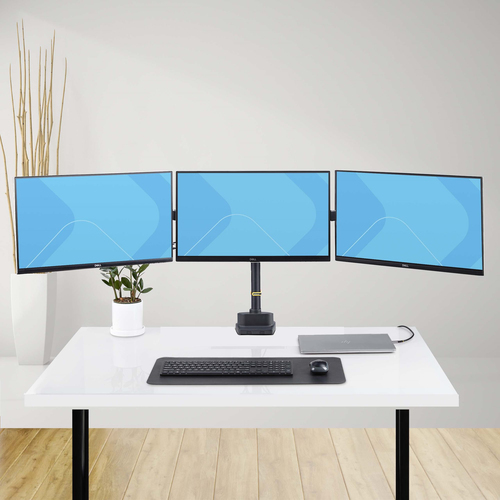

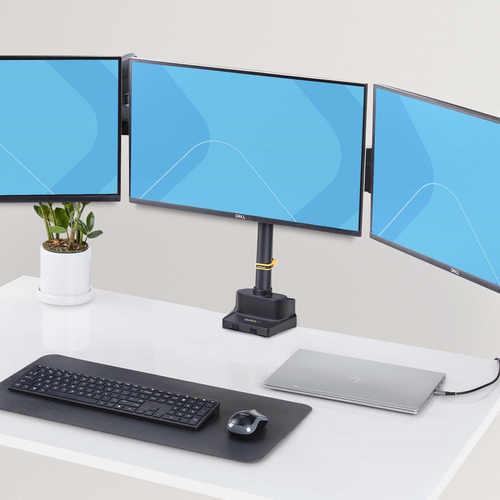

This monitor desk mount is designed to support up to three 27-inch displays, creating an ergonomic multi-monitor setup that provides an extensive viewing area for productivity. The mechanical spring-assisted arms allow multiple adjustment to suit different ergonomic needs.
Top-Down Installation

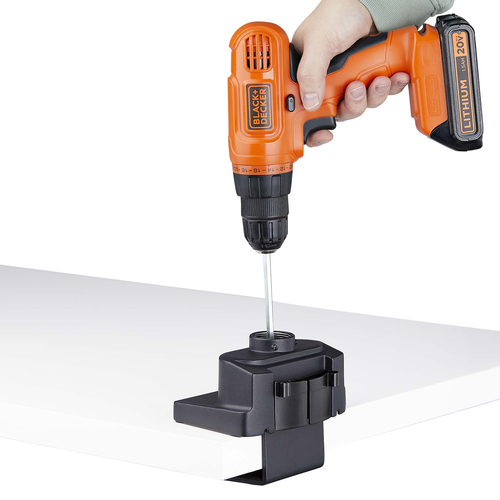

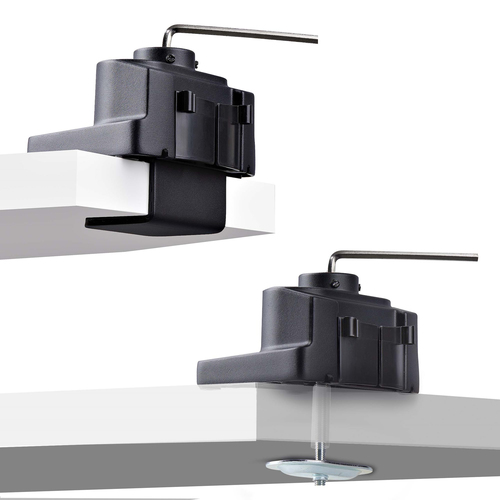

The unique top-screw desk clamp simplifies installation by enabling users to tighten the clamp from manually from above using a hex key or a hand drill, eliminating the need to go under the desk. In addition, the desk clamp is designed with an interchangeable C-clamp and grommet mount to accommodate desks up to 2 inches (50mm) thick, providing flexibility for different desk configurations.

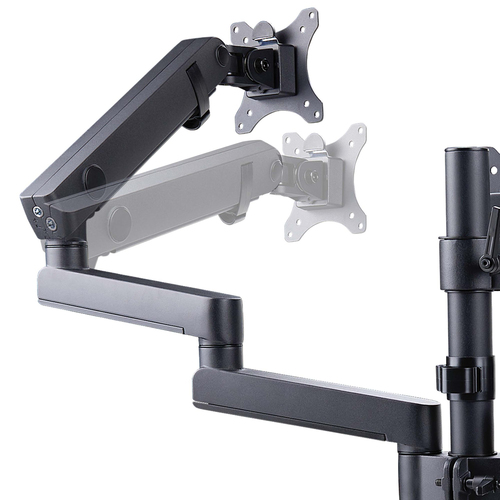

Height Adjustment with One Smooth Motion
The central monitor mount enables height adjustments along the 22-inch (562mm) pole, allowing users to customize the screen placement for maximum productivity and comfort. The outboard arms enable independent toolless height adjustment of up to 10in (255mm) with effortless one-touch motion. For additional adjustments, reposition the outboard arms along the pole for different height ranges. The arms can extend up to 28.4in (722mm) from the pole.
Range of Motion

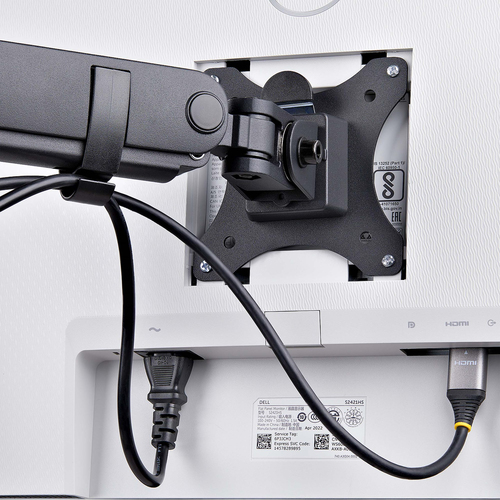

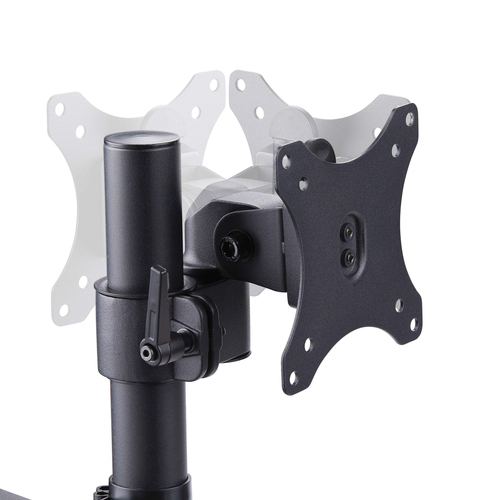

The articulating arms allow toolless adjustments of +/-180° horizontal swivel and +/-90° screen rotation on the VESA plates for portrait or landscape orientations. The VESA mounting plates allow for +/-90° display tilt to provide an ideal viewing angle.

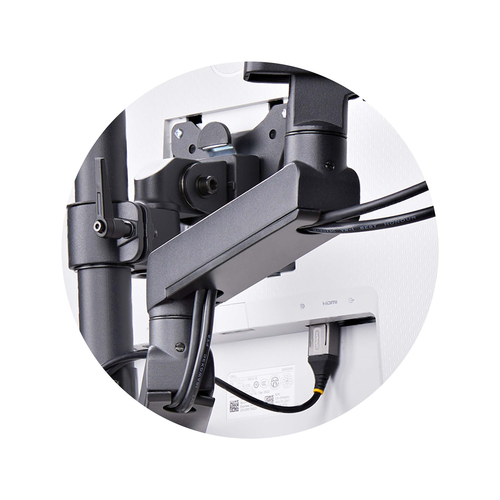

Cable Management
To maintain an organized workspace, the adjustable arms feature cable management channels along the underside to keep cables out of sight, reducing clutter and contributing to a tidy setup. A cable clip on the pole also helps maintain an organized workspace.
The StarTech.com Advantage
| Mounting | |
|---|---|
| Maximum weight capacity | 21 kg |
| Maximum weight capacity (per display) | 7 kg |
| Maximum screen size | 68.6 cm (27") |
| Mounting | Clamp/Grommet |
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Number of displays supported | 3 |
| Extension arm (max) | 72.2 cm |
| Desk thickness (max) | 5 cm |
| Ergonomics | |
| Height adjustment | Yes |
| Height adjustment range | 225 - 562 mm |
| Tilt angle range | -90 - 90° |
| Rotating | Yes |
| Angle of rotation | 90° |
| Pivot angle | -180 - 180° |
| Cable management | Yes |
| Design | |
| Housing material | Aluminium, Plastic, Steel |
| Product colour | Black |
| Anti-theft function | No |
| Weight & dimensions | |
| Width | 176 mm |
| Depth | 1400 mm |
| Height | 649 mm |
| Weight | 1 kg |
| Packaging data | |
| Package width | 555 mm |
| Package depth | 395 mm |
| Package height | 115 mm |
| Package weight | 8.9 kg |

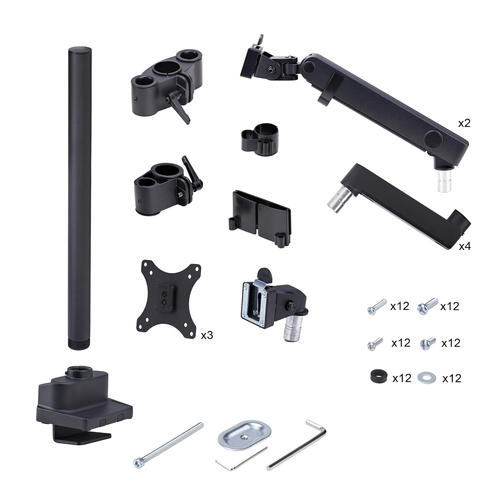

| Packaging content | |
| Wrench included | Yes |
| Wrench type | Hexagonal wrench |
| Clamp included | Yes |
| VESA mount included | Yes |
| Number of cable clips | 1 |
| Screws included | Yes |
| Number of screws | 49 |
| Number of washers included | 12 |
| Number of spacers included | 12 |
| Grommet plate included | Yes |
| Manual | Yes |
| Logistics data | |
| Master (outer) case width | 570 mm |
| Master (outer) case length | 405 mm |
| Master (outer) case height | 250 mm |
| Products per master (outer) case | 2 pc(s) |
