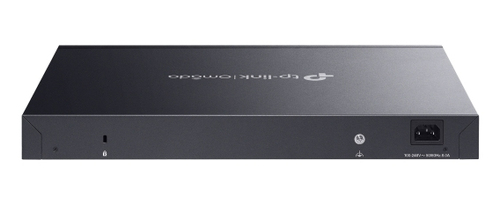

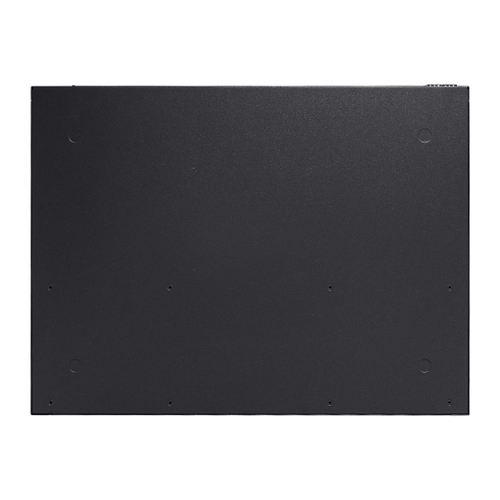

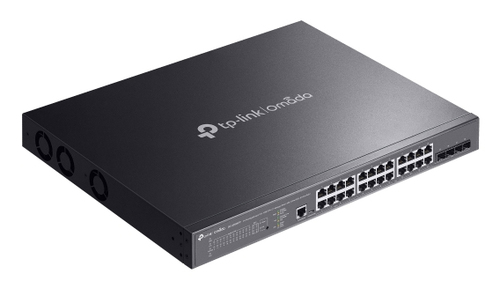

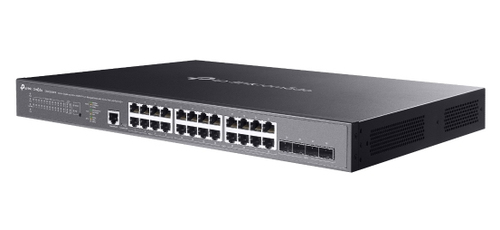

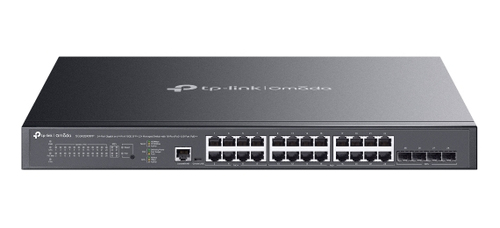

TP-Link Omada SG3428XMPP network switch

SG3428XMPP - 8885020620863

TP-Link Omada SG3428XMPP network switch Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

Brand: TP-Link
Product Family: Omada
Product code: SG3428XMPP
SKU: 0WRPTUA3IA8X5
EAN/GTIN: 8885020620863

8× Gigabit 802.af/at/bt PoE++ ports (Max 90 W PoE budget for each port)
16× Gigabit 802.3af/at PoE+ ports (Max 30 W budget for each port)
500 W total PoE budget*
Centralized cloud management via the web or the Omada app†
Standalone management via web, CLI, SNMP, and RMON
Static Routing, VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
ERPS supports rapid protection and recovery in a ring topology
Durable metal casing and rack-mountable design

€649.19 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

Product Info

Omada 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++

TP-Link Omada SG3428XMPP. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45/Micro-USB. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at. Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Empowering the High-Power Devices with Gigabit PoE++ Ports

Easily Build a Whole 10G Multi-gigabit Network

Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.

Specifications

Management features

Switch type Managed

Switch layer L2+

Quality of Service (QoS) support Yes

Web-based management Yes

Cloud-managed Yes

ARP inspection Yes

Configuring Location Settings (CLI) Yes

System event log Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity 24

Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)

SFP+ module slots quantity 4

Console port RJ-45/Micro-USB

Power connector AC-in jack

Network

Networking standards IEEE 802.3af, IEEE 802.3at

10G support Yes

Port mirroring Yes

Flow control support Yes

Link aggregation Yes

Broadcast storm control Yes

Rate limiting Yes

Spanning tree protocol Yes

Head-of-line (HOL) blocking Yes

VLAN support Yes

Data transmission

Switching capacity 128 Gbit/s

Forwarding rate 95.23 Mpps

MAC address table 16000 entries

Store-and-forward Yes

Jumbo frames support Yes

Jumbo frames 9000

Packet buffer memory 12 MB

Security

DHCP features DHCP client, DHCP relay, DHCP server

Access Control List (ACL) Yes

IGMP snooping Yes

MAC address filtering Yes

Static port security Yes

SSH/SSL support Yes

BPDU filtering/protection Yes

IP-MAC-Port binding Yes

Authentication Auto VLAN, Guest VLAN

Multicast features

Multicast support Yes

Design

Rack mounting Yes

Form factor 1U

Product colour Black

Reset button Yes

LED indicators Yes

Number of fans 3 fan(s)

Power

Power source AC

Power supply included Yes

AC input voltage 100 - 240 V

AC input frequency 50/60 Hz

Power consumption (max) 486.2 W

Power over Ethernet (PoE)

Power over Ethernet (PoE) Yes

Power over Ethernet plus (PoE+) ports quantity 16

Power over Ethernet 4PPoE (PoE++) ports quantity 8

Power over Ethernet (PoE) power per port 30 W

Total Power over Ethernet (PoE) budget 500 W

Operational conditions

Operating temperature (T-T) 0 - 40 °C

Storage temperature (T-T) -40 - 70 °C

Operating relative humidity (H-H) 10 - 90%

Storage relative humidity (H-H) 5 - 90%

Heat dissipation 1658.78 BTU/h

Weight & dimensions

Width 440 mm

Depth 330 mm

Height 44 mm

Packaging content

Cables included AC

Quick start guide Yes

Certificates

Certification CE, FCC, RoHS
