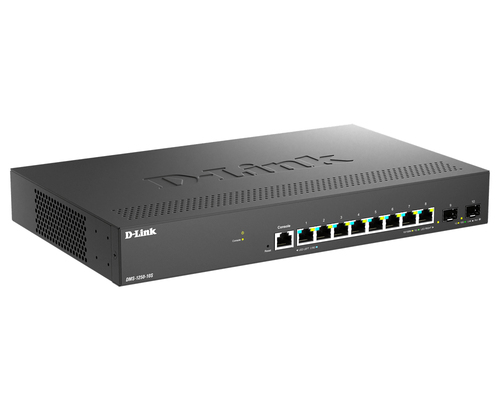

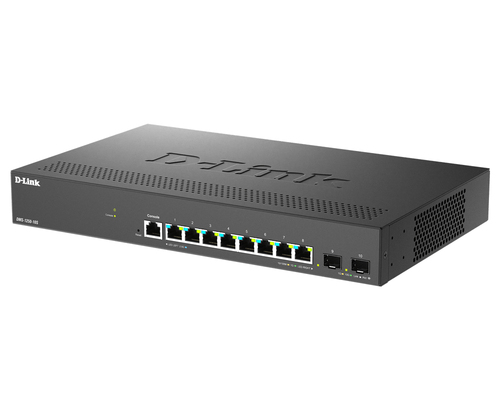

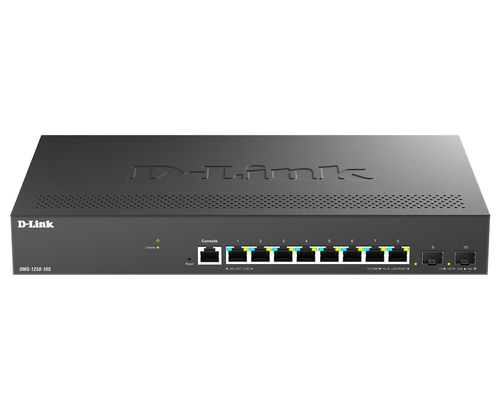

D-Link 10-Port Multi-Gigabit Smart Managed Switch including 8 x 2.5G & 2 10G SFP+
- Brand
- D-Link
- Product code
- DMS-1250-10S/B
- SKU
- HREN47P5X3MUL
- 8 Ports 2.5G for downlink
- 2 Ports 10G SFP+ for uplink
- 6kV surge protection on all 2.5G ethernet ports
- Support LACP 802.3ad Link Aggregation
- Support Static Routing
- Support Loopback Detection
- Support Spanning Tree Protocol(STP/RSTP/MSTP)
- AAA support for RADIUS/TACACS+
- Support D-Link Safeguard Engine
- Centralized Management: Nuclias Network Controller
Product Info
2.5G Speed, Ready for Wi-Fi 6 and More
The DMS-1250 Series switches can enhance your network by connecting a Wi-Fi 6 Access Point to any of the 2.5 Gbps ports, effectively maximizing throughput and speed. Multi-Gigabit Ethernet eliminates potential bottlenecks with Wi-Fi 6 Access Points, enabling your network to fully leverage the efficiency and high speeds offered by Wi-Fi 6.
6 kV Surge Protection for All Ethernet Ports
The DMS-1250 Series switches offer enhanced 6kV surge protection on all 2.5-Gigabit Ethernet access ports, ensuring that your network remains resilient and that your devices stay safe from electrical surges.
Easy Management by DNC & D-View 8
The DMS-1250 Series switches offers a range of management tools to cater to users' diverse needs. D-Link Nuclias Controller (DNC) and D-Link Nuclias Hub (DNH) enable the discovery and management of multiple D-Link devices, providing access to configure settings efficiently. Furthermore, the DMS-1250 Series can be seamlessly managed through D-View 8, a comprehensive central network management system. SNMP functionality allows for centralized network asset management, remote configuration, and logging functions.
Best Choice for SOHO, SMB and MDU
The DMS-1250 Series switches are versatile, suitable for SOHO, SMB, and MDU environments. They provide high-speed data transmission with 2.5GE and a crucial 10G speed uplink for external connectivity. This high-speed uplink ensures that the entire MDU can access external services without encountering data bottlenecks. Furthermore, they effectively implement IEEE 802.3at or IEEE 802.3bt in DMS-1250-10SP, 10SPL, and 12TP to enable devices to connect and receive power supply.
| Management features | |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
| MIB support | Y |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| 2.5G Ethernet (copper) ports quantity | 8 |
| Combo SFP ports quantity | 2 |
| Power connector | AC-in jack |
| Network | |
| Networking standards | IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3z |
| 10G support | Yes |
| Port mirroring | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| Spanning tree protocol | Yes |
| Ethernet LAN data rates | 100,1000,2500 Mbit/s |
| VLAN support | Yes |
| Number of VLANs | 4094 |
| Data transmission | |
| Switching capacity | 80 Gbit/s |
| Forwarding rate | 59.53 Mpps |
| MAC address table | 16000 entries |
| Store-and-forward | Yes |
| Static route | Yes |
| Number of static routes | 128 |
| Jumbo frames support | Yes |
| Jumbo frames | 12000 |
| Security | |
| DHCP features | DHCP client, DHCP server, DHCP snooping |
| Access Control List (ACL) | Yes |
| Access Control List (ACL) IPv4 entries | 768 |
| Access Control List (ACL) IPv6 entries | 384 |
| IGMP snooping | Yes |
| IGMP entries | 256 |
| Loop protection | Yes |
| Password protection | Yes |
| Authentication type | RADIUS |
| Design | |
| Rack mounting | Yes |
| Product colour | Black |
| Reset button | Yes |
| LED indicators | Yes |
| Performance | |
| Memory type | DRAM |
| Internal memory | 512 MB |
| Flash memory | 32 MB |
| Power | |
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 13.58 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Width | 330 mm |
| Depth | 200 mm |
| Height | 44 mm |
| Weight | 1.88 kg |
| Packaging content | |
| Quick start guide | Yes |
| Certificates | |
| Certification | CB, UL, BSMI, CE Class A, VCCI Class A, FCC Class A, IC, BSMI, RCM |
