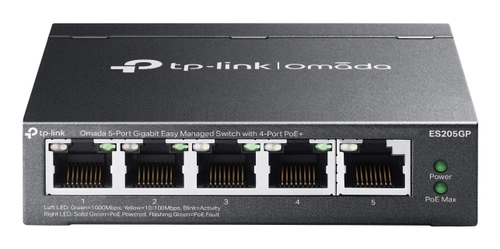

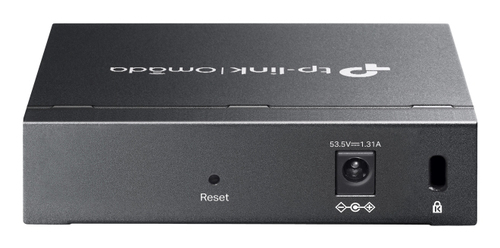

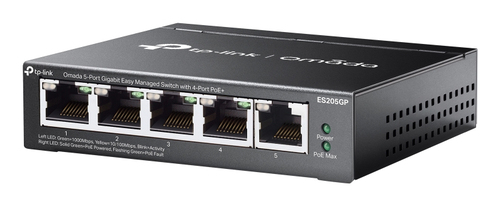

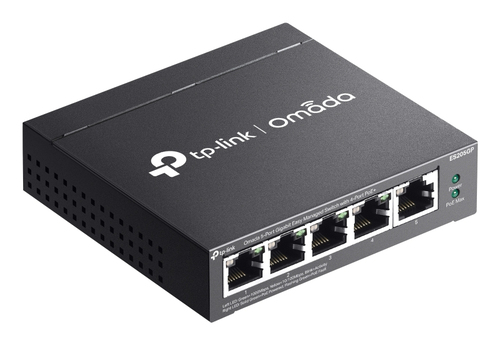

TP-Link Omada 5-Port Gigabit Easy Managed Switch with 4-Port PoE+
- Brand
- TP-Link
- Product Family
- Omada
- Product code
- ES205GP
- SKU
- 5MMHSMEYJCQER
- EAN/GTIN
- 8885020620948
- 5× 10/100/1000Mbps RJ45 ports (4× 802.3at/af-compliant PoE+)
- 65W Power Budget, with up to 30W for each PoE port*
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app†
- Up to 250m PoE**, QoS△, PoE Auto Recovery‡, and Port Isolation for reliable surveillance networking
- Automatic Loop Prevention, VLAN, and IGMP Snooping
- Fanless design for silent operation
- Durable metal casing and desktop/wall mounting design
Product Info
Omada 5-Port Gigabit Easy Managed Switch with 4-Port PoE+
Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.
- Easy to Use
- Hardware, Software, or Cloud-Based Controllers
- Centralized Management via Web or Omada App
- Zero-Touch Provisioning (ZTP)
Abundant Functions for Reliable Surveillance Networking
- Transmission Distance up to 250 m
- Priority Video Quality Guaranteed
- Secure Traffic Separation via Port Isolation
- PoE Auto Recovery
Multiple Application Scenarios
Surveillance
Works with IP Cameras
Conference Call
Works with IP Phones
Wi-Fi Coverage
Works with Access Points
Wired Connections
Works with Non-PoE Devices such as PCs and Printers

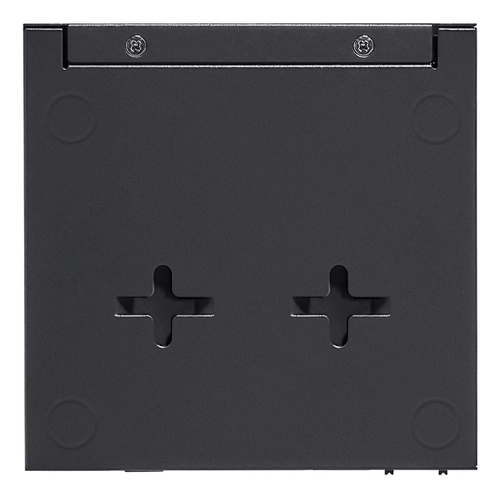

Compact and Durable Metal Casing, Featuring Desktop/Wall Mounting and a Fanless Design
| Management features | |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Cloud-managed | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Network | |
| Networking standards | IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3at, IEEE 802.3x |
| 10G support | No |
| Port mirroring | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| VLAN support | Yes |
| Virtual LAN features | MTU VLAN, Port-based VLAN, Tagged VLAN |
| Optical fiber | |
| Transmission distance (max) | 0.25 km |
| Data transmission | |
| Switching capacity | 10 Gbit/s |
| Forwarding rate | 7.4 Mpps |
| MAC address table | 8000 entries |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 15 |
| Packet buffer memory | 4 MB |
| Security | |
| DHCP features | DHCP client |
| IGMP snooping | Yes |
| Loop protection | Yes |
| Design | |
| Product colour | Black |
| Reset button | Yes |
| LED indicators | Yes |
| Wall mountable | Yes |
| Performance | |
| Fanless | Yes |
| Power | |
| Power source | AC/DC |
| Power supply included | Yes |
| DC input voltage | 53.5 V |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 65 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width | 100 mm |
| Depth | 98 mm |
| Height | 25 mm |
| Packaging content | |
| User guide | Yes |
| Packaging data | |
| Package type | Box |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
