TP-Link Omada TL-POE10E network extender

POE10E - 4895252501902

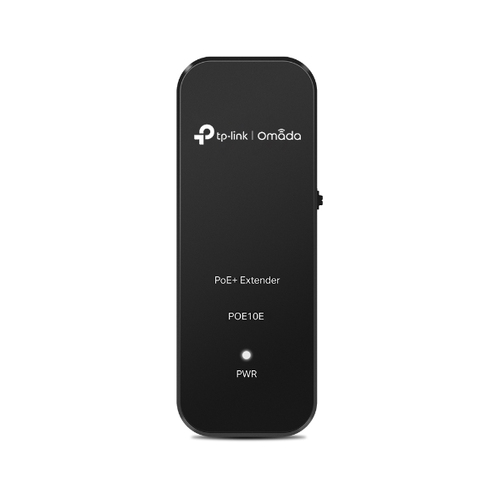

TP-Link Omada Fast Ethernet PoE+ Extender

Brand: TP-Link
Product Family: Omada
Product code: POE10E
SKU: K1G49ILRNJQXO
EAN/GTIN: 4895252501902

2×10/100 Mbps ports
Compliance with 802.3af/at devices
Supplies up to 20 W, which meets the power consumption requirements of most IP cameras
Extends a PoE/PoE+ network connection an additional 100 m/250 m (10 Mbps mode) from the PoE power sourcing equipment
Plug and Play, no configuration required

€32.2 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

Product Info

2× 10 Mbps /100 Mbps RJ45 PoE, 802.3i/802.3u, 71x26x16 mm

TP-Link Omada Fast Ethernet PoE+ Extender. Type: Network repeater, Maximum transfer distance: 250 m, Data transfer rate: 100 Mbit/s. Cabling technology: 10/100Base-T(X), Networking standards: IEEE 802.3i, IEEE 802.3u. Host interface: RJ-45. Product colour: Black, Housing material: Plastic, LED indicators: Power. Width: 71 mm, Depth: 26 mm, Height: 16 mm

The Fast Ethernet PoE+ Extender TL-POE10E extends a PoE/PoE+ network connection an additional 100m – 250m (10 Mbps Mode) from the PoE power source equipment. TL-POE10E expands network deployment with 802.3af/at PoE compliant devices, making it ideal for remote cabling requirements in surveillance scenarios. Distance will no longer be a barrier to network deployment.

Specifications

Performance

Type Network repeater

Maximum transfer distance 250 m

Data transfer rate 100 Mbit/s

Cable types supported Cat5e

Ethernet LAN data rates 10,100 Mbit/s

Auto-negotiation Yes

Plug and Play Yes

Network

Cabling technology 10/100Base-T(X)

Networking standards IEEE 802.3i, IEEE 802.3u

Ports & interfaces

Host interface RJ-45

Ethernet LAN (RJ-45) ports 2

Power over Ethernet (PoE) ports quantity 2

RJ-45 input ports 1

RJ-45 output ports 1

Design

Product colour Black

Housing material Plastic

LED indicators Power

Quantity per pack 1 pc(s)

Certification FCC, CE, RoHS

Operational conditions

Operating temperature (T-T) 0 - 45 °C

Storage temperature (T-T) -40 - 70 °C

Operating relative humidity (H-H) 10 - 90%

Storage relative humidity (H-H) 5 - 90%

Weight & dimensions

Width 71 mm

Depth 26 mm

Height 16 mm

Packaging content

Quick start guide Yes

Sustainability

Sustainability compliance Yes

Certificates

Compliance certificates Federal Communications Commission (FCC), RoHS
