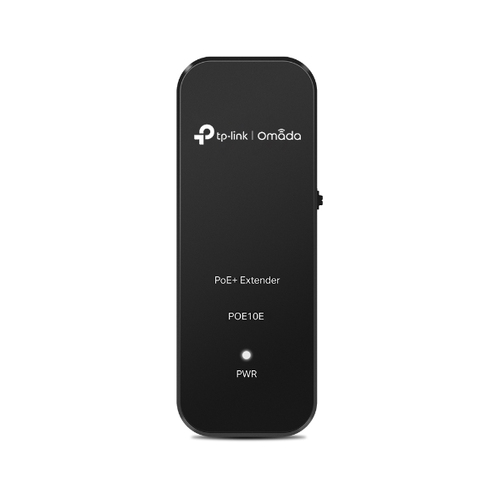

TP-Link Omada TL-POE10E network extender
TP-Link Omada Fast Ethernet PoE+ Extender
- Brand
- TP-Link
- Product Family
- Omada
- Product code
- POE10E
- SKU
- K1G49ILRNJQXO
- EAN/GTIN
- 4895252501902
- 2×10/100 Mbps ports
- Compliance with 802.3af/at devices
- Supplies up to 20 W, which meets the power consumption requirements of most IP cameras
- Extends a PoE/PoE+ network connection an additional 100 m/250 m (10 Mbps mode) from the PoE power sourcing equipment
- Plug and Play, no configuration required
€26.57
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Product Info
The Fast Ethernet PoE+ Extender TL-POE10E extends a PoE/PoE+ network connection an additional 100m – 250m (10 Mbps Mode) from the PoE power source equipment. TL-POE10E expands network deployment with 802.3af/at PoE compliant devices, making it ideal for remote cabling requirements in surveillance scenarios. Distance will no longer be a barrier to network deployment.
| Performance | |
|---|---|
| Type | Network repeater |
| Maximum transfer distance | 250 m |
| Data transfer rate | 100 Mbit/s |
| Cable types supported | Cat5e |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Auto-negotiation | Yes |
| Plug and Play | Yes |
| Network | |
| Cabling technology | 10/100Base-T(X) |
| Networking standards | IEEE 802.3i, IEEE 802.3u |
| Ports & interfaces | |
| Host interface | RJ-45 |
| Ethernet LAN (RJ-45) ports | 2 |
| Power over Ethernet (PoE) ports quantity | 2 |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| Design | |
| Product colour | Black |
| Housing material | Plastic |
| LED indicators | Power |
| Quantity per pack | 1 pc(s) |
| Certification | FCC, CE, RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width | 71 mm |
| Depth | 26 mm |
| Height | 16 mm |
| Packaging content | |
| Quick start guide | Yes |
| Sustainability | |
| Sustainability compliance | Yes |
| Certificates | |
| Compliance certificates | Federal Communications Commission (FCC), RoHS |
