Neomounts DS70-250BL2 Monitor arm 17-32" - gas spring - Topfix - 180°-stop
- Brand
- NEOMOUNTS
- Product code
- DS70-250BL2
- SKU
- 02B5NJ4VCLLME
- EAN/GTIN
- 8717371442996
- Maximum weight capacity: 9 kg
- Minimum screen size: 43.2 cm (17") Maximum screen size: 81.3 cm (32")
- Number of displays supported: 2
- Clamp/Grommet Mounting type: Desk
- Maximum VESA mount: 100 x 100 mm
- Gas spring Height adjustment Tilt adjustment
- Cable management
- Aluminium Black
Product Info

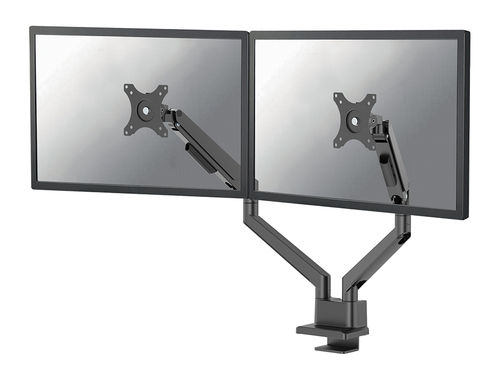

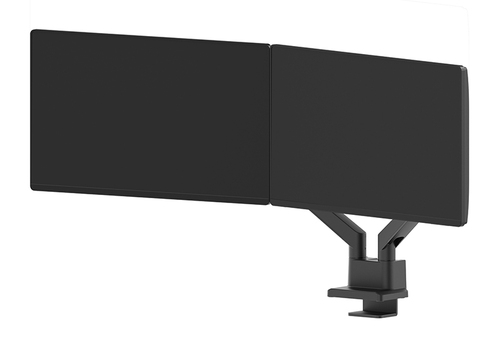

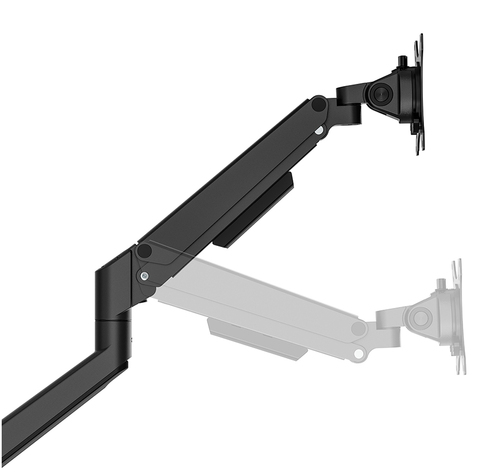

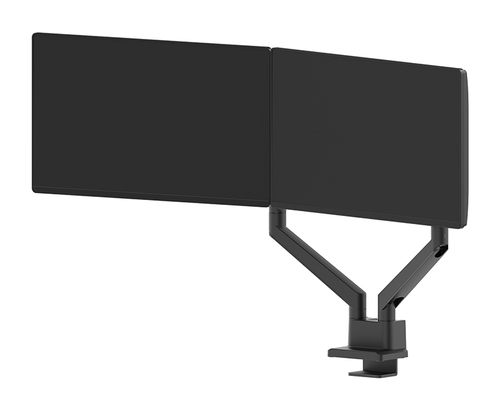

The Neomounts DS70-250BL2 NEXT Slim is a full motion desk mount designed for two screens up to 32", boasting a maximum weight capacity of 9 kg per screen. The versatile tilt (90°), rotate (360°) and swivel (180°) technology enables seamless adjustment to any desired viewing angle to fully optimize the screen's capabilities. With the gas spring height adjustment (21,5-49,5 cm) and depth adjustment (7-52,5 cm) you can effortlessly adjust the mount to suit your ergonomic needs.

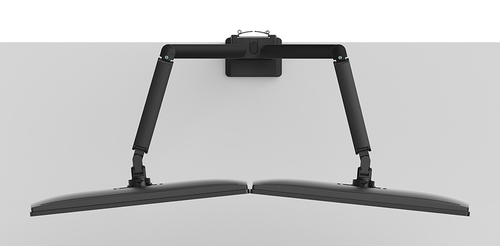

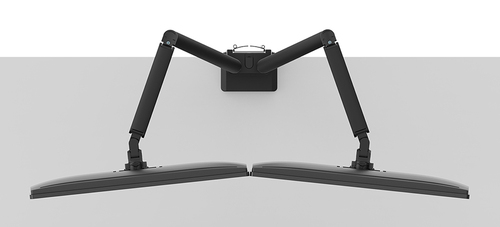

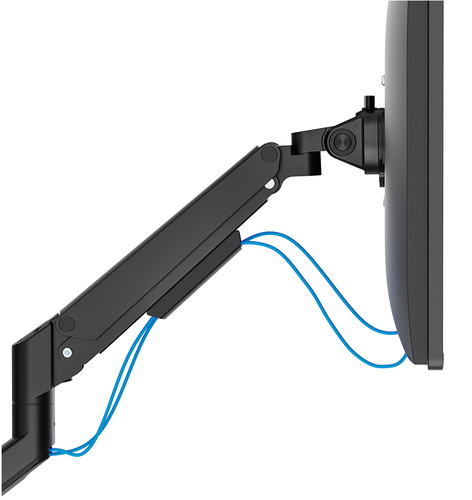

The DS70-250BL2 monitor arm features a nifty 180° stop mechanism, that prevents the mount from making contact with wall or separation panel when installed near it, while the integrated cable management system maintains a clutter-free desk.

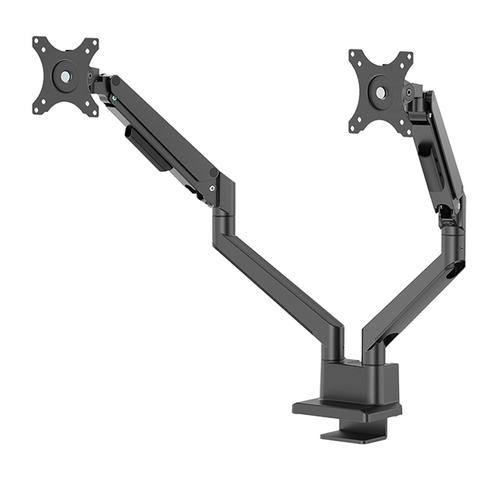

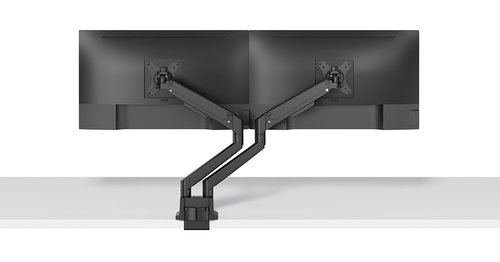

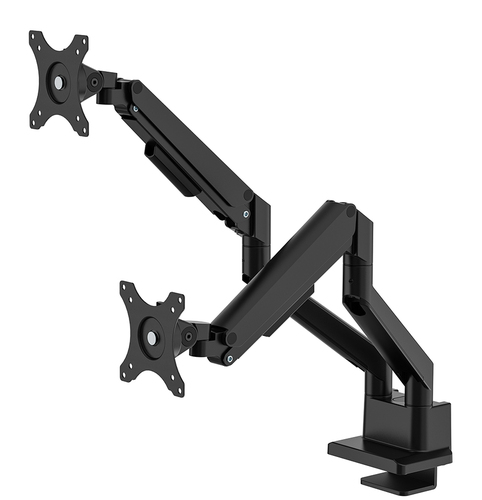

The elegant black VESA plates of the NEXT Slim provide a perfect match with your screen, accommodating standard 75x75 or 100x100 mm VESA patterns. For non-standard hole patterns, Neomounts has various VESA optional adapter plates available. The Quick-release VESA system enables easy setup, while the topfix clamp or grommet ensures a quick and straightforward installation.

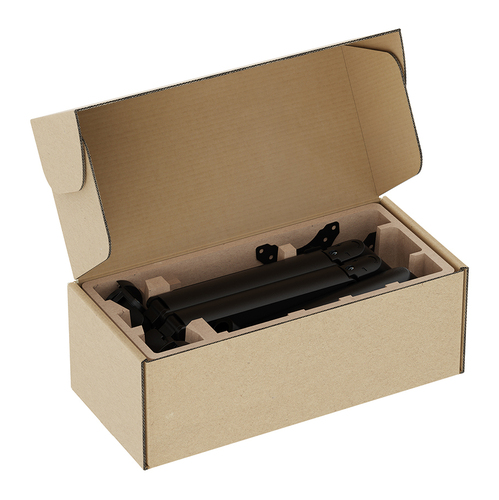

Committed to sustainability, the packaging of NEXT Slim desk mounts is 100% plastic-free and entirely made from recyclable cardboard and paper.
| Mounting | |
|---|---|
| Minimum screen size | 43.2 cm (17") |
| Maximum weight capacity | 9 kg |
| Maximum weight capacity (per curved/ultra-wide display) | 8 kg |
| Maximum screen size | 81.3 cm (32") |
| Mounting | Clamp/Grommet |
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Number of displays supported | 2 |
| Desk thickness (min) | 1 cm |
| Desk thickness (max) | 5 cm |
| Distance to the wall (min) | 12 cm |
| Distance to the wall (max) | 40.4 cm |
| Ergonomics | |
| Height adjustment | Yes |
| Height adjustment type | Gas spring |
| Height adjustment range | 215 - 495 mm |
| Adjustable depth | Yes |
| Depth adjustment range | 70 - 525 mm |
| Tilt adjustment | Yes |

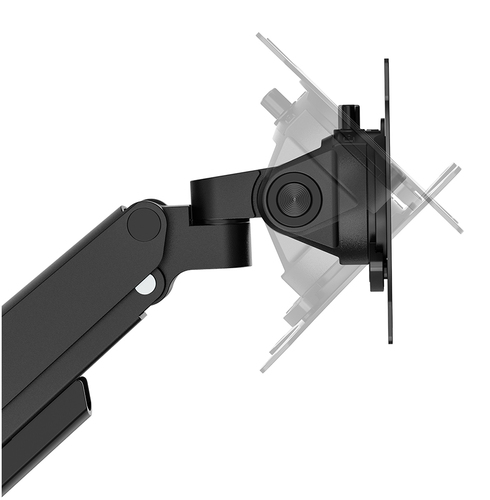

| Tilt angle range | -45 - 45° |
| Swivelling | Yes |

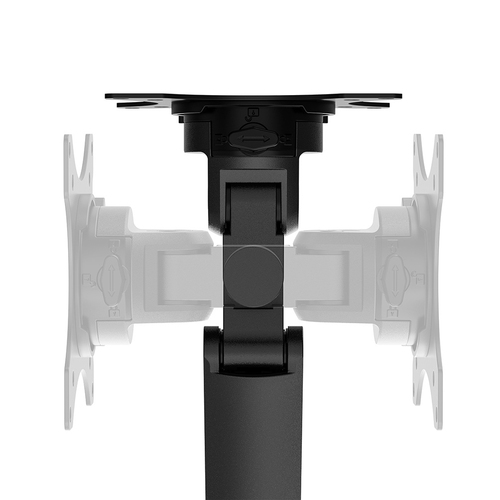

| Swivel angle range | -90 - 90° |
| Rotating | Yes |
| Angle of rotation | 360° |
| Cable management | Yes |
| Design | |
| Housing material | Aluminium |
| Product colour | Black |

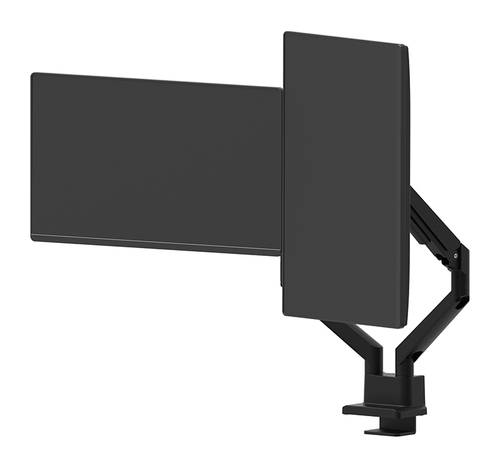

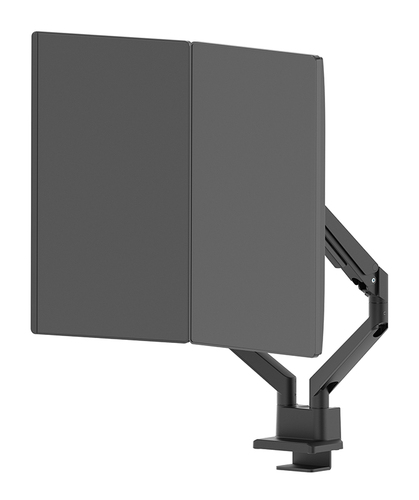

| Orientation | Landscape/Portrait |
| Accepts padlock | No |
| Weight & dimensions | |
| Width | 114 mm |
| Depth | 580 mm |
| Height | 552 mm |
| Packaging data | |
| Package width | 192 mm |
| Package depth | 147 mm |
| Package height | 430 mm |
| Other features | |
| Minimum weight | 1 kg |
| Width adjustment range | 0 - 984 mm |
| Warranty period | 5 year(s) |
| Logistics data | |
| Master (outer) case width | 405 mm |
| Master (outer) case length | 310 mm |
| Master (outer) case height | 445 mm |
| Master (outer) case gross weight | 20.7 kg |
| Products per master (outer) case | 4 pc(s) |
| Country of origin | China |
| Master (outer) case net weight | 17.4 kg |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 80 pc(s) |
