AOC AD110D0 monitor mount / stand 81.3 cm (32") Desk Black
- Brand
- AOC
- Product code
- AD110D0
- SKU
- RIU5FN4R0ADOT
- Maximum weight capacity: 9 kg
- Minimum screen size: 33 cm (13") Maximum screen size: 81.3 cm (32")
- Number of displays supported: 2
- Clamp/Bolt-through Mounting type: Desk
- Maximum VESA mount: 100 x 100 mm
- Gas spring Height adjustment
- Cable management
- Aluminium Black
Product Info

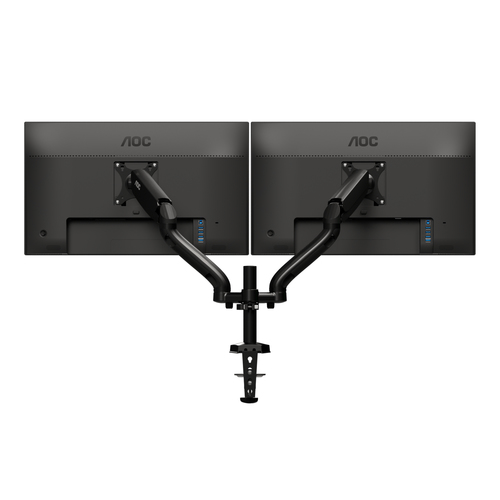

Dual monitor arm for up to 32“ displays
The gas-spring loaded, sleek AD100 dual monitor arm can be clamped to desks, holds two displays up to 32“ size. 360° pivot range, wide tilt range, 320 mm height range delivers huge flexibility.
Description
C-Lamp or Grommet Mount attachment
Your new AOC monitor arm is guaranteed to fit onto your desk. With either the grommet mount or the c-lamp method, you can easily fasten the mount to your tabletop. Your monitor will be firmly secured and ready for every gaming action.
Swivel & Tilt

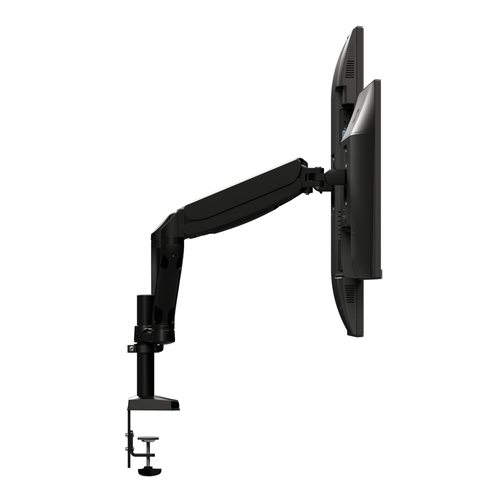

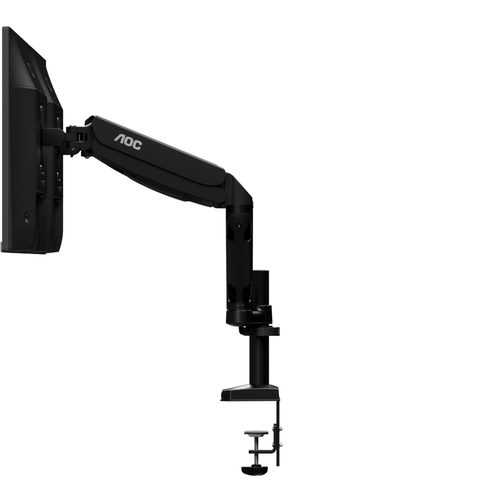

Some monitor stands come with a limited tilt and swivel range. Using a monitor arm increases your monitor’s range of motion dramatically: You can tilt the monitor in a wide range so it points upwards or downwards for the optimal viewing angle. The integrated swivel enables you to turn the display horizontally.

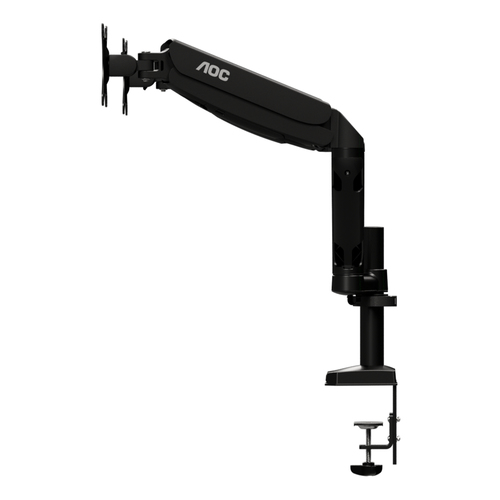

Durable Mechanical Spring
A mechanical spring tensioning system is built into the upper arm to match the weight of the monitor. More than 30,000 exercise tests, safer and stronger.
Cable Management

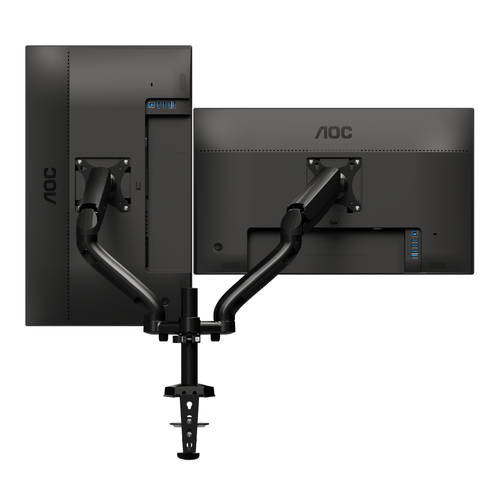

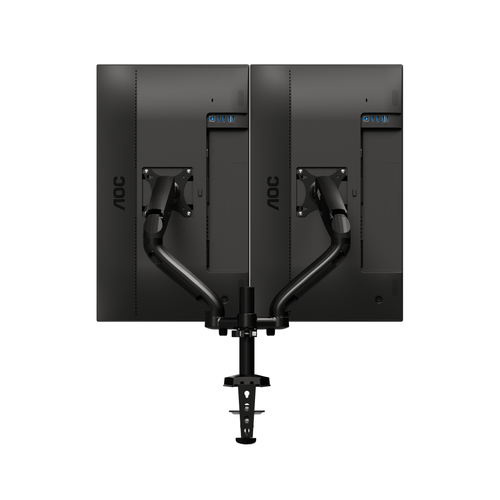

Using the detachable covers on the monitor arm, simply push through your cables inside the pre-allocated routes in the monitor arm. After fitting both power and display cables inside, close the covers and experience a tidy desk with neatly organised connections. Cables are kept in place even when moving the display or turning it into portrait mode.
Vesa Connection
Any monitor equipped with a VESA mounting grid (100x100 or 75x75) can easily be attached to the monitor arm. The VESA mounting system is a widely used solution that most monitors are equipped with. Four screws hold the monitor securely to the mount, by its centre of gravity.
Double mount
Why limit yourself with one monitor if you can stream a game on your first screen while also interacting with your chat on the second? You can save desk space by going for a double mount and achieve a professional looking aesthetic for your gaming area.
Mounting | |
---|---|
Minimum screen size | 33 cm (13") |
Maximum weight capacity | 9 kg |
Maximum screen size | 81.3 cm (32") |
Mounting | Clamp/Bolt-through |
Mounting type | Desk |
Minimum VESA mount | 75 x 75 mm |
Maximum VESA mount | 100 x 100 mm |
Panel mounting interface | 75 x 75,100 x 100 mm |
Number of displays supported | 2 |
Clamp mount desk thickness (max) | 10.5 cm |
Grommet mount desk thickness (max) | 8.3 cm |
Mounting hole range | 7 - 87 mm |
Ergonomics | |
Height adjustment | Yes |
Height adjustment type | Gas spring |
Adjustable depth | Yes |
Depth adjustment range | 0 - 460 mm |
Tilt angle range | -45 - 60° |
Swivel angle | 360° |
Swivel angle range | -90 - 90° |
Pivot angle | 0 - 360° |
Cable management | Yes |
Design | |
Housing material | Aluminium |
Product colour | Black |
Weight & dimensions | |
Width | 69 mm |
Depth | 12.5 mm |
Height | 24.5 mm |
Weight | 5.11 kg |
Packaging data | |
Package width | 125 mm |
Package depth | 690 mm |
Package height | 245 mm |
Package weight | 5.1 kg |
Packaging content | |
Packaging content | User Manual, Monitor Arm, Clamp mount, Grommet mount, Installation materials |
Other features | |
Height (max) | 58 cm |
Technical details | |
Height adjustment | 32 cm |
Weight (with stand) | 5.7 kg |
Adjustment type | Gas spring |
Logistics data | |
Harmonized System (HS) code | 85299097 |
