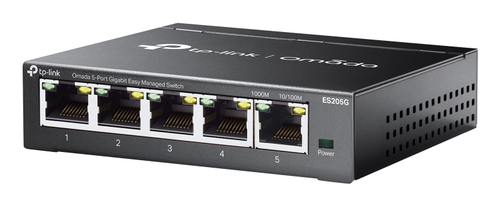

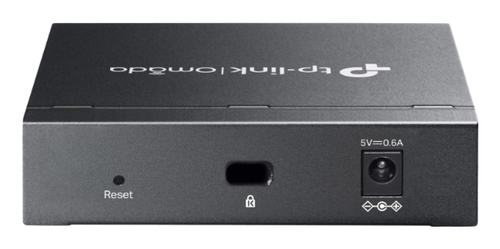

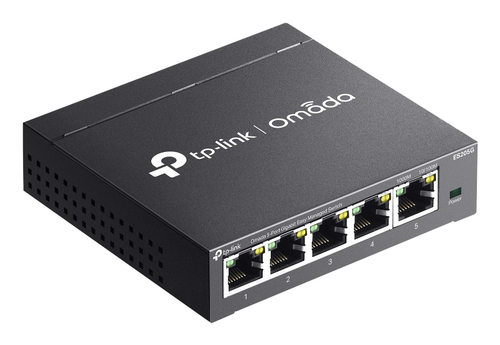

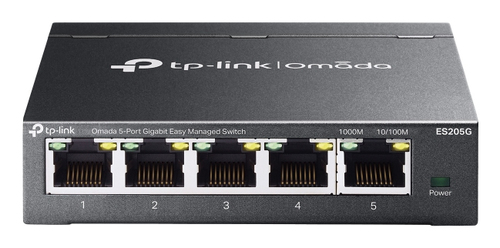

TP-Link Omada ES205G network switch

ES205G - 8885020620924

TP-Link Omada 5-Port Gigabit Easy Managed Switch

Brand: TP-Link
Product Family: Omada
Product code: ES205G
SKU: Y5ICYGDNJCGNA
EAN/GTIN: 8885020620924

5× 10/100/1000Mbps RJ45 ports
Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
Centralised Cloud Management via the web or the Omada app†
Automatic Loop Prevention, VLAN, and IGMP Snooping
Fanless design for silent operation
Durable metal casing and desktop/wall mounting design

€44.35 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

Product Info

5× 10/100/1000Mbps RJ-45, AUTO Negotiation/AUTO MDI/MDIX, 10 Gbps, 8K MAC, 5VDC / 0.6A

TP-Link Omada 5-Port Gigabit Easy Managed Switch. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 8000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3x. DC input voltage: 5 V. Wall mountable

Omada 5-Port Gigabit Easy Managed Switch

Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.

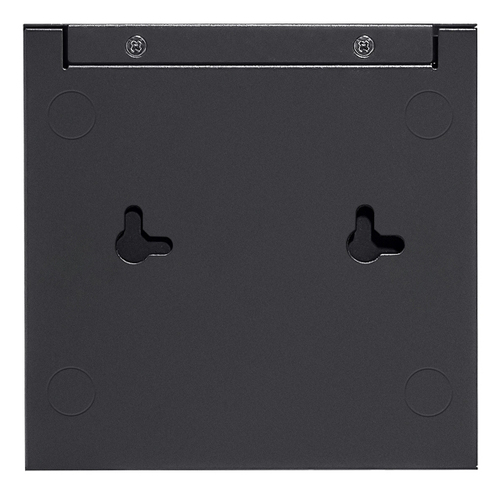

Compact and Durable Metal Casing, Featuring Desktop/Wall Mounting and a Fanless Design

Specifications

Management features

Switch type Managed

Quality of Service (QoS) support Yes

Cloud-managed Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity 5

Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)

Network

Networking standards IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3x

10G support No

Port mirroring Yes

Flow control support Yes

Link aggregation Yes

Auto MDI/MDI-X Yes

Auto-negotiation Yes

VLAN support Yes

Virtual LAN features MTU VLAN, Port-based VLAN, Tagged VLAN

Data transmission

Switching capacity 10 Gbit/s

Forwarding rate 7.4 Mpps

MAC address table 8000 entries

Store-and-forward Yes

Jumbo frames support Yes

Jumbo frames 15

Packet buffer memory 4 MB

Security

DHCP features DHCP client

IGMP snooping Yes

Loop protection Yes

Design

Product colour Black

Reset button Yes

LED indicators Yes

Wall mountable Yes

Performance

Fanless Yes

Power

Power source AC/DC

Power supply included Yes

DC input voltage 5 V

Operational conditions

Operating temperature (T-T) 0 - 40 °C

Storage temperature (T-T) -40 - 70 °C

Operating relative humidity (H-H) 10 - 90%

Storage relative humidity (H-H) 5 - 90%

Weight & dimensions

Width 100 mm

Depth 98 mm

Height 25 mm

Packaging content

User guide Yes

Packaging data

Package type Box

Certificates

Compliance certificates CE, Federal Communications Commission (FCC), RoHS
