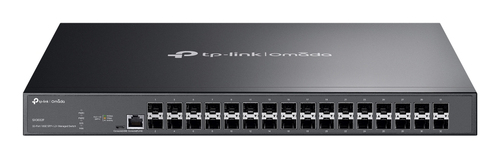

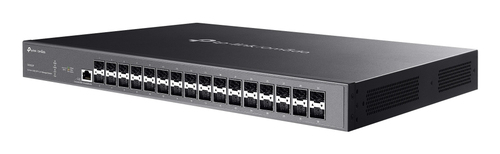

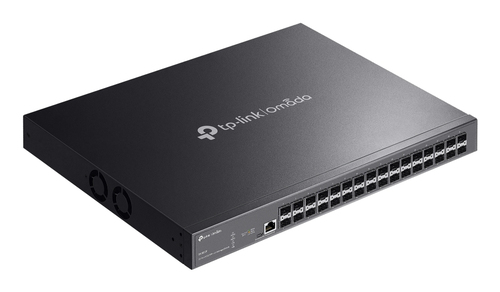

TP-Link Omada SX3032F network switch

SX3032F - 4895252504484

TP-Link Omada 32-Port 10GE SFP+ L2+ Managed Switch

Brand: TP-Link
Product Family: Omada
Product code: SX3032F
SKU: T6GQE9ZYYKSYI
EAN/GTIN: 4895252504484

32× 10 Gbps SFP+ slots
640 Gbps switching capacity

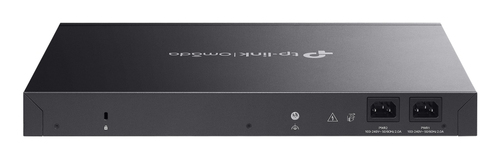

Two internal fixed power supply modules back each other up
Centralized cloud management via the web or the Omada app†
Standalone management via web, CLI, SNMP, and RMON
Static Routing helps route internal traffic for higher efficiency
VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
ERPS supports rapid protection and recovery in a ring topology
Durable metal casing and rack-mountable design

€847.16 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

Product Info

L2+, 32× 10-Gbit/s-SFP+, 640 Gbit/s, 32 K MAC, 9 KB Jumbo, 440 x 330 x 44 mm

TP-Link Omada 32-Port 10GE SFP+ L2+ Managed Switch. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports quantity: 1, Installed SFP+ modules quantity: 32, Console port: RJ-45/Micro-USB. MAC address table: 32000 entries, Switching capacity: 640 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ah, IEEE 802.3x. Rack mounting

Omada 32-Port 10GE SFP+ L2+ Managed Switch

Easily Build a Whole 10G Multi-gigabit Network

Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.

Specifications

Management features

Switch type Managed

Switch layer L2+

Quality of Service (QoS) support Yes

Cloud-managed Yes

ARP inspection Yes

Configuring Location Settings (CLI) Yes

MIB support • MIB II (RFC1213) • Interface MIB (RFC2233) • Ethernet Interface MIB (RFC1643) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • RMON MIB (RFC2819) • RMON2 MIB (RFC2021) • Radius Accounting Client MIB (RFC2620) • Radius Authentication Client MIB (RFC2618) • Remote Ping, Traceroute MIB (RFC2925) • Support TP-Link private MIB

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity 1

Installed SFP+ modules quantity 32

Console port RJ-45/Micro-USB

Network

Networking standards IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ah, IEEE 802.3x

Port mirroring Yes

Flow control support Yes

Link aggregation Yes

Broadcast storm control Yes

Rate limiting Yes

Spanning tree protocol Yes

IPv4 routes 48

IPv6 routes 48

VLAN support Yes

Virtual LAN features Protocol-based VLAN, SSID-based VLAN assignment, Tagged VLAN, VLAN mapping, Voice VLAN

Number of VLANs 30

Data transmission

Switching capacity 640 Gbit/s

Forwarding rate 240 Mpps

MAC address table 32000 entries

Number of queues 8

Static route Yes

Number of static routes 128

Number of IP interfaces 128

Jumbo frames support Yes

Jumbo frames 9

Packet buffer memory 24 MB

Security

DHCP features DHCP relay, DHCP server, DHCPv6 snooping

Access Control List (ACL) Yes

IGMP snooping Yes

Static port security Yes

SSH/SSL support Yes

Loop protection Yes

IP-MAC-Port binding Yes

Authentication MAC-based authentication, Port-based authentication

Password protection Yes

Authentication type AAA, TACACS+

Queue scheduling algorithms Priority queuing (PQ), SP, Weighted Round Robin (WRR)

Multicast features

Multicast support Yes

Number of multicast groups filtered 4000

Multicast Listener Discovery (MLD) snooping Yes

Protocols

GARP VLAN Registration Protocol (GVRP) Yes

IPv4 & IPv6 features Dual stack IPv4/IPv6, ICMPv6, IPv6 TFTP

IP Source Guard (IPSG) Yes

Design

Rack mounting Yes

Product colour Black

Redundant fans support Yes

Number of fans 2 fan(s)

Power

Power source AC

Power supply included Yes

AC input voltage 100 - 240 V

AC input frequency 50/60 Hz

Power consumption (max) 49.4 W

Operational conditions

Operating temperature (T-T) -5 - 45 °C

Storage temperature (T-T) 40 - 70 °C

Operating relative humidity (H-H) 10 - 90%

Storage relative humidity (H-H) 5 - 90%

Weight & dimensions

Width 440 mm

Depth 330 mm

Height 44 mm

Packaging content

Cables included Power

Quick start guide Yes

Certificates

Compliance certificates CE, Federal Communications Commission (FCC), RoHS
