NETGEAR MS308 Unmanaged 2.5G Ethernet (100/1000/2500) Black
- Brand
- Netgear
- Product code
- MS308-100EUS
- SKU
- 5Q3BA203ZYRMU
- EAN/GTIN
- 606449170788
- Unmanaged
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 8
- MAC address table: 16000 entries Switching capacity: 40 Gbit/s
- DC Power supply included
Product Info

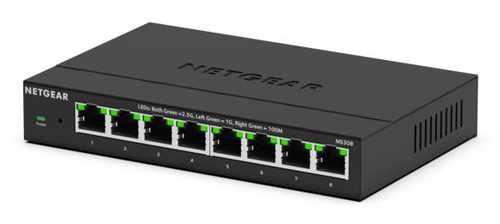

NETGEAR 8-Port 2.5G Multi-Gigabit Ethernet Unmanaged Switch
The NETGEAR 8-port 2.5G Multi-Gigabit Unmanaged Switch, MS308, offers businesses an affordable solution to upgrade their networks to multi-gig speeds. Featuring eight (8) 2.5G ports encased in durable metal, the MS308 Multi-Gigabit Ethernet Switch is designed for versatility—it can be placed on a desk, mounted on a wall, or under a table using the included kit.
RELIABLE PERFORMANCE
Superior network performance at non-blocking rate delivers true Multi-Gig speed with no compromise
ENERGY EFFICIENT
Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected
PLUG-AND-PLAY
No software to install. No configuration needed. Zero maintenance required
SILENT OPERATION
The fanless design means zero added noise wherever its located, making it ideal for noise-sensitive environments
VERSATILE MOUNTING OPTIONS
Install your switch on your desktop, or mount it to your wall with the hardware provided in the box.
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Network | |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Full duplex | Yes |
| Half duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Head-of-line (HOL) blocking | Yes |
| Ethernet LAN data rates | 100,1000,2500 Mbit/s |
| Cable length detection | Yes |
| Data transmission | |
| Switching capacity | 40 Gbit/s |
| Forwarding rate | 3.72 Mpps |
| MAC address table | 16000 entries |
| Latency (1 Gbps) | 4.9 µs |
| Jumbo frames support | Yes |
| Jumbo frames | 12288 |
| Packet buffer memory | 1 MB |
| Design | |
| Rack mounting | No |
| Stackable | No |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Wall mountable | Yes |
| Number of fans | 0 fan(s) |
| Performance | |
| Noise level | 0 dB |
| Fanless | Yes |
| Mean time between failures (MTBF) | 3309911 h |
| Power | |
| Power source | DC |
| Power supply included | Yes |
| DC input voltage | 12 V |
| Input current | 1 A |
| Input voltage | 12 V |
| Power consumption (max) | 7.98 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Other features | |
| Warranty period | 3 year(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Weight & dimensions | |
| Width | 158 mm |
| Depth | 101 mm |
| Height | 27 mm |
| Weight | 430 g |
| Certificates | |
| Compliance certificates | CCC, Low Voltage Directive (LVD) |
