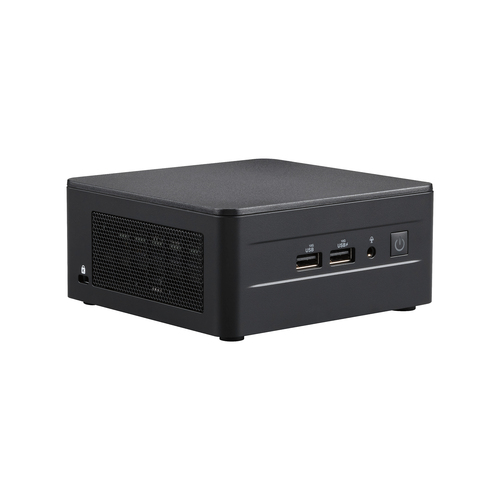

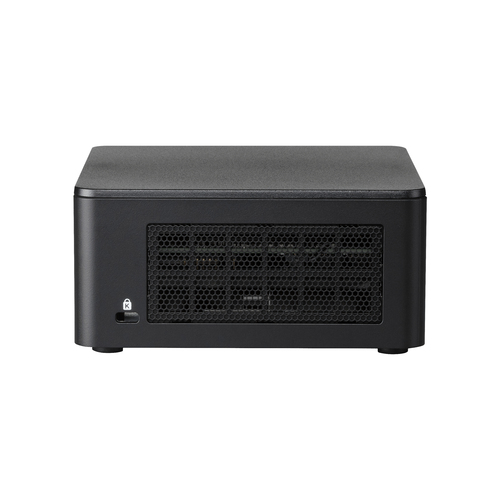

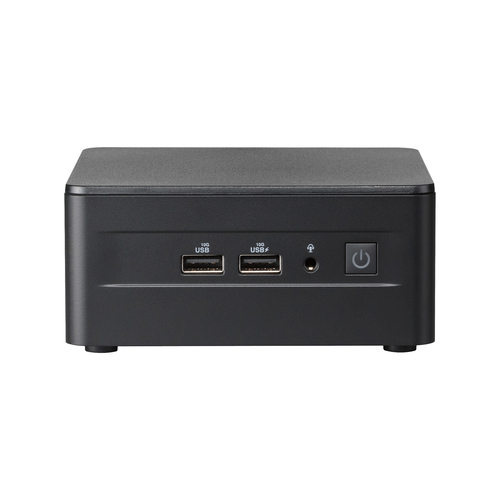

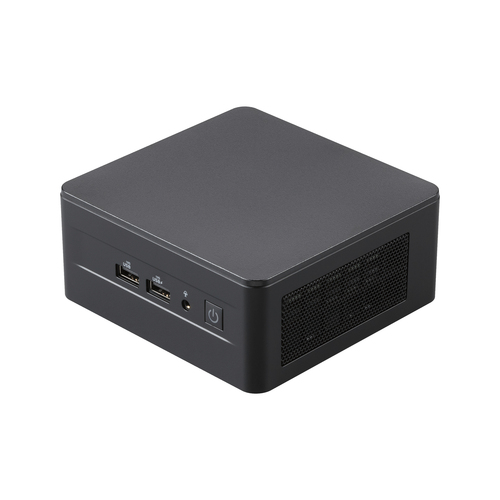

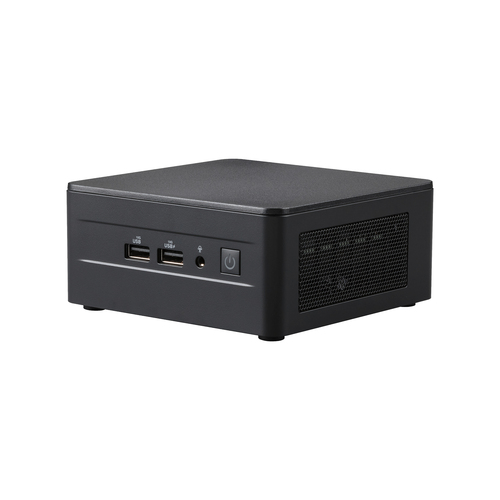

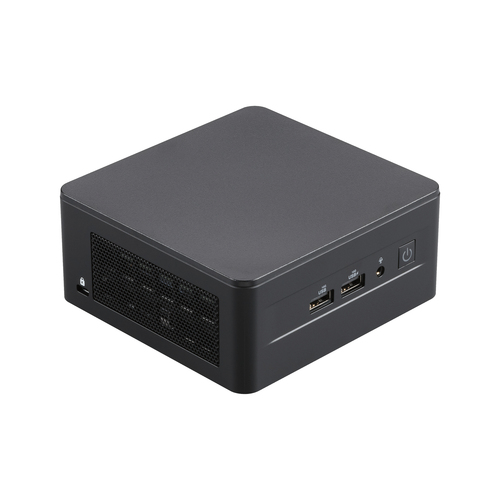

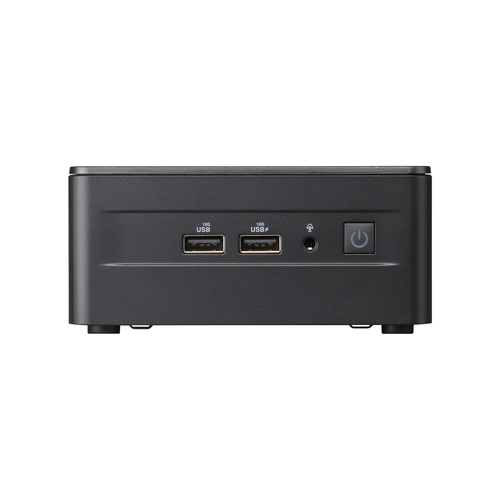

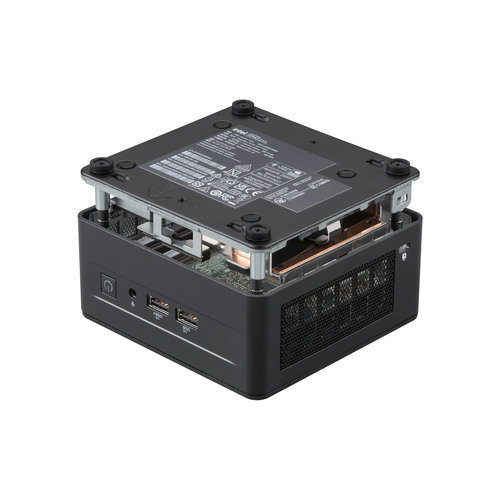

ASUS NUC 13 RNUC13L3HV500000I UCFF Black i5-1350P
- Brand
- Asus
- Product Family
- NUC 13
- Product series
- Pro Kit
- Product code
- 90AR00B1-M00010
- SKU
- S8LT1C9TDKQ88
- 13th Generation Intel® Core™ i7/i5/i3 with integrated Intel® Iris® Xe Graphics or Intel® UHD Graphics, and Intel vPro® Technology for selected SKUs
- 14 Processor Cores (6P+8E), 20 threads, 24MB Smart Cache, 35W TDP
- For professional-grade performance, the 13th Gen Intel Core™ i7-1370P processor features 14 cores (6P+8E), 20 threads, 24MB Intel® Smart Cache, and 35W TDP
- For Business, the fast memory up to 64GB dual-channel DDR4-3200 SODIMMs
- Wired and wireless connections are lightning fast with up to a 2.5Gbps Intel® Ethernet port and Intel® Wi-Fi 6E (Gig+)
- Dual HDMI 2.1and Thunderbolt™4 ports give businesses flexibility to connect up to 4K extended displays
- Qualified for 24x7 operation
Product Info
Smaller, Faster, Better, AI Ready
The ASUS NUC brand represents a commitment to technological excellence, prioritizing innovative product design, to push the boundaries of performance and user experience.
Developed through a partnership between ASUS and Intel, the ASUS NUC product lines anchor on delivering uncompromised performance in the smallest form factors, backed by industry best quality and reliability, innovative modular designs, extended lifespan options, smart cooling solutions, and advanced AI capabilities. The versatility of the products shines through an array of configurations catering to diverse user needs, from developers, to power users, to casual home use. Positioned as the preferred choice for a variety of business applications, vertical industries, and everyday users, the ASUS NUC combines exceptional performance with essential features, aiming to shape the next generation of PC experiences.
With a focus on supporting diverse businesses and enhancing PC applications, the ASUS NUC aspires to deliver on the brand promise of delivering the Next Unit of Compute (NUC) and make a lasting impact in the ever-evolving tech landscape.
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 13th gen Intel® Core™ i5 |
| Processor model | i5-1350P |
| Processor cores | 12 |
| Processor threads | 16 |
| Processor boost frequency | 4.7 GHz |
| Performance cores | 4 |
| Efficient cores | 8 |
| Performance-core Max Turbo Frequency | 4.7 GHz |
| Efficient-core Max Turbo Frequency | 3.5 GHz |
| Built-in processor | Yes |
| Processor cache | 12 MB |
| Memory | |
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 64 GB |
| Supported memory clock speeds | 3200 MHz |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Memory voltage | 1.2 V |
| ECC | No |
| Storage | |
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | M.2,2.5 |
| SSD form factor | M.2 |
| NVMe | Yes |
| Graphics | |
| On-board graphics card | Yes |
| Graphics card family | Intel |
| Audio | |
| Built-in speaker(s) | No |
| Network | |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |

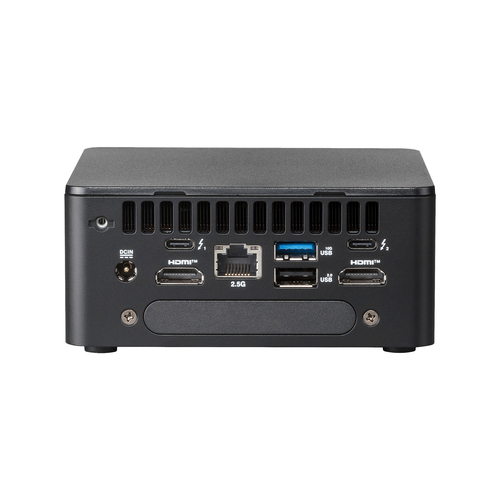

| Ports & interfaces | |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |
| Combo headphone/mic port | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Thunderbolt 4 ports quantity | 2 |
| DC-in jack | Yes |
| Expansion slots | |
| PCI Express slots version | 4.0 |
| Design | |
| Chassis type | UCFF |
| Product colour | Black |
| Cooling type | Active |
| On/off switch | Yes |
| LED indicators | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| VESA mounting | Yes |
| Product type | Mini PC barebone |
| Performance | |
| Motherboard form factor | UCFF |
| Audio chip | Realtek ALC269 |
| Software | |
| Windows operating systems supported | Windows 11 Home, Windows 11 Pro, Windows 10 IoT Enterprise |
| Linux operating systems supported | Yes |
| Operating system installed | No |
| Power | |
| Power supply type | External AC adapter |
| Power supply | 120 W |
| Weight & dimensions | |
| Width | 117 mm |
| Depth | 112 mm |
| Height | 54 mm |
| Weight | 610 g |
