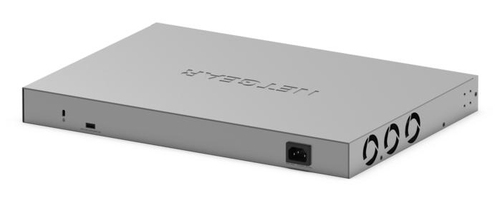

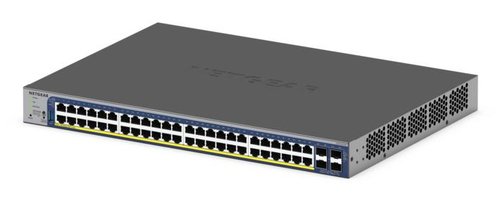

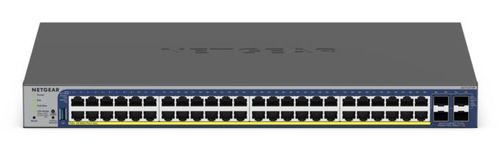

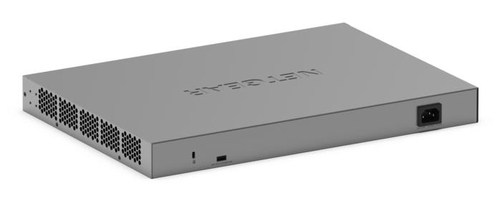

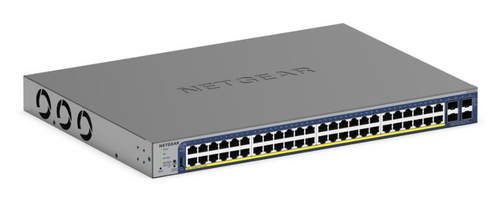

NETGEAR GS752TXP

GS752TXP-300EUS - 606449171181

NETGEAR 52-Port PoE Gigabit/10G Stackable Smart Switch (GS752TXP)

Brand: Netgear
Product code: GS752TXP-300EUS
SKU: TLVC6QZOCN0HY
EAN/GTIN: 606449171181

Managed L2/L3/L4
Basic switching RJ-45 Ethernet ports quantity: 48
10G support
MAC address table: 16000 entries
Access Control List (ACL)
Rack mounting Stackable
AC Power supply included Power over Ethernet (PoE)

€845.69 (Inc. VAT)

(Delivery 2-4 working days)

Product Info

48 x GE ports, 4 x 10G ports, 440 x 310 x 43.2 mm, 5.03 kg

NETGEAR 52-Port PoE Gigabit/10G Stackable Smart Switch (GS752TXP). Switch type: Managed, Switch layer: L2/L3/L4. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 48. Full duplex. MAC address table: 16000 entries. Networking standards: IEEE 802.1ab, IEEE 802.1as, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE.... Power over Ethernet (PoE). Rack mounting

48-Port Gigabit Ethernet PoE+ Smart Switch w/ optional Remote/Cloud Management and 4 SFP+ Ports (380W)

Standalone Smart Switch designed for converged networks, big or small. 1-Year Insight subscription included.

Specifications

Management features

Switch type Managed

Switch layer L2/L3/L4

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity 48

Basic switching RJ-45 Ethernet ports type 10G Ethernet (100/1000/10000)

SFP+ module slots quantity 2

Network

Networking standards IEEE 802.1ab, IEEE 802.1as, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x

10G support Yes

Port mirroring Yes

Full duplex Yes

Flow control support Yes

Link aggregation Yes

Broadcast storm control Yes

Rate limiting Yes

Spanning tree protocol Yes

VLAN support Yes

Virtual LAN features Voice VLAN

Data transmission

MAC address table 16000 entries

Latency (10 Gbps) 4.107 µs

Static route Yes

Number of static routes 32

Packet buffer memory 16 MB

Security

DHCP features DHCP client

Access Control List (ACL) Yes

IGMP snooping Yes

MAC address filtering Yes

SSH/SSL support Yes

Design

Rack mounting Yes

Stackable Yes

Product colour Black

Performance

Built-in processor Yes

Flash memory 64 MB

Noise level 36.6 dB

Mean time between failures (MTBF) 1296949 h

Power

Power source AC

Power supply included Yes

Power consumption (max) 51 W

Power over Ethernet (PoE)

Power over Ethernet (PoE) Yes

Power over Ethernet plus (PoE+) ports quantity 48

Total Power over Ethernet (PoE) budget 380 W

Operational conditions

Operating temperature (T-T) 0 - 50 °C

Storage temperature (T-T) -20 - 70 °C

Operating relative humidity (H-H) 0 - 95%

Storage relative humidity (H-H) 0 - 95%

Operating altitude 0 - 3000 m

Non-operating altitude 0 - 3000 m

Heat dissipation 2944.6 BTU/h

Weight & dimensions

Width 440 mm

Depth 345 mm

Height 43 mm

Weight 5.54 kg
