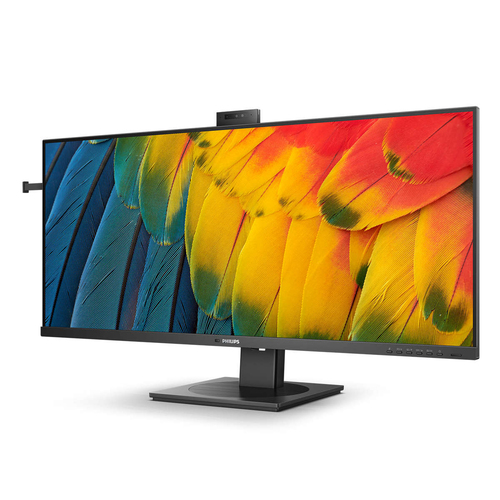

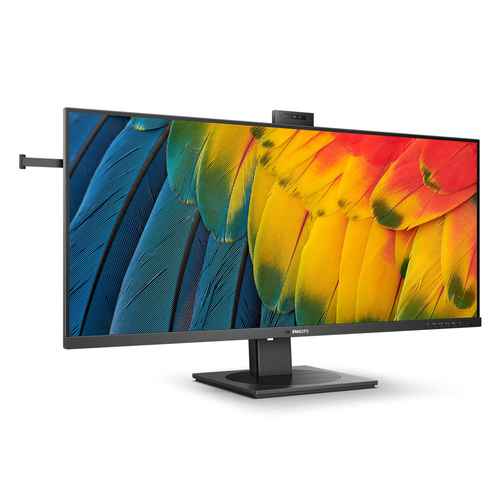

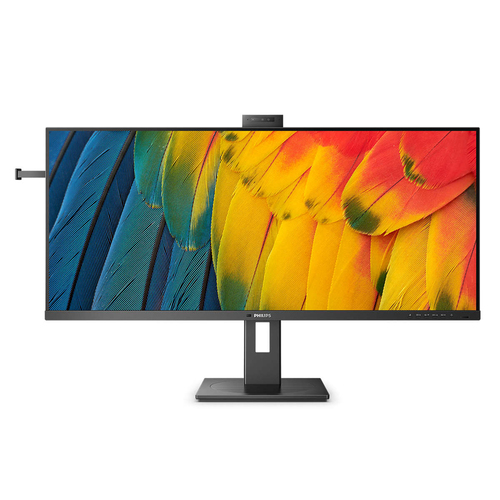

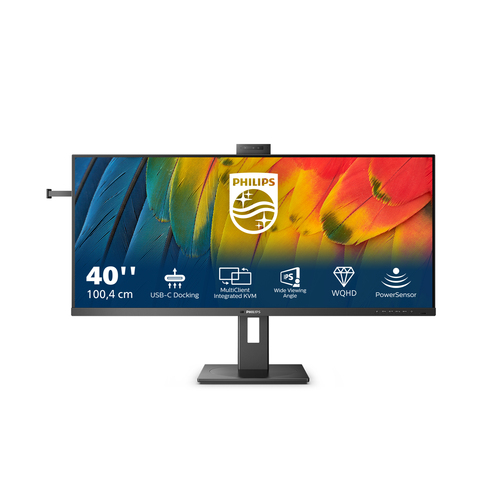

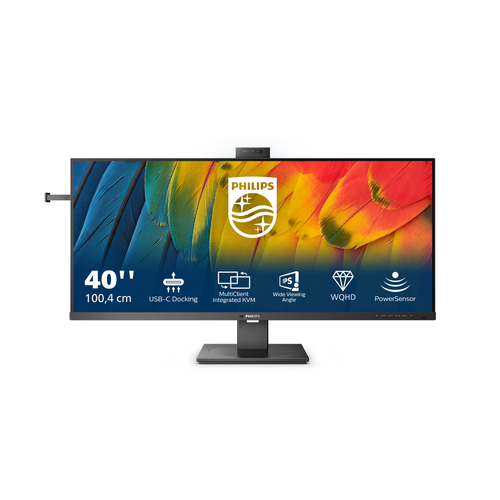

Philips 5000 series 40B1U5601H/00 computer monitor 101.6 cm (40") 3440 x 1440 pixels Wide Quad HD LCD Black
- Brand
- Philips
- Product Family
- 5000 series
- Product code
- 40B1U5601H/00
- SKU
- BMXX31CSZEUOB
- EAN/GTIN
- 8712581797492
- 101.6 cm (40") LCD IPS
- Wide Quad HD 3440 x 1440 pixels 21:9
- 100 Hz 4 ms 300 cd/m² 1200:1
- Flicker-free technology
- G 41 kWh 40.2 W
Product Info
This USB-C monitor is for video watching, data transfer and power delivery. The integrated 5MP webcam delivers sharp images, and noise cancelling mic let people hear you fine. Pop-up webcam for quick access and strong security.
Description

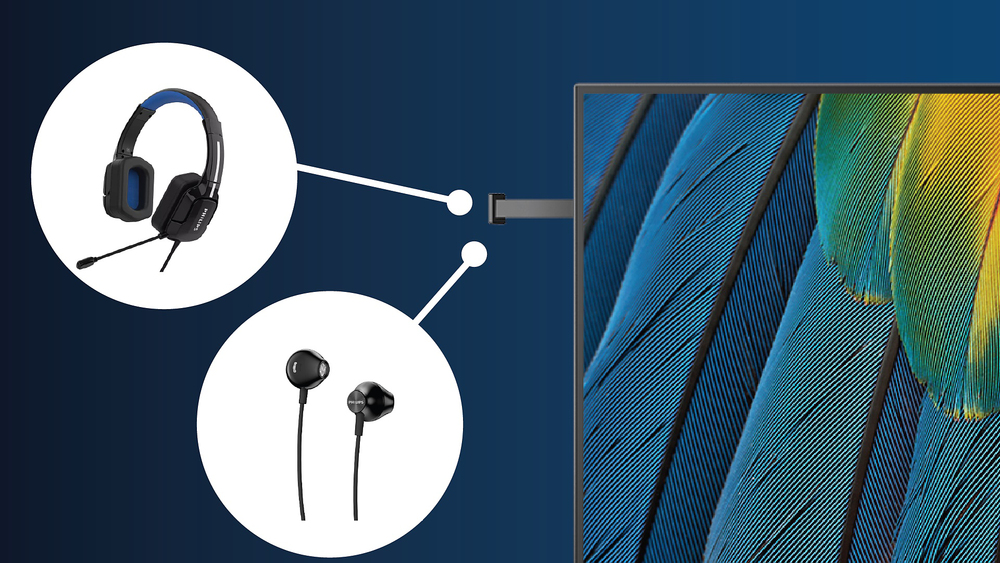

Earphone hook: Accessary within reach
The unique design of headphone hook on the side of the Philips monitor brings the tidiness and cable management of your working station to the next level. The easy access of it lets you put aside your headphone easily, making sure that all the accessary you need is within reach.

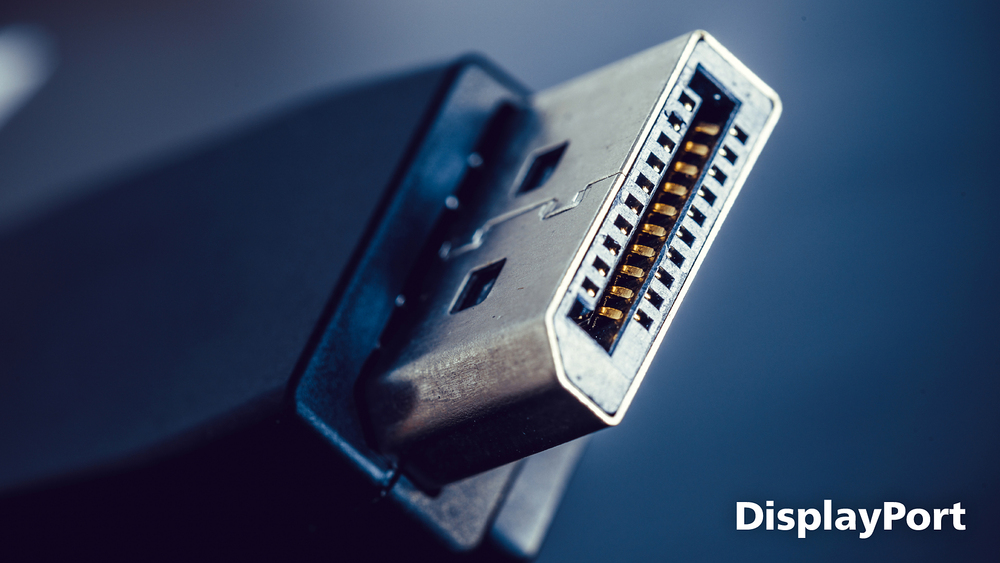

DisplayPort-out for connecting additional displays
With DisplayPort-out you can connect multiple high resolution displays with just one cable from your first display to the PC. The ability to daisy chain multiple displays enables you to create a clean desktop without the hassle of too many wires all over.

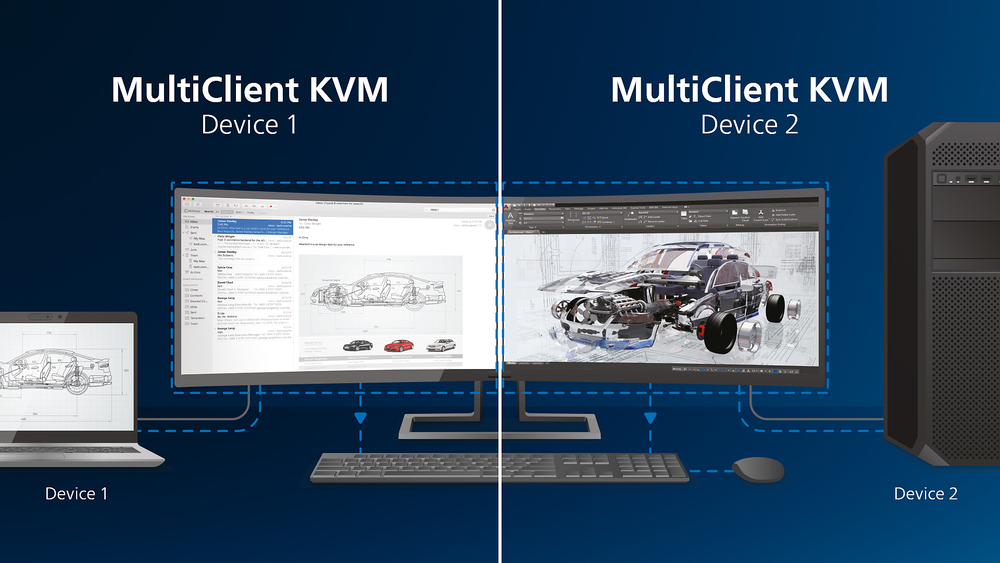

Built-in KVM switch to easily switch between sources
With MultiClient Integrated KVM switch, you can control two separate PCs with one monitor-keyboard-mouse set up. A convenient button allows you to quickly switch between sources. Handy with set-ups that require dual PC computing power or sharing one large monitor to show two different PCs.
Collaboration-ready webcam with noise-cancelling mic.
This Philips monitor comes with a built-in 5MP webcam, noise-cancelling microphone, and speakers, making it perfect for working from home and collaborating remotely. It is equipped with advanced sensors that work seamlessly with Windows Hello facial recognition, allowing you to log into your Windows devices in less than 2 seconds. For added privacy, a physical camera switch lets you disable the webcam when not in use. The noise-cancelling microphone and dual 5-watt integrated speakers ensure clear communication.
MultiView enables simultaneous dual connection and view
With the ultra-high resolution Philips MultiView display you can now experience a world of connectivity. MultiView enables active dual connect and view so that you can work with multiple devices like a PC and notebook simultaneously, for complex multi-tasking.
High Dynamic Range (HDR) for more lifelike colorful visuals
High Dynamic Range delivers a dramatically different visual experience. With astonishing brightness, incomparable contrast and captivating color, images come to life with much greater brightness while also featuring much deeper, more nuanced darks. It renders a fuller palette of rich new colors never before seen on display, giving you a visual experience that engages your senses and inspires emotions.
PowerSensor saves up to 80% energy costs
PowerSensor is a built-in 'people sensor' that transmits and receives harmless infrared signals to determine if user is present and automatically reduces monitor brightness when user steps away from the desk, cutting energy costs by up to 80 percent and prolonging monitor life

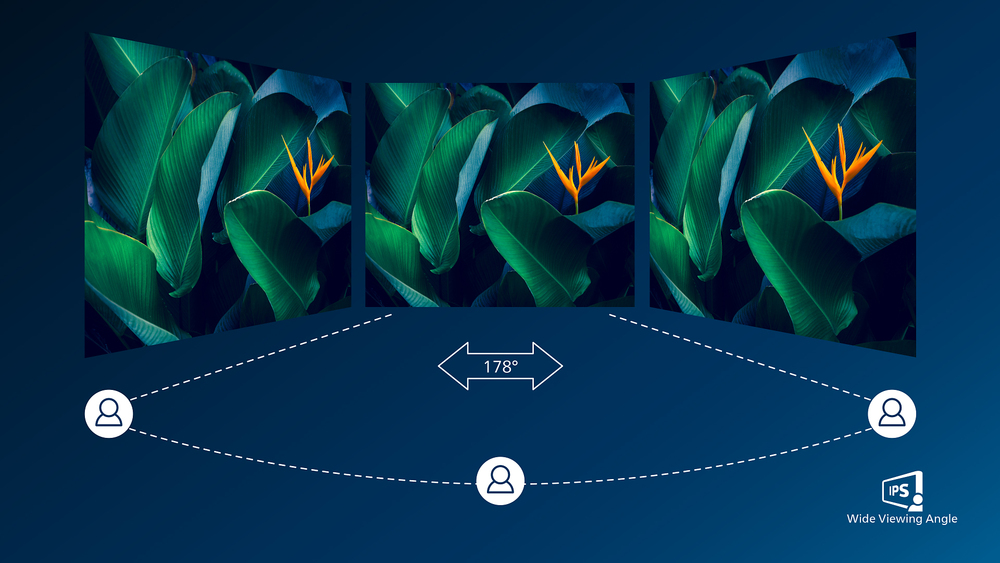

IPS LED wide view technology for image and color accuracy
IPS displays use an advanced technology which gives you extra wide viewing angles of 178/178 degree, making it possible to view the display from almost any angle. Unlike standard TN panels, IPS displays gives you remarkably crisp images with vivid colors, making it ideal not only for Photos, movies and web browsing, but also for professional applications which demand color accuracy and consistent brightness at all times.

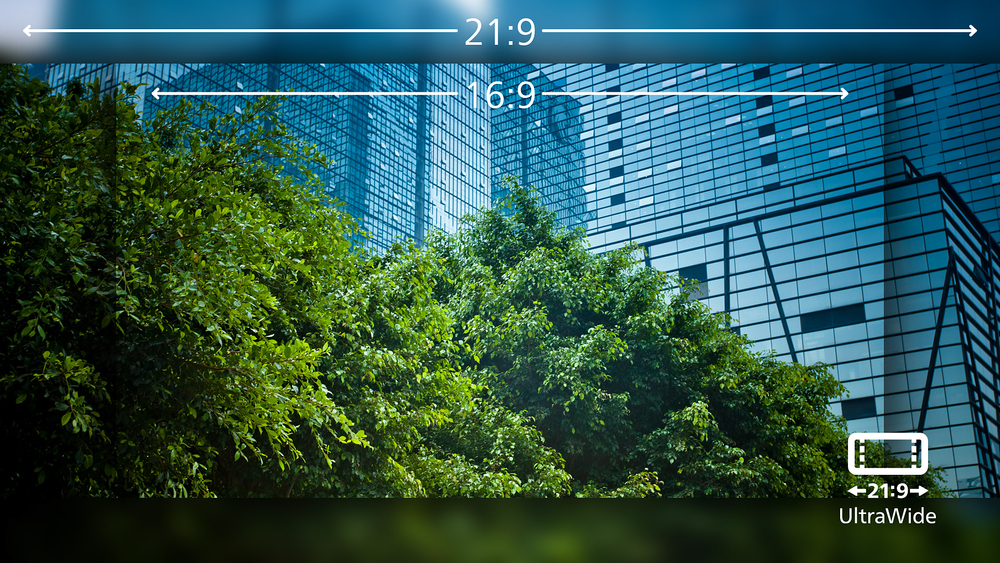

CrystalClear images with UltraWide QHD 3440 x 1440 pixels
These Philips screens deliver CrystalClear, UltraWide Quad HD 3440 x 1440 pixel images. Utilizing high performance panels with high-density pixel count, 178/178 wide viewing angles, these new displays will make your images and graphics come alive. The UltraWide 21:9 format enables more productivity with more room for side-by-side comparisons and more viewable spreadsheet columns. Whether you are demanding professional requiring extremely detailed information for CAD-CAM solutions, or a financial wizard working on huge spreadsheets, Philips displays delivers CrystalClear images.

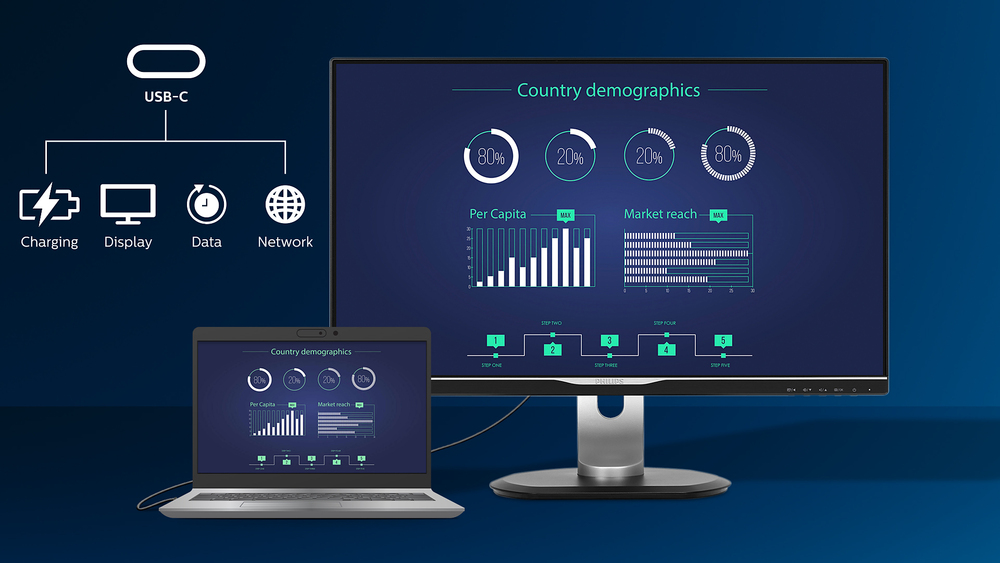

RJ-45 to USB-C gives easy network connection with security
Simplify all peripherals from monitor to PC using one-cable-docking USB Type-C connector, includes networking, high resolution video output from PC to monitor, and surfing on Internet without an additional network cable, even without LAN port on your notebook. RJ45 connection through USB-C offers a fast and secure connection when needed. Getting the fastest data speeds allows you to transfer data from a HDD to your PC faster than ever. Additionally, USB-C with power delivery can even enable you to power and charge your notebook from the monitor, eliminating the need for extra power cables.
Secure sign-in with pop-up webcam
Philips' innovative and secure webcam pops up when you need it and securely tucks back into the monitor when you are not using it. The webcam is also equipped with advanced sensors for Windows Hello facial recognition, which conveniently logs you into your Windows devices in less than 2 seconds, 3 times faster than a password.
| Display | |
|---|---|
| Display diagonal | 101.6 cm (40") |
| Display resolution | 3440 x 1440 pixels |
| HD type | Wide Quad HD |
| Native aspect ratio | 21:9 |
| Display technology | LCD |
| Panel type | IPS |
| Backlight type | W-LED |
| Touchscreen | No |
| Display brightness (typical) | 300 cd/m² |
| Response time | 4 ms |
| Anti-glare screen | Yes |
| Screen shape | Flat |
| Contrast ratio (typical) | 1200:1 |
| Contrast ratio (dynamic) | 50000000:1 |
| Dynamic contrast ratio marketing name | SmartContrast |
| Maximum refresh rate | 100 Hz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.26925 x 0.26925 mm |
| Pixel density | 94 ppi |
| Horizontal scan range | 30 - 160 kHz |
| Vertical scan range | 48 - 100 Hz |
| Viewable size, horizontal | 92.6 cm |
| Viewable size, vertical | 38.8 cm |
| Digital horizontal frequency | 30 - 190 kHz |
| Digital vertical frequency | 48 - 120 Hz |
| Display diagonal (metric) | 100.4 cm |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10) |
| DDC/CI | Yes |
| Haze rate | 25% |
| Surface hardness | 3H |
| Colour depth | 8 bit |
| Colour gamut standard | sRGB |
| sRGB coverage (typical) | 121% |
| NTSC coverage (typical) | 102% |
| Display sRGB | Yes |
| Performance | |
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Fast charging | Yes |
| Fast charging technology | Power Delivery |
| Component video sync | Separate sync |
| Flicker-free technology | Yes |
| Low Blue Light technology | Yes |
| Multimedia | |
| Number of speakers | 2 |
| RMS rated power | 10 W |
| Built-in speaker(s) | Yes |
| Megapixel (approx.) | 5 MP |
| Built-in microphone | Yes |
| Built-in camera | Yes |
| Design | |
| Market positioning | Business |
| Product colour | Black |
| Front bezel colour | Black |
| Feet colour | Black |
| Ports & interfaces | |
| Built-in USB hub | Yes |
| USB hub version | 3.2 Gen 2 (3.1 Gen 2) |
| USB upstream port type | USB Type-C |
| Number of upstream ports | 2 |
| Number of USB Type-C upstream ports quantity | 2 |
| USB Type-A downstream ports quantity | 4 |
| USB Type-C downstream ports quantity | 1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 100 W |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Audio output | Yes |
| HDCP | Yes |
| HDCP version | 1.4/2.2 |
| DisplayPort output | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ergonomics | |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Height adjustment | Yes |
| Adjustable height (max) | 15 cm |
| Swivelling | Yes |
| Swivel angle range | -180 - 180° |
| Tilt angle range | -5 - 30° |
| Picture-in-Picture | Yes |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian |
| Plug and Play | Yes |
| LED indicators | Operation, Stand-by |
| Power | |
| Energy efficiency class (SDR) | G |
| Energy efficiency class (HDR) | G |
| Energy consumption (SDR) per 1000 hours | 41 kWh |
| Energy consumption (HDR) per 1000 hours | 60 kWh |
| Power consumption (typical) | 40.2 W |
| Power consumption (standby) | 0.4 W |
| Power consumption (PowerSave) | 31.4 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power supply type | Internal |
| Energy efficiency scale | A to G |
| European Product Registry for Energy Labelling (EPREL) code | 1389949 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Operating altitude | 0 - 3658 m |
| Non-operating altitude | 3658 - 12192 m |
| Weight & dimensions | |
| Width (with stand) | 944 mm |
| Depth (with stand) | 280 mm |
| Height (with stand) | 628 mm |
| Weight (with stand) | 14.1 kg |
| Width (without stand) | 944 mm |
| Depth (without stand) | 54 mm |
| Height (without stand) | 419 mm |
| Weight (without stand) | 9.9 kg |
| Packaging data | |
| Package width | 1070 mm |
| Package depth | 226 mm |
| Package height | 507 mm |
| Package weight | 17.8 kg |
| Packaging content | |
| Stand included | Yes |
| Cables included | HDMI, DisplayPort, USB Type-C, AC |
| Manual | Yes |
| Bundled software | SmartControl |
| Sustainability | |
| Sustainability compliance | Yes |
| Sustainability certificates | ENERGY STAR |
| Doesn't contain | Mercury, PVC/BFR |
| Other features | |
| HBR3 support | Yes |
| Compatible operating systems | Mac OS X Windows 11 / 10 / 8.1 / 8 / 7 |
| Picture-by-Picture (PbP) | Yes |
| Exterior finish type | Textured |
| Picture enhancement | SmartImage |
| Recyclable packaging material | 100% |
| Regulatory Approvals | CB; CE Mark; FCC Class B; ICES-003; CU-EAC; EAEU RoHS; SEMKO; TUV Ergo; TUV/GS; cETLus |
| Delta E | 2 |
| Light sensor | Yes |
| EasyRead mode | Yes |
| LowBlue mode | Yes |
| Philips SmartUniformity | 93 - 105% |
| Compliance certificates | RoHS |
| Mean time between failures (MTBF) | 70000 h |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wake-on-LAN | Yes |
| Recycling data | |
| Post-consumer recycled plastic | 85% |
